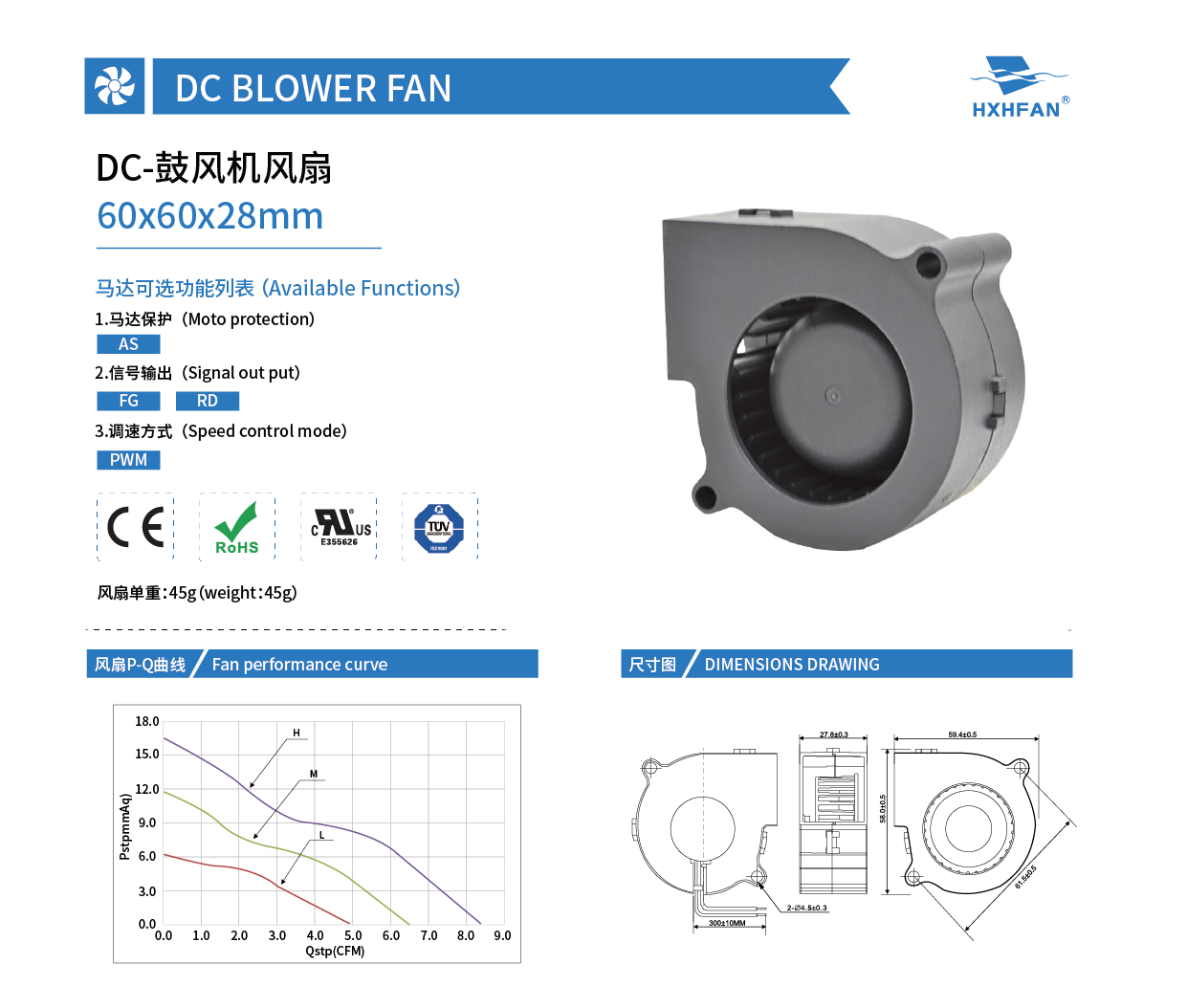

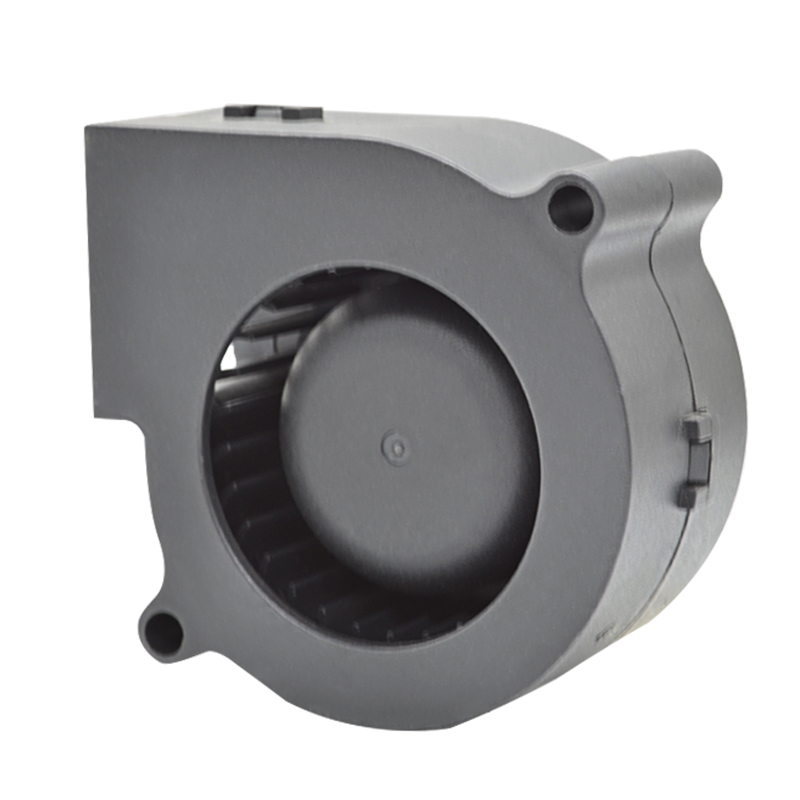

60×60×28mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HBS0612HB		Sleeve	12	5.0	0.20	2.40	5000	0.24	8.41	16.58	0.65	43.6
HBS0612MB				5.0	0.12	1.44	4000	0.18	6.53	11.75	0.46	38.0
HBS0612LB				5.0	0.08	0.96	3000	0.14	4.98	6.23	0.25	31.2
HBB0612HB		Ball		5.0	0.20	2.40	5000	0.24	8.41	16.58	0.65	43.6
HBB0612MB				5.0	0.12	1.44	4000	0.18	6.53	11.75	0.46	38.0
HBB0612LB				5.0	0.08	0.96	3000	0.14	4.98	6.23	0.25	31.2
HBS0624HB		Sleeve	24	12.0	0.12	2.88	5000	0.24	8.41	16.58	0.65	43.6
HBS0624MB				12.0	0.08	1.92	4000	0.18	6.53	11.75	0.46	38.0
HBS0624LB				12.0	0.05	1.20	3000	0.14	4.98	6.23	0.25	31.2
HBB0624HB		Ball		12.0	0.12	2.88	5000	0.24	8.41	16.58	0.65	43.6
HBB0624MB				12.0	0.08	1.92	4000	0.18	6.53	11.75	0.46	38.0
HBB0624LB				12.0	0.05	1.20	3000	0.14	4.98	6.23	0.25	31.2
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

60x60x28mm

DC-轴流风扇
