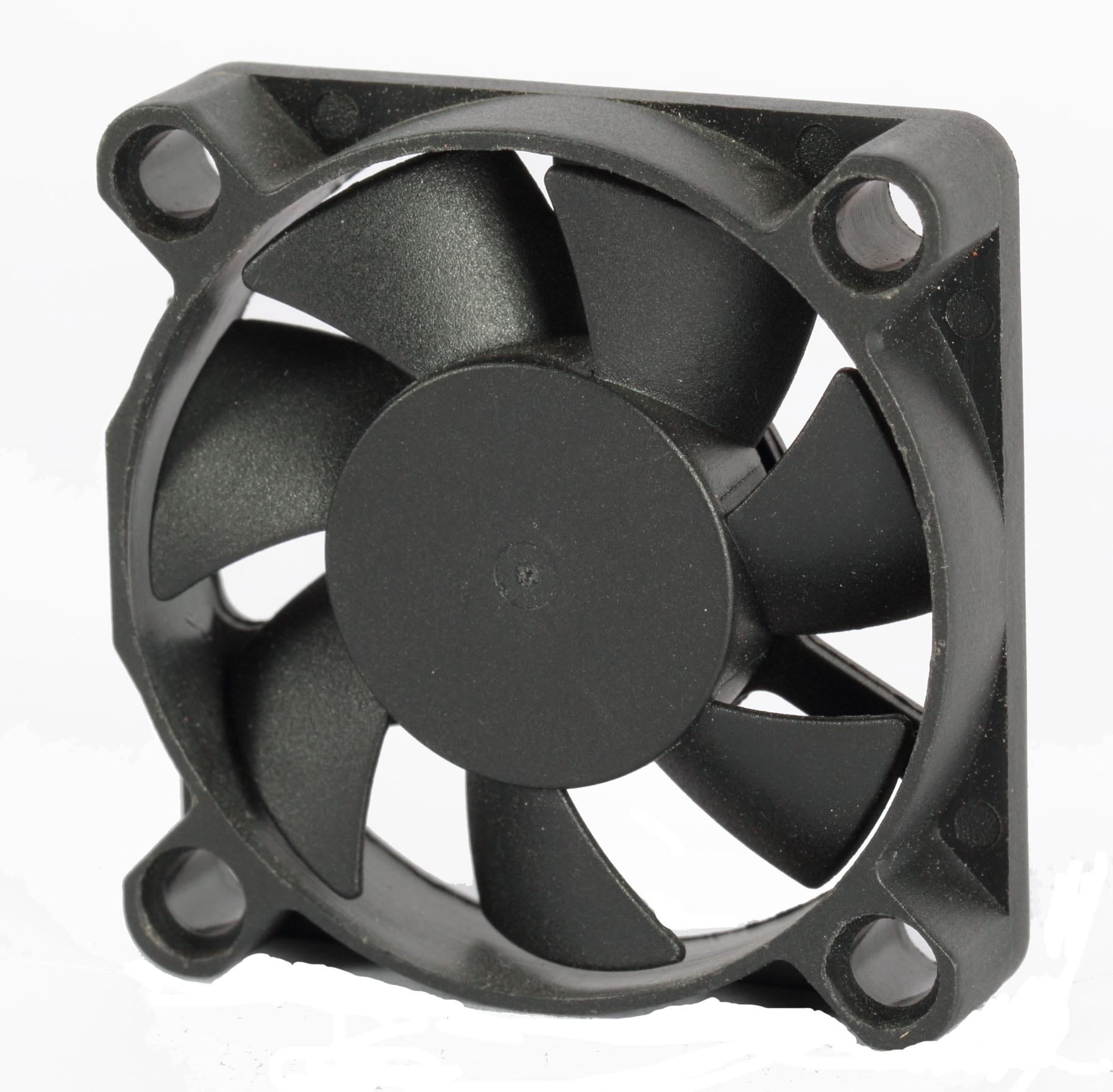

45×45×10mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDS4505HG		Sleeve	5	4.0	0.23	1.15	6000	0.21	7.25	3.41	0.13	30.6
HDS4505MG				4.0	0.20	1.00	5000	0.17	6.10	2.44	0.10	26.3
HDS4505LG				4.0	0.15	0.75	4000	0.12	4.34	1.45	0.06	21.0
HDB4505HG		Ball		4.0	0.23	1.15	6000	0.21	7.25	3.41	0.13	30.6
HDB4505MG				4.0	0.20	1.00	5000	0.17	6.10	2.44	0.10	26.3
HDB4505LG				4.0	0.15	0.75	4000	0.12	4.34	1.45	0.06	21.0
HDS4512HG		Sleeve	12	7.0	0.10	1.20	6000	0.21	7.25	3.41	0.13	30.6
HDS4512MG				7.0	0.09	1.08	5000	0.17	6.10	2.44	0.10	26.3
HDS4512LG				9.0	0.08	0.96	4000	0.12	4.34	1.45	0.06	21.0
HDB4512HG		Ball		7.0	0.10	1.20	6000	0.21	7.25	3.41	0.13	30.6
HDB4512MG				7.0	0.09	1.08	5000	0.17	6.10	2.44	0.10	26.3
HDB4512LG				9.0	0.08	0.96	4000	0.12	4.34	1.45	0.06	21.0
HDS4524HG		Sleeve	24	12.0	0.07	1.68	6000	0.21	7.25	3.41	0.13	30.6
HDS4524MG				12.0	0.06	1.44	5000	0.17	6.10	2.44	0.10	26.3
HDS4524LG				12.0	0.04	0.96	4000	0.12	4.34	1.45	0.06	21.0
HDB4524HG		Ball		12.0	0.07	1.68	6000	0.21	7.25	3.41	0.13	30.6
HDB4524MG				12.0	0.06	1.44	5000	0.17	6.10	2.44	0.10	26.3
HDB4524LG				12.0	0.04	0.96	4000	0.12	4.34	1.45	0.06	21.0
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

45x45x10mm
