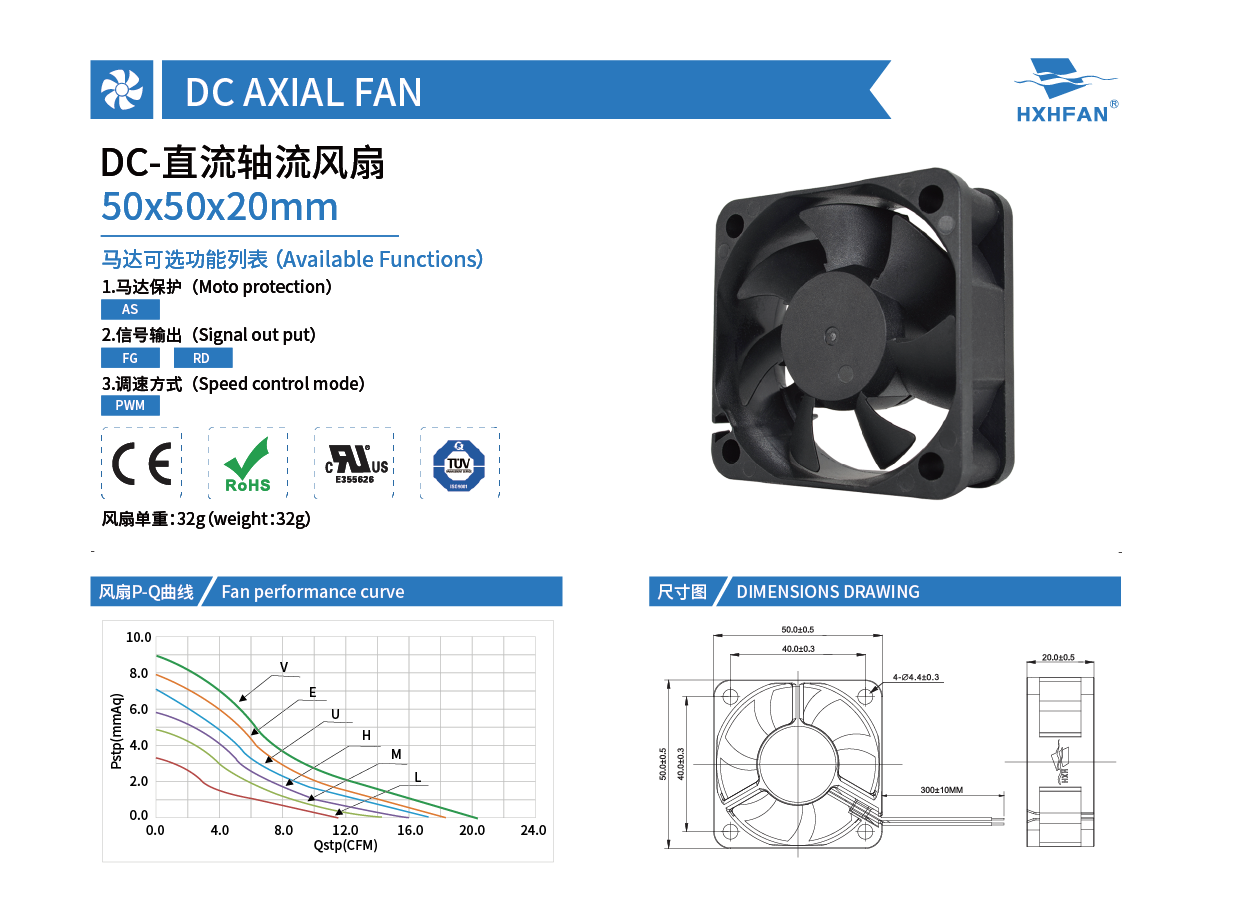

50×50×20mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDH0505HC	-A	Hydraulic	5	4.0	0.31	1.55	5500	0.45	15.77	5.80	0.23	37.6
HDH0505MC				4.0	0.25	1.25	5000	0.41	14.32	4.85	0.19	35.0
HDH0505LC				4.0	0.14	0.70	4000	0.33	11.51	3.28	0.13	30.5
HDB0505HC	-A	Ball		4.0	0.31	1.55	5500	0.45	15.77	5.80	0.23	37.6
HDB0505MC				4.0	0.25	1.25	5000	0.41	14.32	4.85	0.19	35.0
HDB0505LC				4.0	0.14	0.70	4000	0.33	11.51	3.28	0.13	30.5
HDH0512VC	-A	Hydraulic	12	4.0	0.35	4.20	7000	0.58	20.34	8.98	0.35	43.7
HDH0512EC	-A			7.0	0.30	3.60	6500	0.52	18.25	7.91	0.31	41.5
HDH0512UC				7.0	0.25	3.00	6000	0.49	17.23	7.10	0.28	39.2
HDH0512HC				7.0	0.20	2.40	5500	0.45	15.77	5.80	0.23	37.6
HDH0512MC				7.0	0.12	1.44	5000	0.41	14.32	4.85	0.19	35.0
HDH0512LC				7.0	0.09	1.08	4000	0.33	11.51	3.28	0.13	30.5
HDB0512VC	-A	Ball		7.0	0.35	4.20	7000	0.58	20.34	8.98	0.35	43.7
HDB0512EC	-A			7.0	0.30	3.60	6500	0.52	18.25	7.91	0.31	41.5
HDB0512UC				7.0	0.25	3.00	6000	0.49	17.23	7.10	0.28	39.2
HDB0512HC				7.0	0.20	2.40	5500	0.45	15.77	5.80	0.23	37.6
HDB0512MC				7.0	0.12	1.44	5000	0.41	14.32	4.85	0.19	35.0
HDB0512LC				7.0	0.09	1.08	4000	0.33	11.51	3.28	0.13	30.5
HDH0524VC	-A	Hydraulic	24	12.0	0.23	5.52	7000	0.58	20.34	8.98	0.35	43.7
HDH0524EC	-A			12.0	0.20	4.80	6500	0.52	18.25	7.91	0.31	41.5
HDH0524UC				12.0	0.18	4.32	6000	0.49	17.23	7.10	0.28	39.2
HDH0524HC				12.0	0.13	3.12	5500	0.45	15.77	5.80	0.23	37.6
HDH0524MC				12.0	0.08	1.92	5000	0.41	14.32	4.85	0.19	35.0
HDH0524LC				12.0	0.06	1.44	4000	0.33	11.51	3.28	0.13	30.5
HDB0524VC	-A	Ball		12.0	0.23	5.52	7000	0.58	20.34	8.98	0.35	43.7
HDB0524EC	-A			12.0	0.20	4.80	6500	0.52	18.25	7.91	0.31	41.5
HDB0524UC				12.0	0.18	4.32	6000	0.49	17.23	7.10	0.28	39.2
HDB0524HC				12.0	0.13	3.12	5500	0.45	15.77	5.80	0.23	37.6
HDB0524MC				12.0	0.08	1.92	5000	0.41	14.32	4.85	0.19	35.0
HDB0524LC				12.0	0.06	1.44	4000	0.33	11.51	3.28	0.13	30.5
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing
