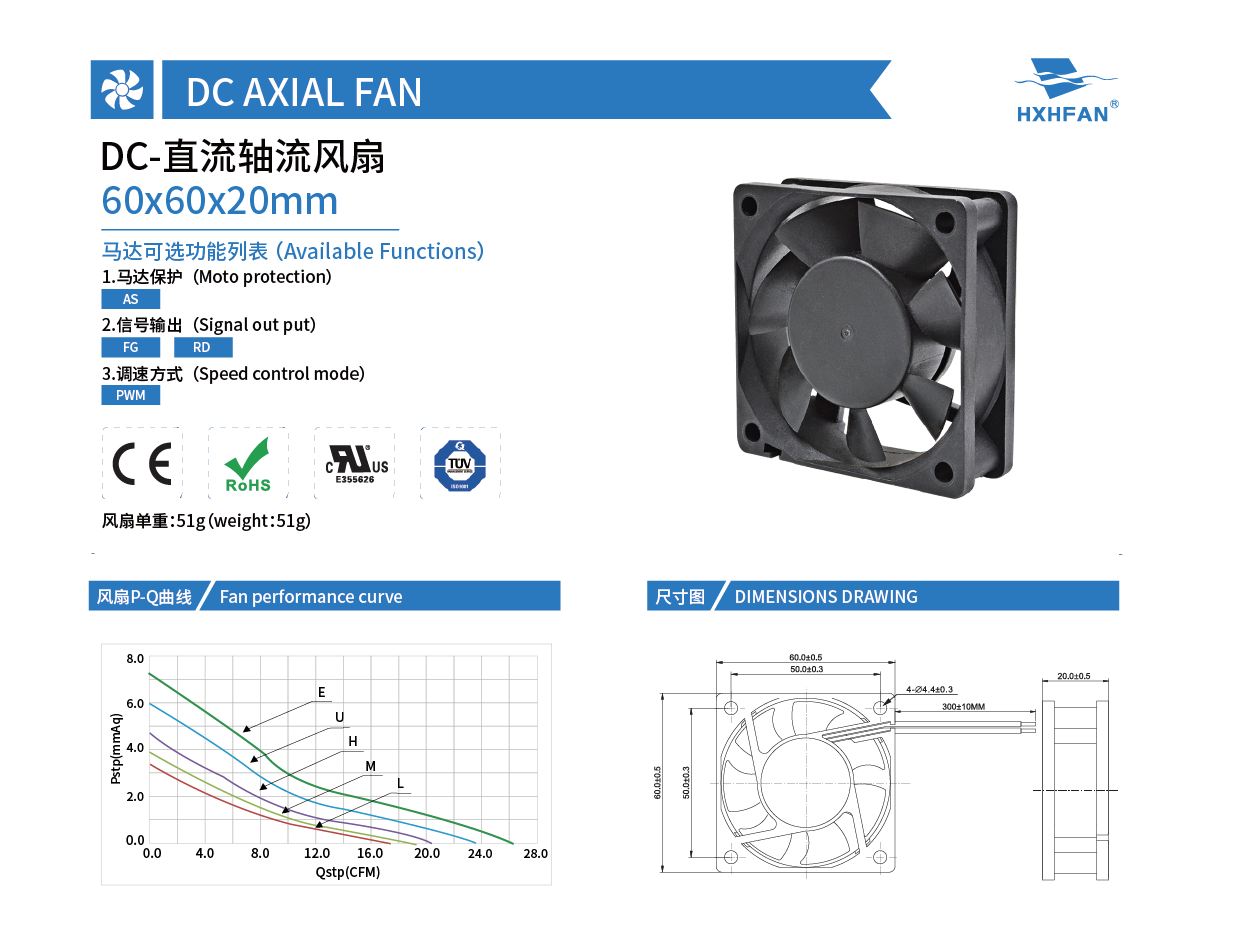

60×60×20mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDH0605MC	-A	Hydraulic	5	4.0	0.33	1.65	4000	0.55	19.30	3.88	0.15	27.3
HDH0605LC		Hydraulic		4.0	0.28	1.40	3500	0.49	17.38	3.34	0.13	23.4
HDB0605MC	-A	Ball		4.0	0.33	1.65	4000	0.55	19.30	3.88	0.15	27.3
HDB0605LC		Ball		4.0	0.28	1.40	3500	0.49	17.38	3.34	0.13	23.4
HDH0612EC		Hydraulic	12	6.0	0.27	3.24	5500	0.74	26.30	7.21	0.28	35.2
HDH0612UC				6.0	0.23	2.76	5000	0.67	23.69	5.93	0.23	32.9
HDH0612HC				6.0	0.18	2.16	4500	0.58	20.44	4.67	0.18	30.6
HDH0612MC				6.0	0.15	1.80	4000	0.55	19.30	3.88	0.15	27.3
HDH0612LC				6.0	0.12	1.44	3500	0.49	17.38	3.34	0.13	23.4
HDB0612EC		Ball		6.0	0.27	3.24	5500	0.74	26.30	7.21	0.28	35.2
HDB0612UC				6.0	0.23	2.76	5000	0.67	23.69	5.93	0.23	32.9
HDB0612HC				6.0	0.18	2.16	4500	0.58	20.44	4.67	0.18	30.6
HDB0612MC				6.0	0.15	1.80	4000	0.55	19.30	3.88	0.15	27.3
HDB0612LC				6.0	0.12	1.44	3500	0.49	17.38	3.34	0.13	23.4
HDH0624HC		Hydraulic	24	12.0	0.15	3.60	4500	0.58	20.44	4.67	0.18	30.6
HDH0624MC				12.0	0.09	2.16	4000	0.55	19.30	3.88	0.15	27.3
HDH0624LC				12.0	0.07	1.68	3500	0.49	17.38	3.34	0.13	23.4
HDB0624HC		Ball		12.0	0.15	3.60	4500	0.58	20.44	4.67	0.18	30.6
HDB0624MC				12.0	0.09	2.16	4000	0.55	19.30	3.88	0.15	27.3
HDB0624LC				12.0	0.07	1.68	3500	0.49	17.38	3.34	0.13	23.4
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

60x60x20mm

DC-轴流风扇
