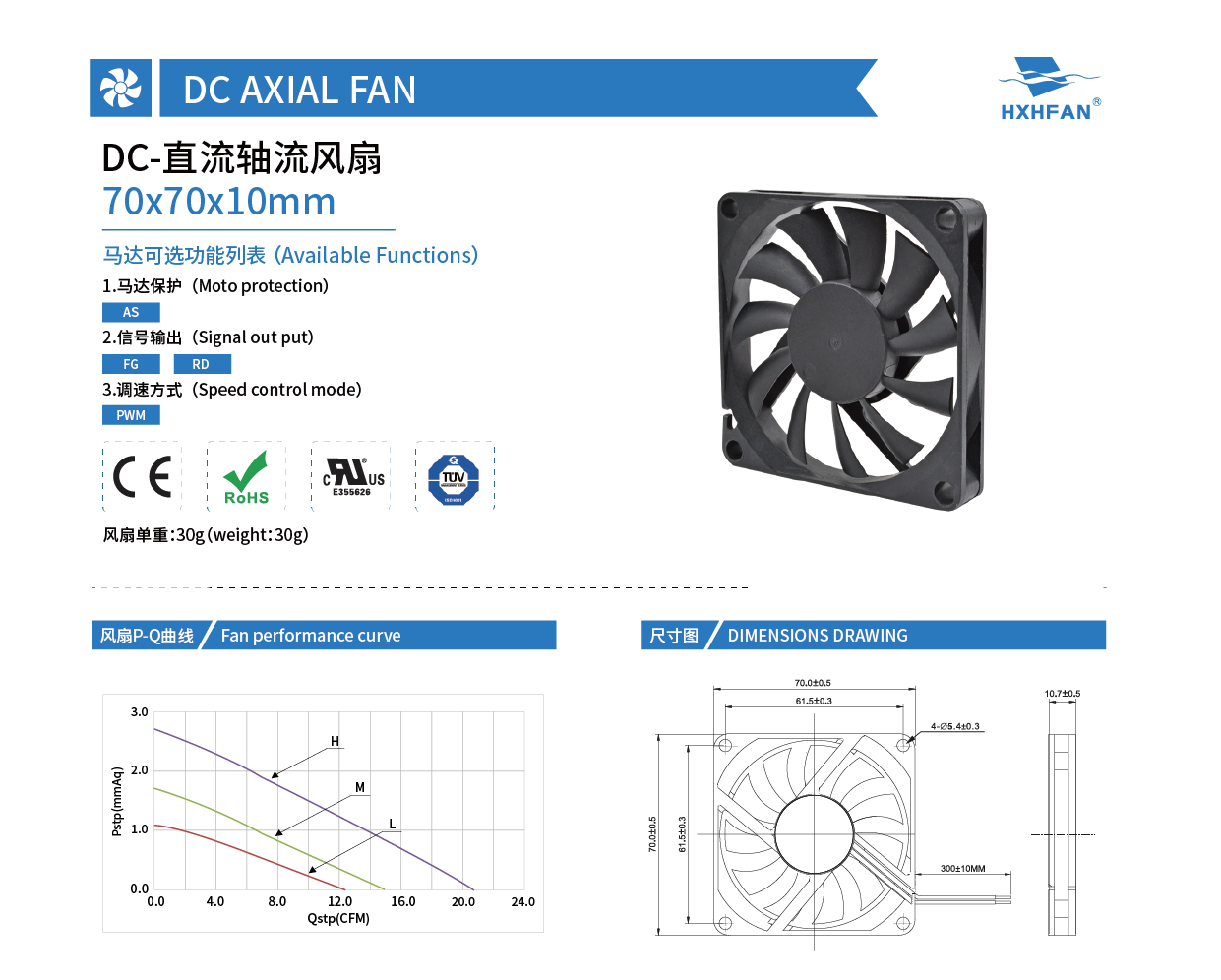

70×70×10mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDS0705MG		Sleeve	5	4.0	0.27	1.35	3000	0.42	15.00	1.71	0.07	24.2
HDS0705LG		Sleeve		4.0	0.13	0.65	2500	0.35	12.36	1.09	0.04	21.1
HDB0705HG	-A	Ball		4.0	0.35	1.75	3500	0.58	20.59	2.70	0.11	27.7
HDB0705MG				4.0	0.27	1.35	3000	0.42	15.00	1.71	0.07	24.2
HDB0705LG				4.0	0.13	0.65	2500	0.35	12.36	1.09	0.04	21.1
HDS0712HG		Sleeve	12	5.0	0.21	2.52	3500	0.58	20.59	2.70	0.11	27.7
HDS0712MG				5.0	0.14	1.68	3000	0.42	15.00	1.71	0.07	24.2
HDS0712LG				5.0	0.10	1.20	2500	0.35	12.36	1.09	0.04	21.1
HDB0712HG		Ball		5.0	0.21	2.52	3500	0.58	20.59	2.70	0.11	27.7
HDB0712MG				5.0	0.14	1.68	3000	0.42	15.00	1.71	0.07	24.2
HDB0712LG				5.0	0.10	1.20	2500	0.35	12.36	1.09	0.04	21.1
HDS0724HG		Sleeve	24	12.0	0.13	3.12	3500	0.58	20.59	2.70	0.11	27.7
HDS0724MG				12.0	0.11	2.64	3000	0.42	15.00	1.71	0.07	24.2
HDS0724LG				12.0	0.08	1.92	2500	0.35	12.36	1.09	0.04	21.1
HDB0724HG		Ball		12.0	0.13	3.12	3500	0.58	20.59	2.70	0.11	27.7
HDB0724MG				12.0	0.11	2.64	3000	0.42	15.00	1.71	0.07	24.2
HDB0724LG				12.0	0.08	1.92	2500	0.35	12.36	1.09	0.04	21.1
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

70x70x10mm

DC-轴流风扇
