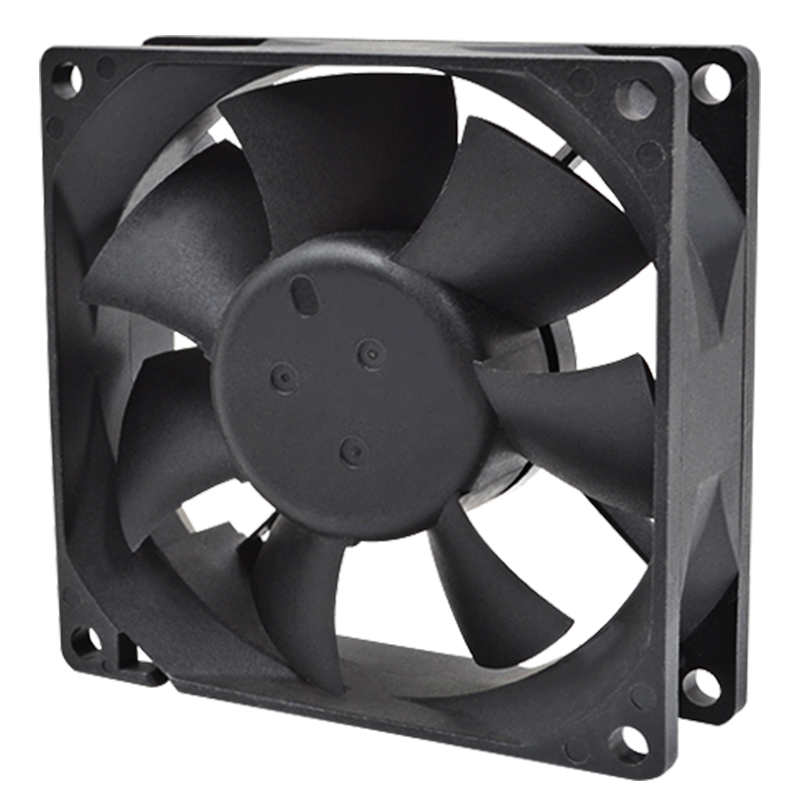

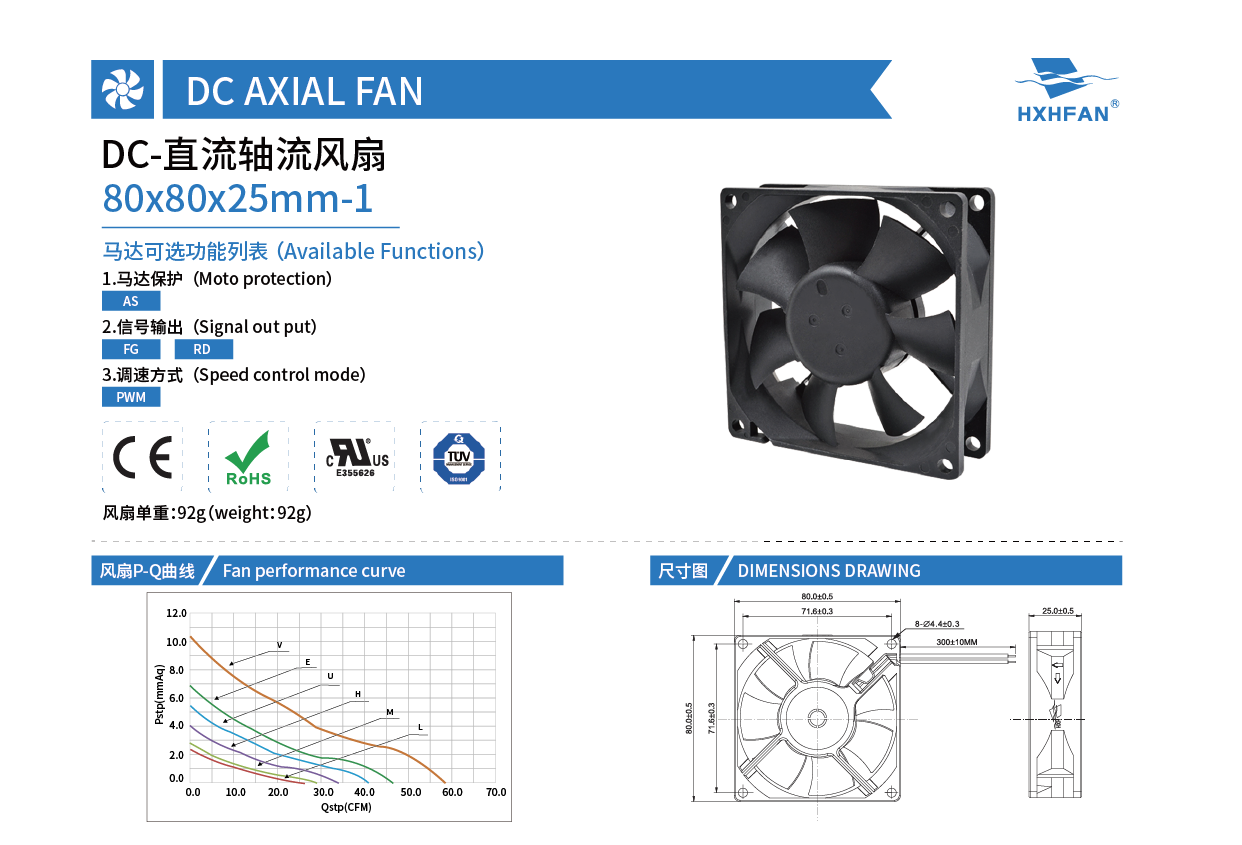

80×80×25mm-1
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDH0805UA	-A	Hydraulic	5	4.0	0.60	3.00	3500	1.16	41.09	5.44	0.21	39.4
HDH0805HA	-A			4.0	0.45	2.25	3000	0.97	34.21	4.04	0.16	35.5
HDH0805MA				4.0	0.25	1.25	2500	0.83	29.24	2.82	0.11	31.3
HDH0805LA				4.0	0.20	1.00	2000	0.74	26.23	2.17	0.09	29.7
HDB0805UA	-A	Ball		4.0	0.60	3.00	3500	1.16	41.09	5.44	0.21	39.4
HDB0805HA	-A			4.0	0.45	2.25	3000	0.97	34.21	4.04	0.16	35.5
HDB0805MA				4.0	0.25	1.25	2500	0.83	29.24	2.82	0.11	31.3
HDB0805LA				4.0	0.20	1.00	2000	0.74	26.23	2.17	0.09	29.7
HDH0812HA		Hydraulic	12	5.0	0.23	2.76	3000	0.97	34.21	4.04	0.16	35.5
HDH0812MA				5.0	0.16	1.92	2500	0.83	29.24	2.82	0.11	31.3
HDH0812LA				5.0	0.09	1.08	2000	0.74	26.23	2.17	0.09	29.7
HDB0812VA	-A	Ball		5.0	0.55	6.60	5000	1.66	58.54	10.34	0.41	48.1
HDB0812EA	-A			5.0	0.38	4.56	4000	1.32	46.57	6.82	0.27	40.7
HDB0812UA	-A			5.0	0.28	3.36	3500	1.16	41.09	5.44	0.21	39.4
HDB0812HA				5.0	0.23	2.76	3000	0.97	34.21	4.04	0.16	35.5
HDB0812MA				5.0	0.16	1.92	2500	0.83	29.24	2.82	0.11	31.3
HDB0812LA				5.0	0.09	1.08	2000	0.74	26.23	2.17	0.09	29.7
HDH0824HA		Hydraulic	24	12.0	0.14	3.36	3000	0.97	34.21	4.04	0.16	35.5
HDH0824MA				12.0	0.09	2.16	2500	0.83	29.24	2.82	0.11	31.3
HDH0824LA				12.0	0.06	1.44	2000	0.74	26.23	2.17	0.09	29.7
HDB0824EA	-A	Ball		12.0	0.28	6.72	4000	1.32	46.57	6.82	0.27	40.7
HDB0824UA	-A			12.0	0.18	4.32	3500	1.16	41.09	5.44	0.21	39.4
HDB0824HA				12.0	0.14	3.36	3000	0.97	34.21	4.04	0.16	35.5
HDB0824MA				12.0	0.09	2.16	2500	0.83	29.24	2.82	0.11	31.3
HDB0824LA				12.0	0.06	1.44	2000	0.74	26.23	2.17	0.09	29.7
HDH0848HA	-A	Hydraulic	48	24.0	0.08	3.84	3000	1.01	35.57	4.28	0.17	35.5
HDH0848MA	-A			24.0	0.06	2.88	2500	0.83	29.24	3.26	0.13	31.3
HDH0848LA	-A			24.0	0.04	1.92	2000	0.69	24.47	2.27	0.09	29.7
HDB0848EA	-A	Ball		24.0	0.10	4.80	4000	1.32	46.57	6.82	0.27	40.7
HDB0848UA	-A			24.0	0.09	4.32	3500	1.16	41.09	5.44	0.21	39.4
HDB0848HA	-A			24.0	0.08	3.84	3000	0.97	34.21	4.04	0.16	35.5
HDB0848MA	-A			24.0	0.06	2.88	2500	0.83	29.24	2.82	0.11	31.3
HDB0848LA	-A			24.0	0.04	1.92	2000	0.74	26.23	2.17	0.09	29.7
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

80x80x25mm-1
