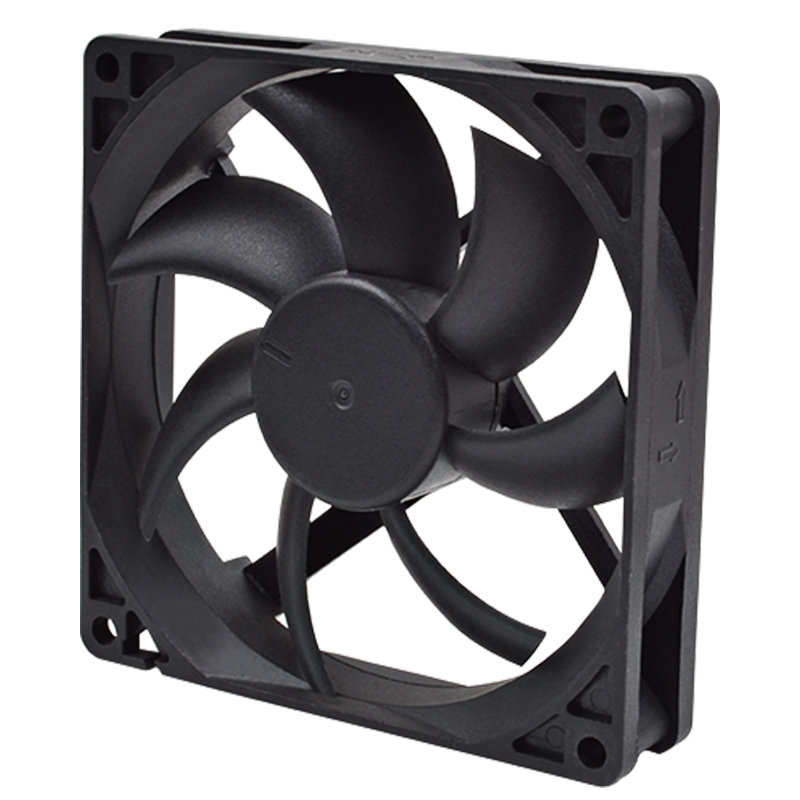

92×92×20mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDS0912EC	-A	Sleeve	12	5.0	0.35	4.20	3300	1.91	67.56	4.88	0.19	42.6
HDS0912UC	-A			5.0	0.28	3.36	3000	1.74	61.38	4.17	0.16	40.3
HDS0912HC				5.0	0.20	2.40	2700	1.50	52.99	3.16	0.12	36.6
HDS0912MC				5.0	0.15	1.80	2400	1.35	47.66	2.83	0.11	33.5
HDS0912LC				5.0	0.10	1.20	2100	1.25	44.07	2.61	0.10	31.4
HDB0912EC	-A	Ball		5.0	0.35	4.20	3300	1.91	67.56	4.88	0.19	42.6
HDB0912UC	-A			5.0	0.28	3.36	3000	1.74	61.38	4.17	0.16	40.3
HDB0912HC				5.0	0.20	2.40	2700	1.50	52.99	3.16	0.12	36.6
HDB0912MC				5.0	0.15	1.80	2400	1.35	47.66	2.83	0.11	33.5
HDB0912LC				5.0	0.10	1.20	2100	1.25	44.07	2.61	0.10	31.4
HDS0924EC		Sleeve	24	12.0	0.18	4.32	3300	1.91	67.56	4.88	0.19	42.6
HDS0924UC				12.0	0.15	3.60	3000	1.74	61.38	4.17	0.16	40.3
HDS0924HC				12.0	0.12	2.88	2700	1.50	52.99	3.16	0.12	36.6
HDS0924MC				12.0	0.08	1.92	2400	1.35	47.66	2.83	0.11	33.5
HDS0924LC				12.0	0.06	1.44	2100	1.25	44.07	2.61	0.10	31.4
HDB0924EC		Ball		12.0	0.18	4.32	3300	1.91	67.56	4.88	0.19	42.6
HDB0924UC				12.0	0.15	3.60	3000	1.74	61.38	4.17	0.16	40.3
HDB0924HC				12.0	0.12	2.88	2700	1.50	52.99	3.16	0.12	36.6
HDB0924MC				12.0	0.08	1.92	2400	1.35	47.66	2.83	0.11	33.5
HDB0924LC				12.0	0.06	1.44	2100	1.25	44.07	2.61	0.10	31.4
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

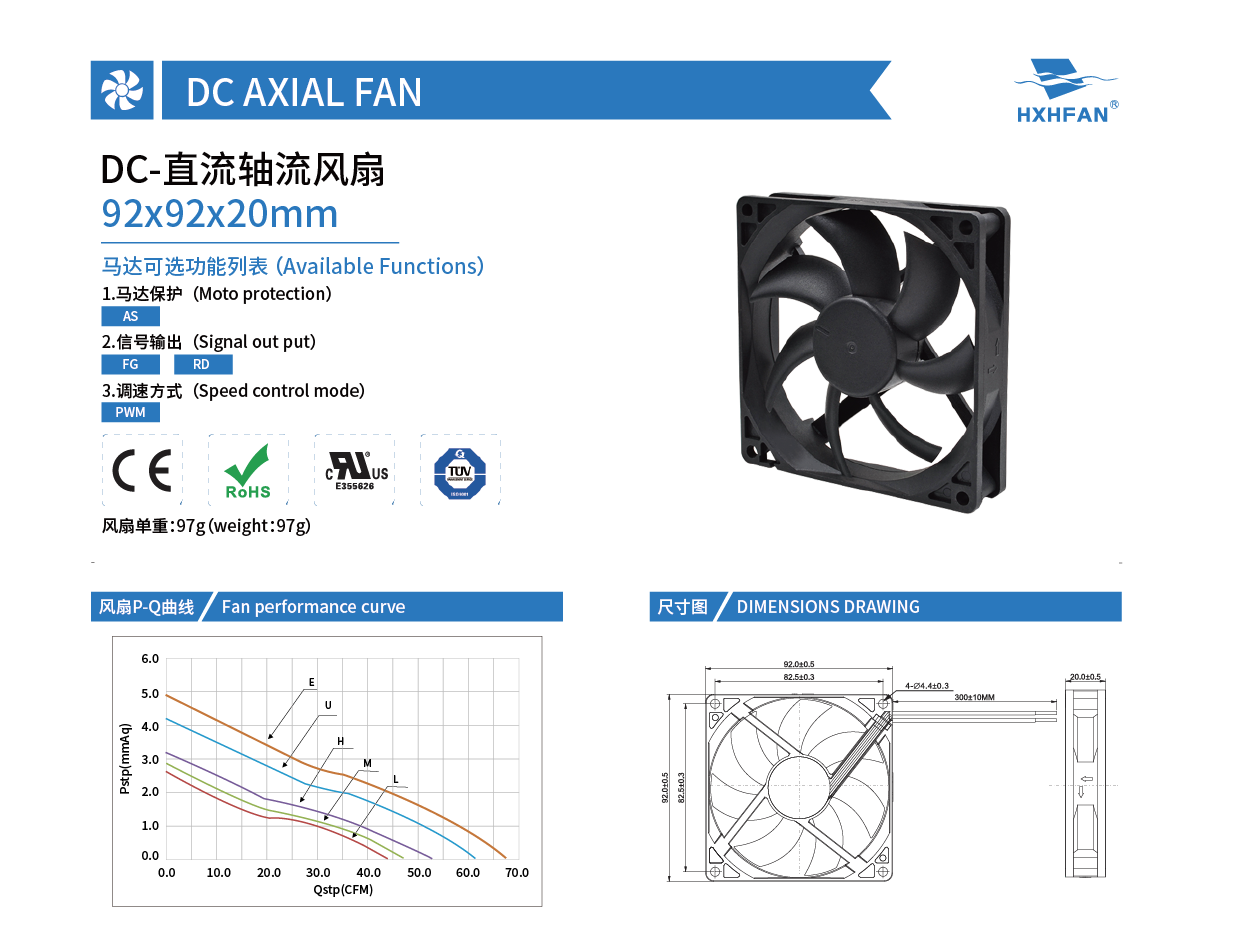

92x92x20mm

DC-轴流风扇
