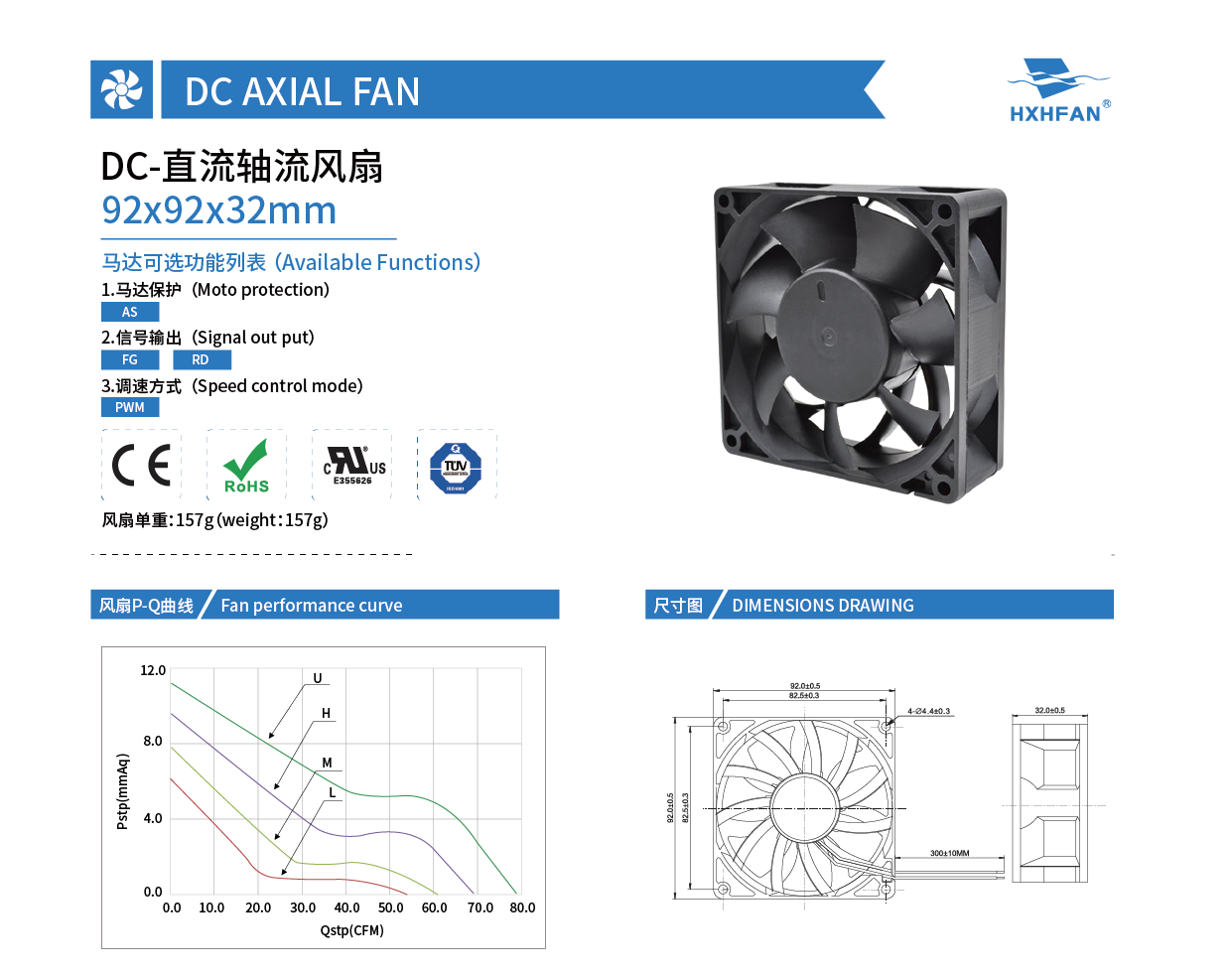

92×92×32mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part No.	Function	System	VDC	VDC	A	W	RPM	m3/min	CFM	mmH2O	INH2O	dBA
HDS0912UY	-A	Sleeve	12	6.0	0.93	11.16	4500	2.24	79.10	11.20	0.44	45.6
HDS0912HY	-A			6.0	0.68	8.16	4000	1.96	69.30	9.58	0.38	42.3
HDS0912MY	-A			6.0	0.49	5.88	3500	1.73	61.20	7.82	0.31	40.2
HDS0912LY	-A			6.0	0.35	4.20	3000	1.55	54.60	6.12	0.24	36.8
HDB0912UY	-A	Ball		6.0	0.93	11.16	4500	2.24	79.10	11.20	0.44	45.6
HDB0912HY	-A			6.0	0.68	8.16	4000	1.96	69.30	9.58	0.38	42.3
HDB0912MY	-A			6.0	0.49	5.88	3500	1.73	61.20	7.82	0.31	40.2
HDB0912LY	-A			6.0	0.35	4.20	3000	1.55	54.60	6.12	0.24	36.8
HDS0924UY	-A	Sleeve	24	12.0	0.48	11.52	4500	2.24	79.10	11.20	0.44	45.6
HDS0924HY	-A			12.0	0.37	8.88	4000	1.96	69.30	9.58	0.38	42.3
HDS0924MY	-A			12.0	0.25	6.00	3500	1.73	61.20	7.82	0.31	40.2
HDS0924LY	-A			12.0	0.18	4.32	3000	1.55	54.60	6.12	0.24	36.8
HDB0924UY	-A	Ball		12.0	0.48	11.52	4500	2.24	79.10	11.20	0.44	45.6
HDB0924HY	-A			12.0	0.37	8.88	4000	1.96	69.30	9.58	0.38	42.3
HDB0924MY	-A			12.0	0.25	6.00	3500	1.73	61.20	7.82	0.31	40.2
HDB0924LY	-A			12.0	0.18	4.32	3000	1.55	54.60	6.12	0.24	36.8
HDS0948UY	-A	Sleeve	48	24.0	0.23	11.04	4500	2.24	79.10	11.20	0.44	45.6
HDS0948HY	-A			24.0	0.18	8.64	4000	1.96	69.30	9.58	0.38	42.3
HDS0948MY	-A			24.0	0.13	6.24	3500	1.73	61.20	7.82	0.31	40.2
HDS0948LY	-A			24.0	0.11	5.28	3000	1.55	54.60	6.12	0.24	36.8
HDB0948UY	-A	Ball		24.0	0.23	11.04	4500	2.24	79.10	11.20	0.44	45.6
HDB0948HY	-A			24.0	0.18	8.64	4000	1.96	69.30	9.58	0.38	42.3
HDB0948MY	-A			24.0	0.13	6.24	3500	1.73	61.20	7.82	0.31	40.2
HDB0948LY	-A			24.0	0.11	5.28	3000	1.55	54.60	6.12	0.24	36.8
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

92x92x32mm

DC-轴流风扇
