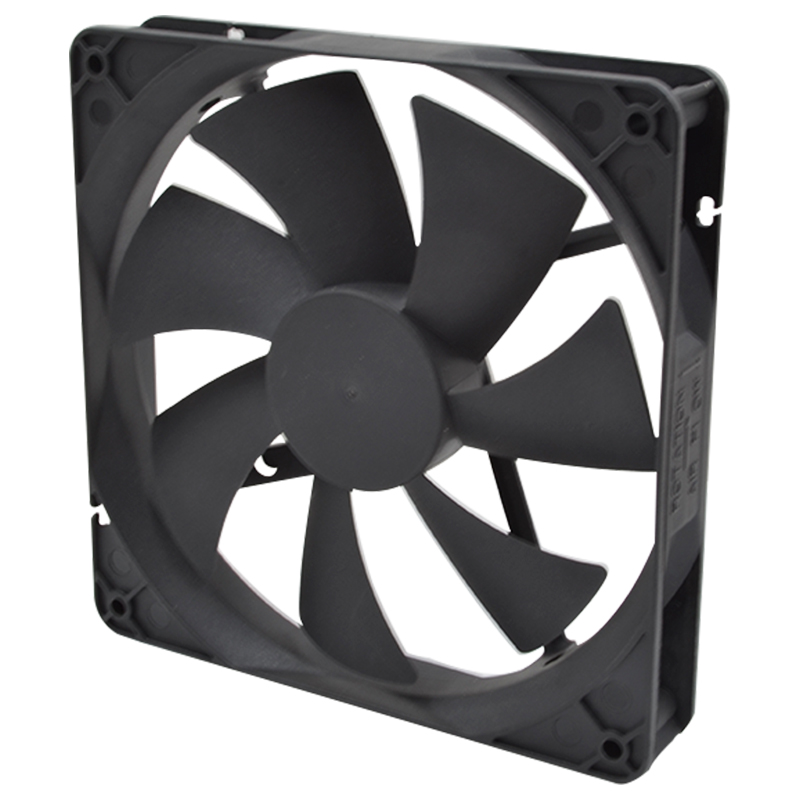

140×140×25MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDS1412HA		Sleeve	12	5.0	0.68	8.16	2500	2.81	99.24	3.51	0.14	41.0
HDS1412MA				5.0	0.39	4.68	2000	2.25	79.39	2.25	0.09	35.7
HDS1412LA				5.0	0.19	2.28	1500	1.80	63.51	1.44	0.06	31.0
HDB1412HA		Ball		5.0	0.68	8.16	2500	2.81	99.24	3.51	0.14	41.0
HDB1412MA				5.0	0.39	4.68	2000	2.25	79.39	2.25	0.09	35.7
HDB1412LA				5.0	0.19	2.28	1500	1.80	63.51	1.44	0.06	31.0
HDS1424HA		Sleeve	24	12.0	0.33	7.92	2500	2.81	99.24	3.51	0.14	41.0
HDS1424MA				12.0	0.18	4.32	2000	2.25	79.39	2.25	0.09	35.7
HDS1424LA				12.0	0.11	2.64	1500	1.80	63.51	1.44	0.06	31.0
HDB1424HA		Ball		12.0	0.33	7.92	2500	2.81	99.24	3.51	0.14	41.0
HDB1424MA				12.0	0.18	4.32	2000	2.25	79.39	2.25	0.09	35.7
HDB1424LA				12.0	0.11	2.64	1500	1.80	63.51	1.44	0.06	31.0
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

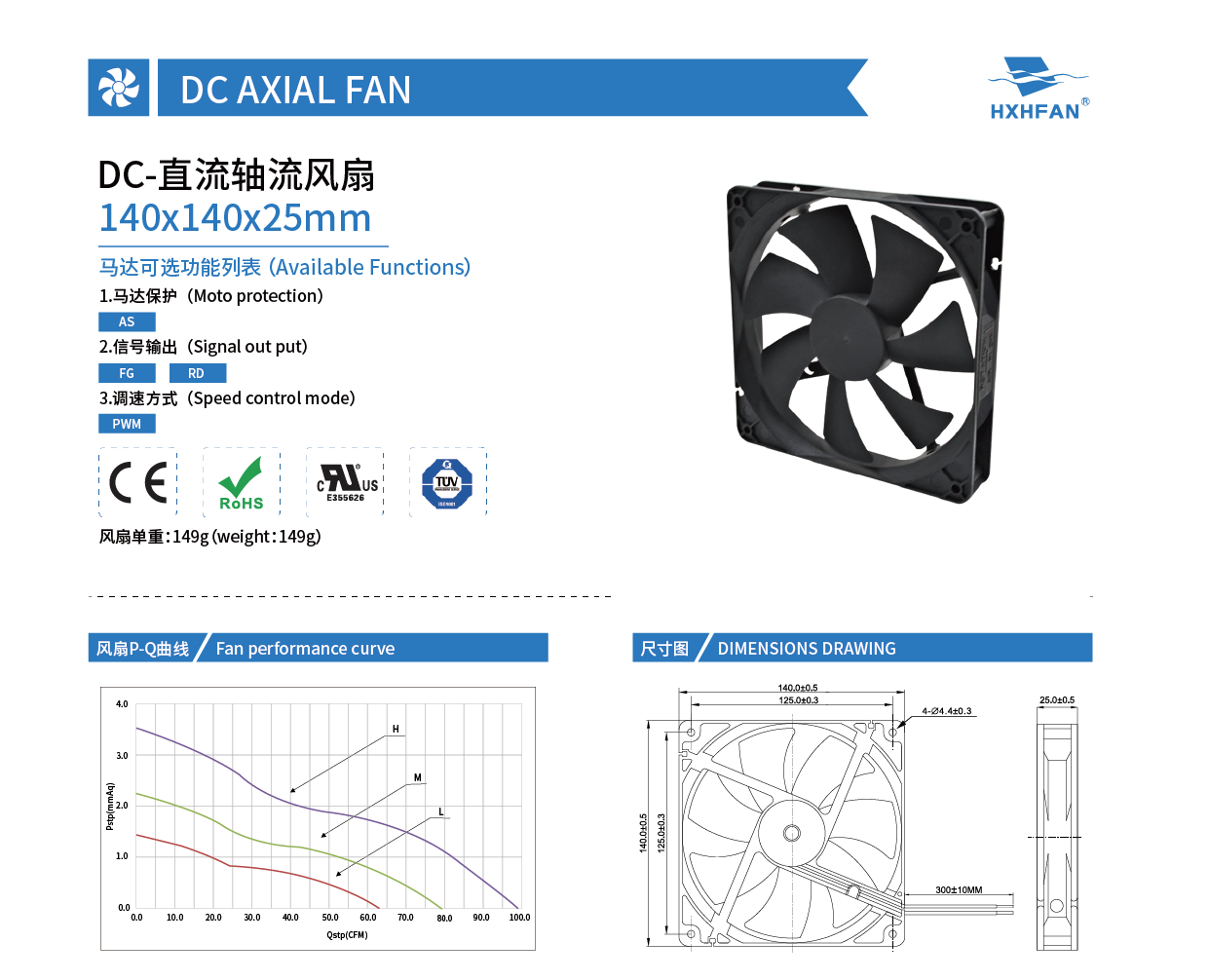

140x140x25mm

DC-轴流风扇
