产品描述
| 20×20×10MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0205HG | -A | Hydraulic | 5 | 4.0 | 0.12 | 0.60 | 12000 | 0.03 | 1.08 | 1.83 | 0.07 | 25.7 |
| HDH0205MG | -A | 4.0 | 0.10 | 0.50 | 9000 | 0.02 | 0.81 | 1.03 | 0.04 | 21.1 | ||
| HDH0205LG | -A | 4.5 | 0.08 | 0.40 | 6000 | 0.02 | 0.54 | 0.46 | 0.02 | 19.5 | ||
| HDH0212HG | -A | Hydraulic | 12 | 6.0 | 0.10 | 1.20 | 12000 | 0.03 | 1.08 | 1.83 | 0.07 | 25.7 |
| HDH0212MG | -A | 6.0 | 0.08 | 0.96 | 9000 | 0.02 | 0.81 | 1.03 | 0.04 | 21.1 | ||
| HDH0212LG | -A | 7.0 | 0.06 | 0.72 | 6000 | 0.02 | 0.54 | 0.46 | 0.02 | 19.5 | ||
关于我们
获得最新报价

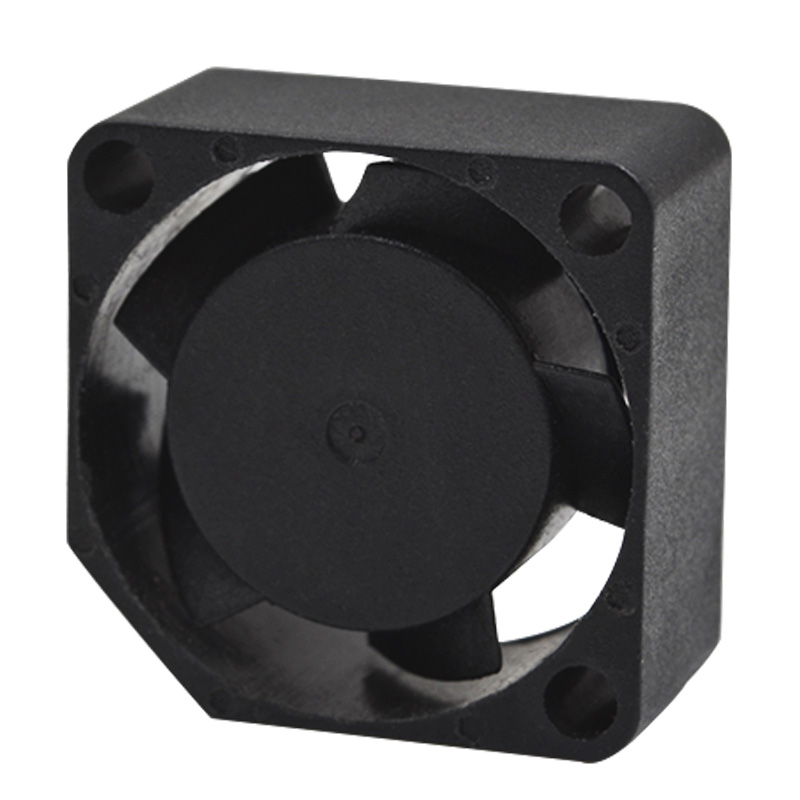

20x20x10mm
MOQ：
价格：
