产品描述
净化器行业解决方案
连日来各城市雾霾围城，再次引起人们对于空气质量的关注。其实去年以来，PM2.5就成了在各大媒体出现频率高的热词。在全国各地PM2.5屡创新高的讨论声中，空气净化器成为消费者热捧的家电产品。
为了满足用户对空气净化器静音，无气味等要求，海星和采用日本NMB轴承，噪音至21db,在控制电路中新增防堵转功能，能够使空气净化器安全，快速，持久的运行。

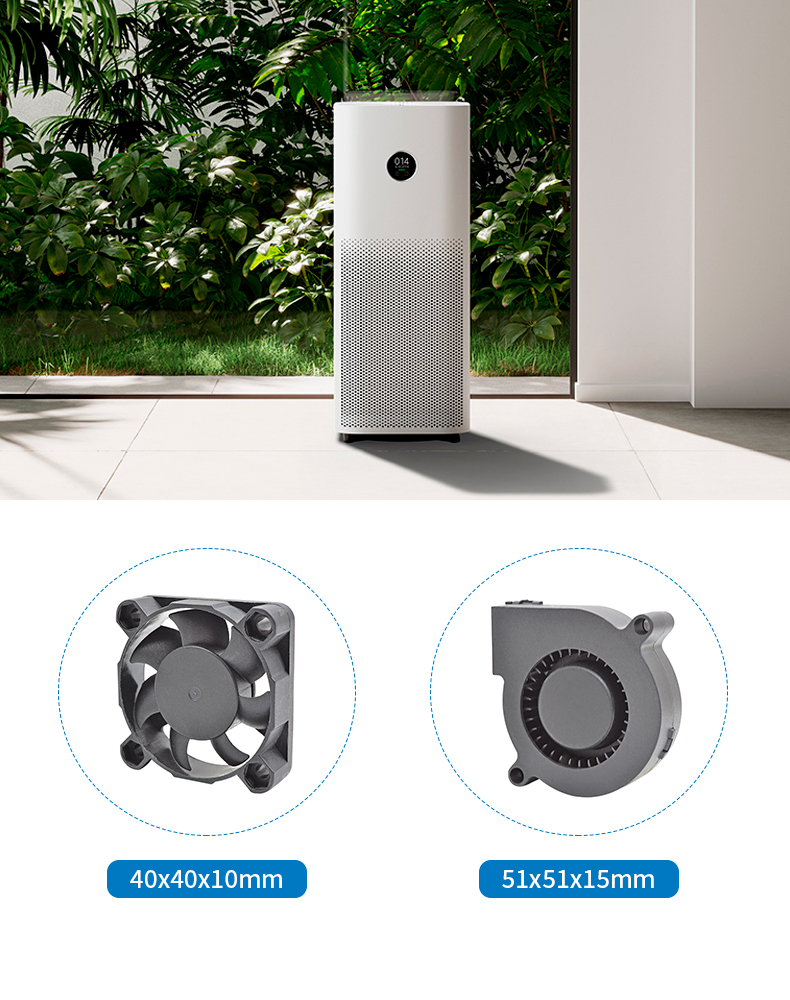

40×40×10MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0405UG | Hydraulic | 5 | 0.22 | 1.10 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |
| HDH0405HG | 0.17 | 0.85 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDH0405MG | 0.11 | 0.55 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDH0405LG | 0.08 | 0.40 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDB0405UG | Ball | 0.22 | 1.10 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | ||
| HDB0405HG | 0.17 | 0.85 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDB0405MG | 0.11 | 0.55 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDB0405LG | 0.08 | 0.40 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDH0412EG | Hydraulic | 12 | 0.15 | 1.80 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | |
| HDH0412UG | 0.12 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDH0412HG | 0.10 | 1.20 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDH0412MG | 0.08 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDH0412LG | 0.07 | 0.84 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDB0412EG | Ball | 0.15 | 1.80 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | ||
| HDB0412UG | 0.12 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDB0412HG | 0.10 | 1.20 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDB0412MG | 0.08 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDB0412LG | 0.07 | 0.84 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDH0424EG | Hydraulic | 24 | 0.07 | 1.68 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | |
| HDH0424UG | 0.06 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDH0424HG | 0.05 | 1.20 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDH0424MG | 0.04 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDH0424LG | 0.03 | 0.72 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDB0424EG | Ball | 0.07 | 1.68 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | ||
| HDB0424UG | 0.06 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDB0424HG | 0.05 | 1.20 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDB0424MG | 0.04 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDB0424LG | 0.03 | 0.72 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
51×51×15MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0505HD | -A | Sleeve | 5 | 0.33 | 1.65 | 5500 | 0.09 | 3.07 | 14.05 | 0.55 | 32.6 |
| HBS0505MD | 0.28 | 1,40 | 4500 | 0.07 | 2.57 | 10.68 | 0.42 | 28.2 | |||
| HBS0505LD | 0.14 | 0.70 | 3500 | 0.05 | 1.92 | 5.76 | 0.23 | 21.9 | |||
| HBB0505HD | -A | Ball | 0.33 | 1.65 | 5500 | 0.09 | 3.07 | 14.05 | 0.55 | 32.6 | |
| HBB0505MD | 0.28 | 1.40 | 4500 | 0.07 | 2.57 | 10.68 | 0.42 | 28.2 | |||
| HBB0505LD | 0.14 | 0.70 | 3500 | 0.05 | 1.92 | 5.76 | 0.23 | 21.9 | |||
| HBS0512HD | Sleeve | 12 | 0.18 | 2.16 | 5500 | 0.09 | 3.07 | 14.05 | 0.55 | 32.6 | |
| HBS0512MD | 0.12 | 1.44 | 4500 | 0.07 | 2.57 | 10.68 | 0.42 | 28.2 | |||
| HBS0512LD | 0.08 | 0.96 | 3500 | 0.05 | 1.92 | 5.76 | 0.23 | 21.9 | |||
| HBB0512UD | Ball | 0.23 | 2.76 | 6500 | 0.10 | 3.69 | 18.24 | 0.72 | 36.3 | ||
| HBB0512HD | 0.18 | 2.16 | 5500 | 0.09 | 3.07 | 14.05 | 0.55 | 32.6 | |||
| HBB0512MD | 0.12 | 1.44 | 4500 | 0.07 | 2.57 | 10.68 | 0.42 | 28.2 | |||
| HBB0512LD | 0.08 | 0.96 | 3500 | 0.05 | 1.92 | 5.76 | 0.23 | 21.9 | |||
| HBS0524HD | Sleeve | 24 | 0.12 | 2.88 | 5500 | 0.09 | 3.07 | 14.05 | 0.55 | 32.6 | |
| HBS0524MD | 0.08 | 1.92 | 4500 | 0.07 | 2.57 | 10.68 | 0.42 | 28.2 | |||
| HBS0524LD | 0.05 | 1.20 | 3500 | 0.05 | 1.92 | 5.76 | 0.23 | 21.9 | |||
| HBB0524UD | Ball | 0.16 | 3.84 | 6500 | 0.10 | 3.69 | 18.24 | 0.72 | 36.3 | ||
| HBB0524HD | 0.12 | 2.88 | 5500 | 0.09 | 3.07 | 14.05 | 0.55 | 32.6 | |||
| HBB0524MD | 0.08 | 1.92 | 4500 | 0.07 | 2.57 | 10.68 | 0.42 | 28.2 | |||
| HBB0524LD | 0.05 | 1.20 | 3500 | 0.05 | 1.92 | 5.76 | 0.23 | 21.9 | |||
