产品描述

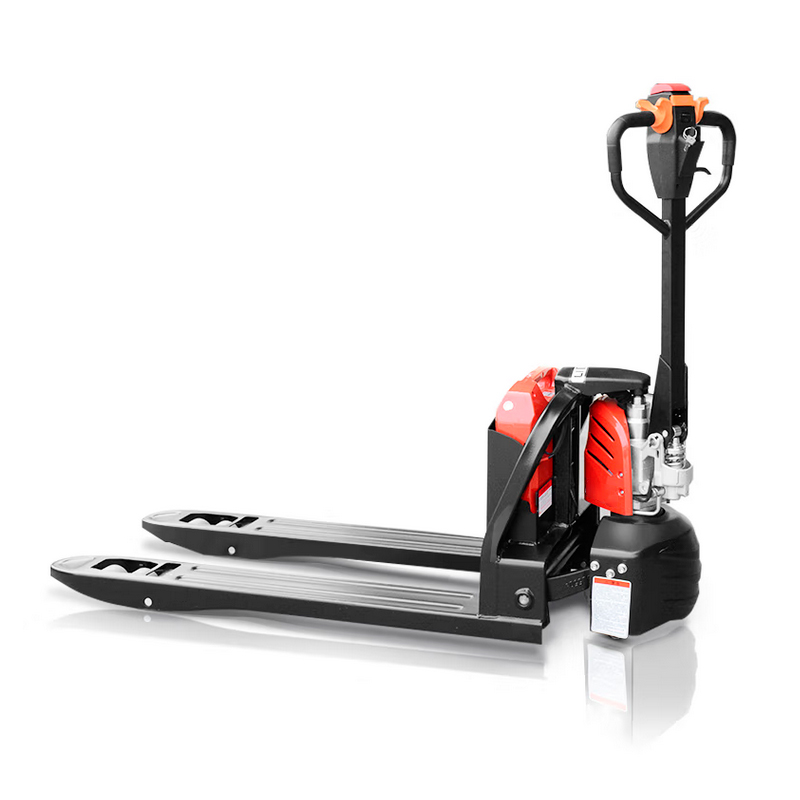

电动叉车应用解决方案
随着科技的发展，电动叉车的工程设计能力的提升，将电池产品设计成小巧型的样式，成就了各种电动叉车产品的优远发展。然而在这种趋势下，产品的功耗不断的增加，导致散热问题严重阻碍了电动叉车发展的脚步。海星和可根据客户的需求定制厚度6mm左右的散热产品，满足电动叉车产品的小巧型及散热需求，让您不担心散热问题，散热问题方可来找风之源为您解决。
海星和为电动叉车产品量身定制的散热解决方案，让散热产品具备小巧型、低功耗、低噪音、高效能、蓄电长与高寿命等特点。让您的产品在市场上具有优势点。

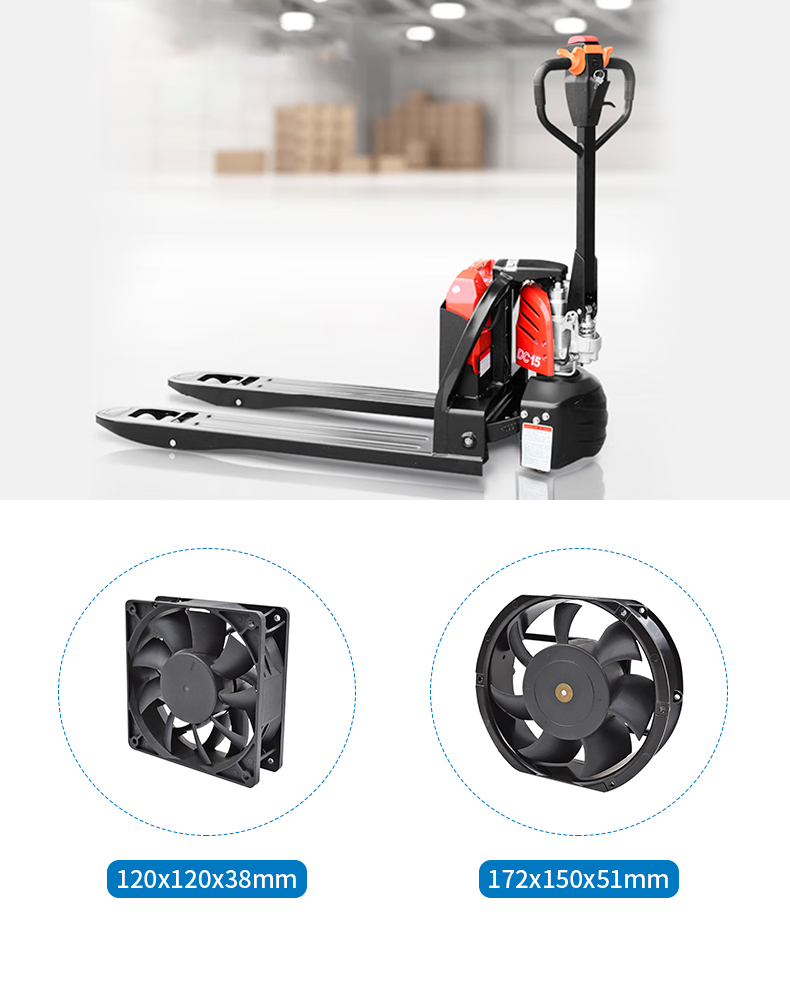

120×120×38MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS1212HF | -A | Sleeve | 12 | 0.70 | 8.40 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 |
| HDS1212MF | -A | 0.40 | 4.80 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDS1212LF | 0.25 | 3.00 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | |||
| HDB1212UF | -A | Ball | 0.80 | 9.60 | 3500 | 4.22 | 149.12 | 14.44 | 0.57 | 50.1 | |
| HDB1212HF | -A | 0.70 | 8.40 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 | ||
| HDB1212MF | -A | 0.40 | 4.80 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDB1212LF | 0.25 | 3.00 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | |||
| HDS1224HF | -A | Sleeve | 24 | 0.40 | 9.60 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 |
| HDS1224MF | -A | 0.30 | 7.20 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDS1224LF | 0.02 | 4.80 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | |||
| HDB1224UF | -A | Ball | 0.06 | 3.00 | 3500 | 4.22 | 149.12 | 14.44 | 0.57 | 50.1 | |
| HDB1224HF | -A | 0.04 | 9.60 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 | ||
| HDB1224MF | -A | 0.03 | 7.20 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDB1224LF | 0.20 | 4.80 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | |||
| HDS1248HF | -A | Sleeve | 48 | 0.20 | 9.60 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 |
| HDS1248MF | -A | 0.15 | 7.20 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDS1248LF | -A | 0.13 | 6.24 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | ||
| HDB1248UF | -A | Ball | 0.25 | 12.00 | 3500 | 4.22 | 149.12 | 14.44 | 0.57 | 50.1 | |
| HDB1248HF | -A | 0.20 | 9.60 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 | ||
| HDB1248MF | -A | 0.15 | 7.20 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDB1248LF | -A | 0.13 | 6.24 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | ||
172×150×51MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1712MU | -A | Ball | 12 | 2.60 | 31.20 | 3000 | 5.70 | 201.47 | 10.78 | 0.42 | 52.0 |
| HDB1712LU | -A | 0.85 | 10.20 | 2000 | 3.80 | 134.31 | 7.19 | 0.28 | 40.3 | ||
| HDB1724MU | -A | Ball | 24 | 1.30 | 31.20 | 3000 | 5.70 | 201.47 | 10.78 | 0.42 | 52.0 |
| HDB1724LU | -A | 0.30 | 7.20 | 2000 | 3.80 | 134.31 | 7.19 | 0.28 | 40.3 | ||
| HDB1748MU | -A | Ball | 48 | 0.65 | 31.20 | 3000 | 5.70 | 201.47 | 10.78 | 0.42 | 52.0 |
| HDB1748LU | -A | 0.16 | 7.68 | 2000 | 3.80 | 134.31 | 7.19 | 0.28 | 40.3 | ||
