产品描述

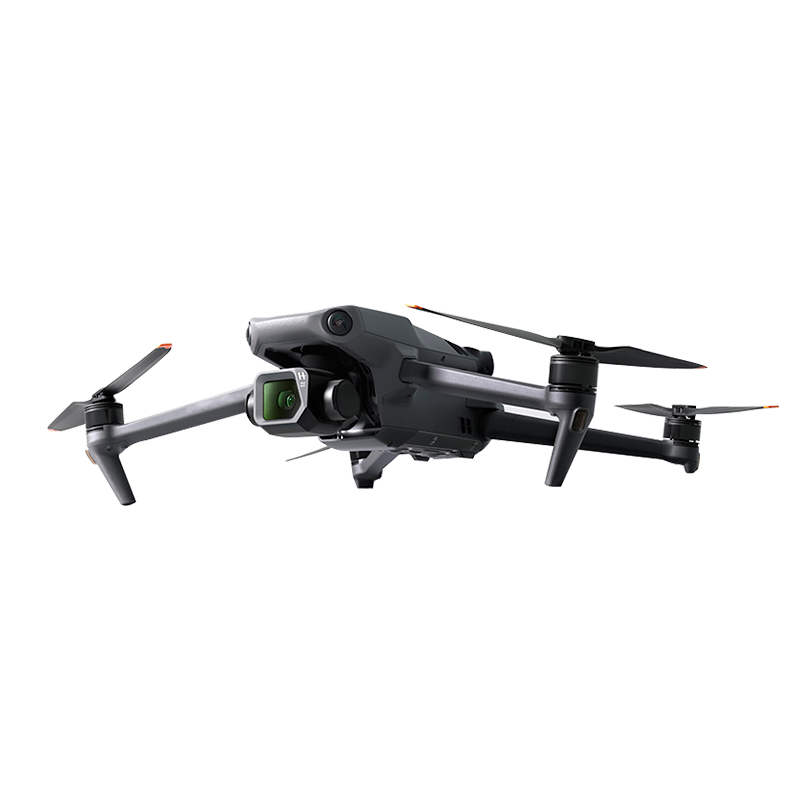

无人机应用解决方案
伴随着科技的进步，无人机的设计工程也越来越广，为了能够在市场上脱颖而出，人们不断的追求高效节能、质量过硬的无人机产品。
海星和不断在散热风扇马达设计上突破，采用可靠的材料，打造散热解决方案，具备省电40%，低振动的特性，采用风之源技术，替客户解决在产品散热效率、流道、振动与可靠度等问题。

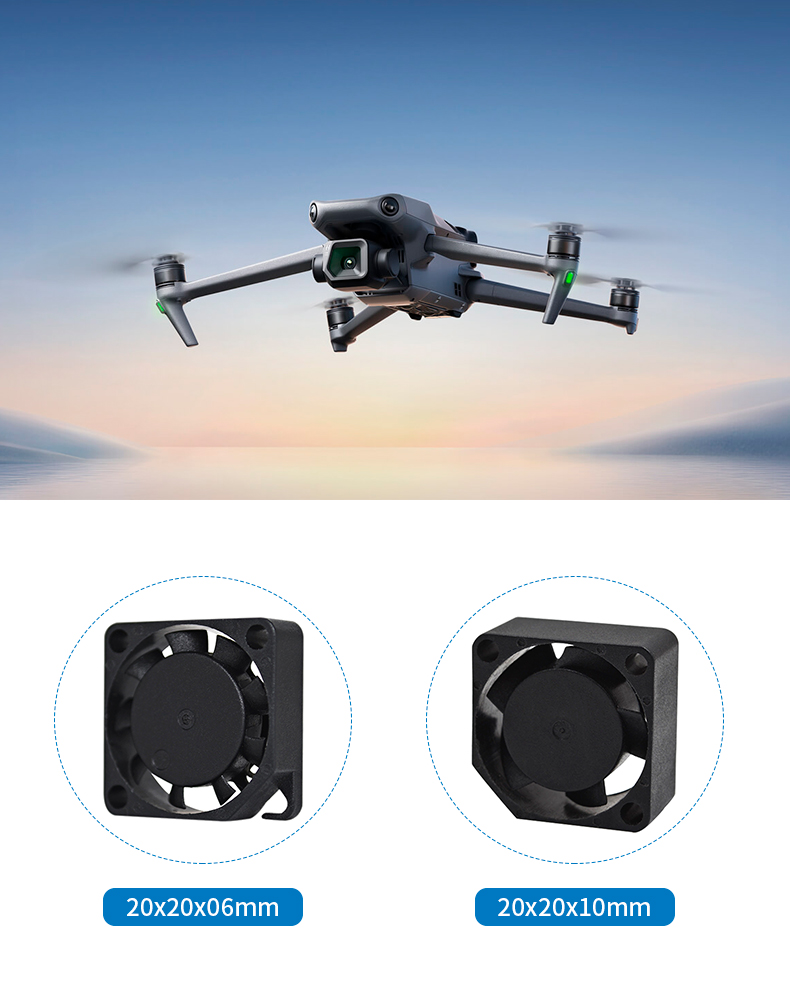

20×20×06MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0205HK | -A | Hydraulic | 5 | 0.22 | 1.10 | 15000 | 0.03 | 1.17 | 3.93 | 0.15 | 14.5 |
| HDH0205MK | -A | 0.17 | 0.85 | 12000 | 0.03 | 0.91 | 2.51 | 0.10 | 11.7 | ||
| HDH0205LK | -A | 0.12 | 0.60 | 9000 | 0.02 | 0.73 | 1.43 | 0.06 | 8.3 | ||
| HDH0212HK | -A | Hydraulic | 12 | 0.11 | 1.32 | 15000 | 0.03 | 1.17 | 3.93 | 0.15 | 14.5 |
| HDH0212MK | -A | 0.10 | 1.20 | 12000 | 0.03 | 0.91 | 2.51 | 0.10 | 11.7 | ||
| HDH0212LK | -A | 0.08 | 0.96 | 9000 | 0.02 | 0.73 | 1.43 | 0.06 | 8.3 | ||
20×20×10MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0205HG | -A | Hydraulic | 5 | 0.16 | 0.80 | 11500 | 0.03 | 1.04 | 1.30 | 0.05 | 15.6 |
| HDH0205MG | -A | 0.08 | 0.40 | 8500 | 0.20 | 0.65 | 0.82 | 0.03 | 11.1 | ||
| HDH0205LG | -A | 0.06 | 0.30 | 5500 | 0.01 | 0.29 | 0.29 | 0.01 | 8.3 | ||
| HDH0212HG | -A | Hydraulic | 12 | 0.16 | 1.92 | 15000 | 0.05 | 1.89 | 1.89 | 0.07 | 23.6 |
| HDH0212MG | -A | 0.08 | 0.96 | 12000 | 0.04 | 1.56 | 1.53 | 0.06 | 16.1 | ||
| HDH0212LG | -A | 0.06 | 0.72 | 9000 | 0.02 | 0.81 | 1.03 | 0.04 | 11.5 | ||
