产品描述

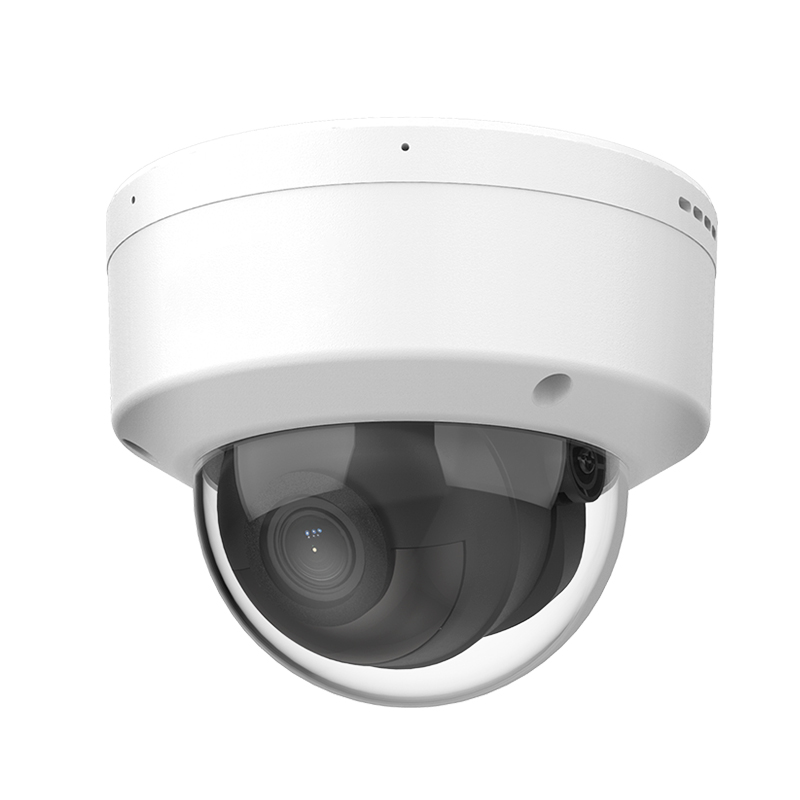

高速摄像机应用解决方案
高速摄像机每天24小时在运作转换，在如此高且稳定的转换效率下，相对带动的摄像机高瓦数与对热传量要求也逐步增加，因此，散热问题成了高速摄像机的难题之一。
海星和使用防阻微尘磁浮马达，隔细微粉尘，展现薄型化、低功耗、低振动、低噪音、长寿命等特性，符合高速摄像机的散热需求。

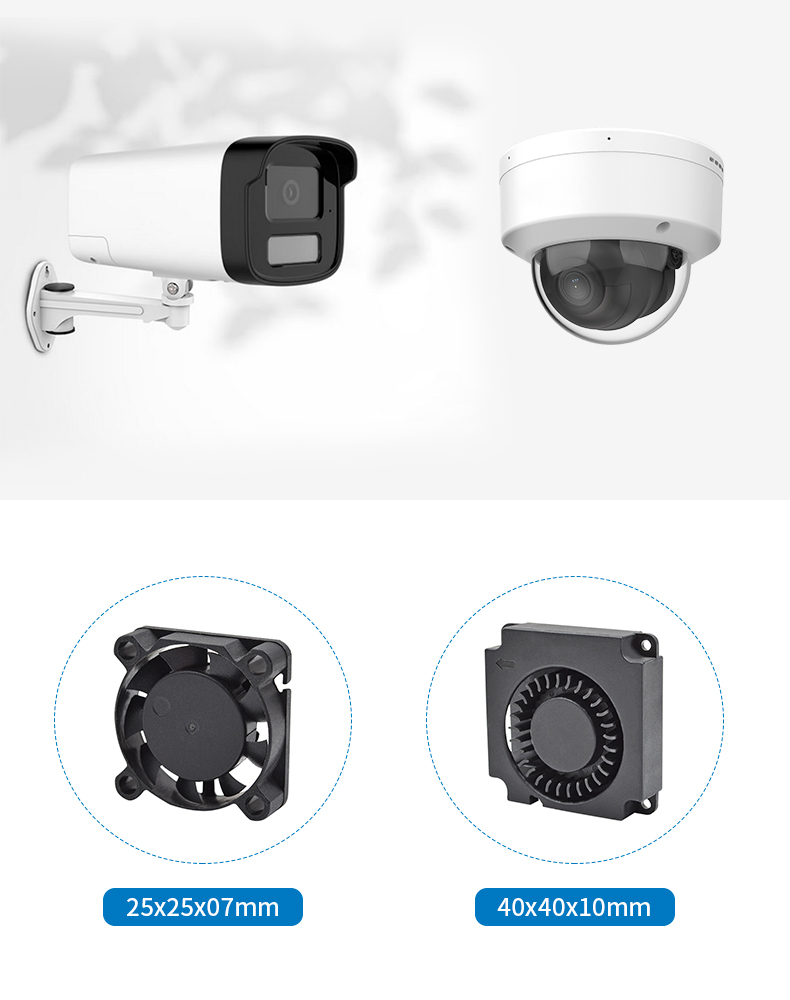

25×25×07MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS2505HQ | Sleeve | 5 | 0.15 | 0.75 | 13000 | 0.06 | 2.20 | 5.24 | 0.21 | 24.0 | |
| HDS2505MQ | 0.10 | 0.50 | 10000 | 0.05 | 1.62 | 2.93 | 0.12 | 18.0 | |||
| HDS2512HQ | 12 | 0.12 | 1.44 | 13000 | 0.06 | 2.20 | 5.24 | 0.21 | 24.0 | ||
| HDS2512MQ | 0.08 | 0.96 | 10000 | 0.05 | 1.62 | 2.93 | 0.12 | 18.0 | |||
40×40×10MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0405UG | Sleeve | 5 | 0.22 | 1.10 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 28.2 | |
| HBS0405HG | 0.17 | 0.85 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 26.6 | |||
| HBS0405MG | 0.11 | 0.55 | 6500 | 0.05 | 1.72 | 4.57 | 0.18 | 23.7 | |||
| HBS0405LG | 0.07 | 0.35 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
| HBB0405UG | Ball | 0.22 | 1.10 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 28.2 | ||
| HBB0405HG | 0.17 | 0.85 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 26.6 | |||
| HBB0405MG | 0.11 | 0.55 | 6500 | 0,05 | 1.72 | 4.57 | 0.18 | 23.7 | |||
| HBB0405LG | 0.07 | 0.35 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
| HBS0412UG | Sleeve | 12 | 0.10 | 1.20 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 28.2 | |
| HBS0412HG | 0.08 | 0.96 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 26.6 | |||
| HBS0412MG | 0.06 | 0.72 | 6500 | 0.05 | 1.72 | 4.57 | 0.18 | 23.7 | |||
| HBS0412LG | 0.05 | 0.60 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
| HBB0412UG | Ball | 0.10 | 1.20 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 20.9 | ||
| HBB0412HG | 0.08 | 0.96 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 20.9 | |||
| HBB0412MG | 0.06 | 0.72 | 6500 | 0.05 | 1.72 | 4.57 | 0.18 | 20.9 | |||
| HBB0412LG | 0.05 | 0.60 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
