科技发展的快速进步,对于传统式的需明火加热的煤气炉也早已不是人们生活中的必需品,人们为追求更高的生活质量,采用无明火,无废气排放、无噪音、大幅降低温室效应等特点的电磁炉,大大改善了厨房环境。然而在电磁炉行业越来越受欢迎的这种趋势下,同时伴随产品功耗不断的增加,散热问题成了阻碍电磁炉行业发展的一大点。
海星和为电磁炉行业打造一款散热解决方案,让产品具备低噪音、低功耗、高效能、长寿命等特点。风之源可根据客户需求来定制,所属于您的散热产品。让您的产品具市场的竞争力。

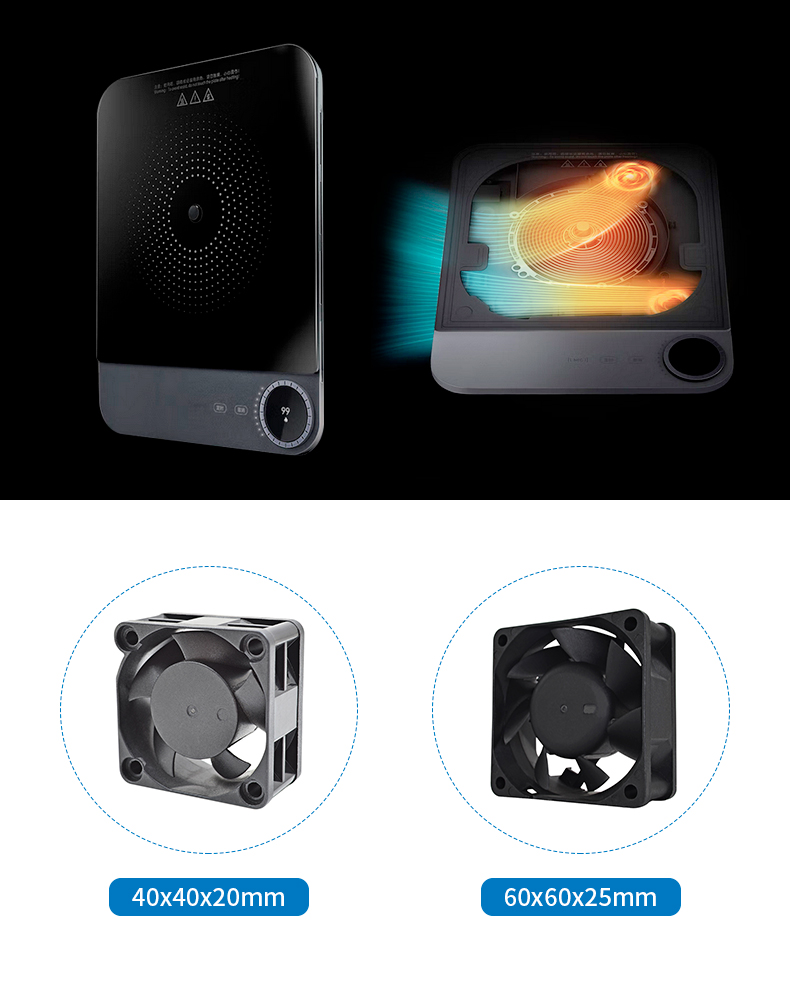

40×40×20MM
Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
HDS0405UC | -A | Sleeve | 5 | 0.30 | 1.50 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 |
HDS0405HC | 0.22 | 1.10 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
HDS0405MC | 0.16 | 0.80 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
HDS0405LC | 0.14 | 0.70 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
HDH0405UC | -A | Hydraulic | 0.30 | 1.50 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | |
HDH0405HC | 0.22 | 1.10 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
HDH0405MC | 0.16 | 0.08 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
HDH0405LC | 0.14 | 0.70 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
HDB0405UC | -A | Ball | 0.30 | 1.50 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | |
HDB0405HC | 0.22 | 1.10 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
HDB0405MC | 0.16 | 0.80 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
HDB0405LC | 0.14 | 0.70 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
HDS0412UC | Sleeve | 12 | 0.12 | 1.44 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | |
HDS0412HC | 0.10 | 1.20 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
HDS0412MC | 0.08 | 0.96 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
HDS0412LC | 0.06 | 0.72 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
HDH0412UC | Hydraulic | 0.12 | 1.44 | 8200 | 0.25 | 8.99 | 8.13 | 0.32 | 33.5 | ||
HDH0412HC | 0.10 | 1.20 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
HDH0412MC | 0.08 | 0.96 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
HDH0412LC | 0.06 | 0.72 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
HDB0412UC | Ball | 0.12 | 1.44 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | ||
HDB0412HC | 0.10 | 1.20 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
HDB0412MC | 0.08 | 0.96 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
HDB0412LC | 0.06 | 0.72 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
HDS0424UC | Sleeve | 24 | 0.10 | 2.40 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | |
HDS0424HC | 0.07 | 1.68 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
HDS0424MC | 0.06 | 1.44 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
HDS0424LC | 0.05 | 1.20 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
HDH0424UC | Hydraulic | 0.10 | 2.40 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | ||
HDH0424HC | 0.07 | 1.68 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
HDH0424MC | 0.06 | 1.44 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
HDH0424LC | 0.05 | 1.20 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
HDB0424UC | Ball | 0.10 | 2.40 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | ||
HDB0424HC | 0.07 | 1.68 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
HDB0424MC | 0.06 | 1.44 | 6200 | 0.25 | 6.70 | 4.85 | 0.19 | 24.8 | |||
HDB0424LC | 0.05 | 1.20 | 5000 | 0.22 | 4.97 | 2.89 | 0.11 | 22.6 |
60×60×25MM
Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
HDH0612UA-1 | Hydraulic | 12 | 0.27 | 3.24 | 5000 | 0.71 | 25.09 | 7.83 | 0.31 | 42.1 | |
HDH0612HA | 0.18 | 2.16 | 4000 | 0.55 | 19.60 | 5.12 | 0.20 | 37.1 | |||
HDH0612MA | 0.14 | 1.68 | 3000 | 0.42 | 14.77 | 2.91 | 0.11 | 30.7 | |||
HDH0612LA | 0.10 | 1.20 | 2500 | 0.35 | 12.53 | 2.03 | 0.08 | 29.7 | |||
HDB0612EA | -A | Ball | 0.38 | 4.56 | 6000 | 0.93 | 32.70 | 10.82 | 0.43 | 47.3 | |
HDB0612UA | 0.27 | 3.24 | 5000 | 0.71 | 25.09 | 7.83 | 0.31 | 42.1 | |||
HDB0612HA | 0.18 | 2.16 | 4000 | 0.55 | 19.60 | 5.12 | 0.20 | 37.1 | |||
HDB0612MA | 0.14 | 1.68 | 3000 | 0.42 | 14.77 | 2.91 | 0.11 | 30.7 | |||
HDB0612LA | 0.10 | 1.20 | 2500 | 0.35 | 12.53 | 2.03 | 0.08 | 29.7 | |||
HDH0624UA | Hydraulic | 24 | 0.18 | 4.32 | 5000 | 0.71 | 25.09 | 7.83 | 0.31 | 42.1 | |
HDH0624HA | 0.12 | 2.88 | 4000 | 0.55 | 19.60 | 5.12 | 0.20 | 37.1 | |||
HDH0624MA | 0.09 | 2.16 | 3000 | 0.42 | 14.77 | 2.91 | 0.11 | 30.7 | |||
HDH0624LA | 0.07 | 1.68 | 2500 | 0.35 | 12.53 | 2.03 | 0.08 | 29.7 | |||
HDB0624EA | -A | Ball | 0.25 | 6.00 | 6000 | 0.93 | 32.70 | 10.82 | 0.43 | 47.3 | |
HDB0624UA | 0.18 | 4.32 | 5000 | 0.71 | 25.09 | 7.83 | 0.31 | 42.1 | |||
HDB0624HA | 0.12 | 2.88 | 4000 | 0.55 | 19.60 | 5.12 | 0.20 | 37.1 | |||
HDB0624MA | 0.09 | 2.16 | 3000 | 0.42 | 14.77 | 2.91 | 0.11 | 30.7 | |||
HDB0624LA | 0.07 | 1.68 | 2500 | 0.35 | 12.53 | 2.03 | 0.08 | 29.7 |
