产品描述

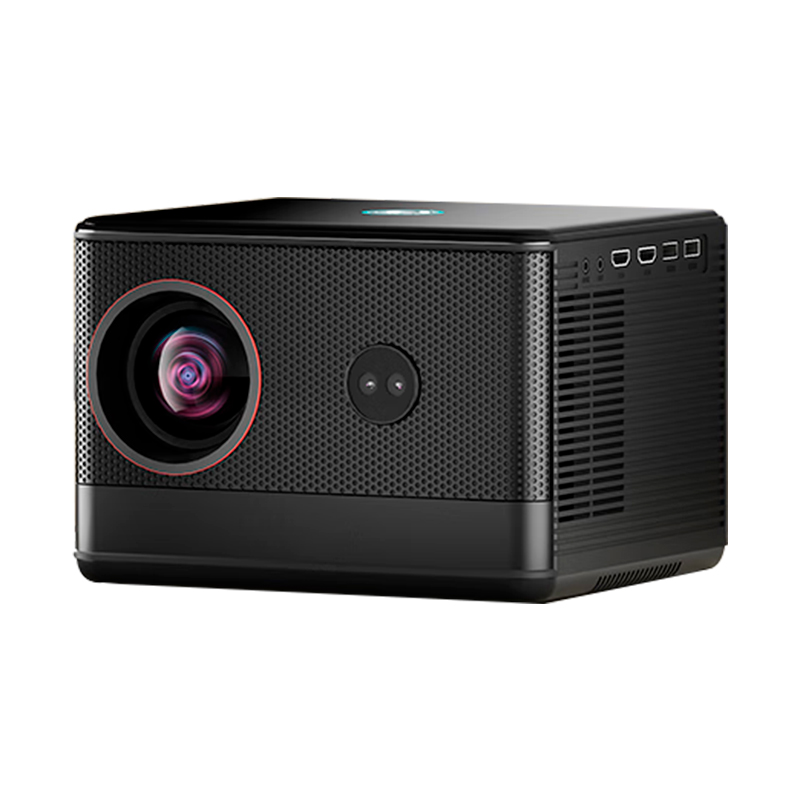

投影仪应用解决方案
近年来，投影仪广泛应用于办公室、娱乐场所、家用和学校等地方，为更好的优化用户体验，投影仪产品不断地演变，然而在提升功能的同时，必须有效排热，保持稳定的温度，确保工作效率。

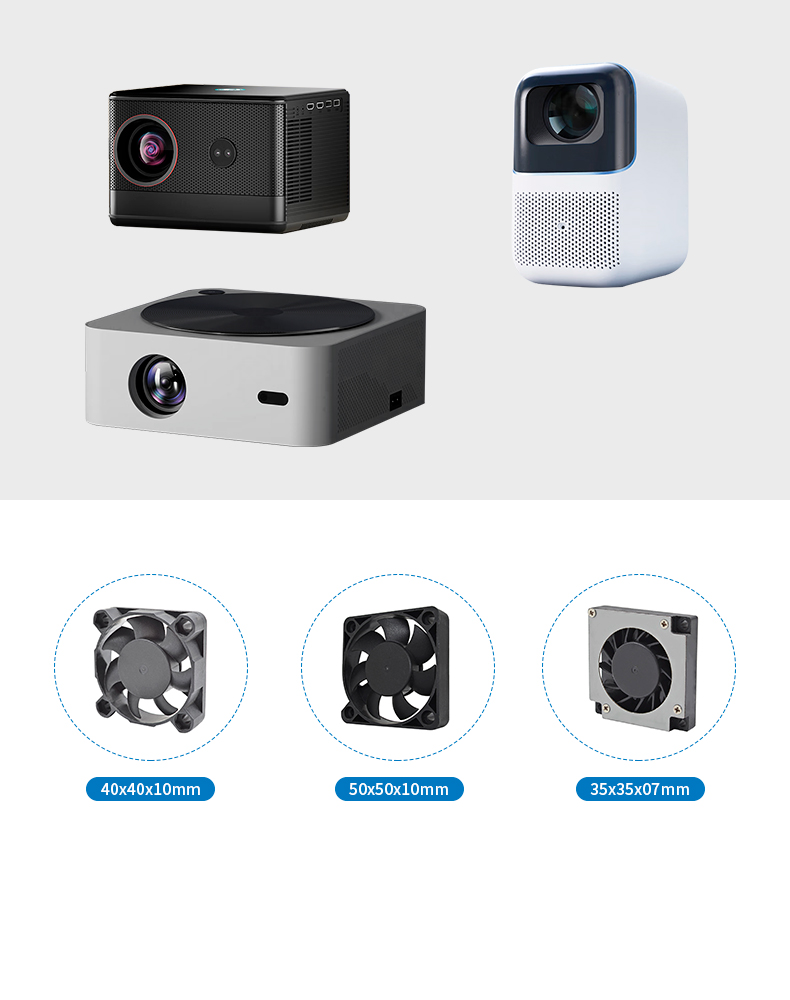

海星和使用防阻微尘磁浮马达，隔绝细微粉尘，展现薄型化、高效能、低功耗、低振动、低噪音、长寿命等优异特性，像是海星和4010这款直流风扇型号就符合投影仪产品的高效节能、质量过硬的散热需求。。
40×40×10MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0405UG | Hydraulic | 5 | 0.22 | 1.10 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |
| HDH0405HG | 0.17 | 0.85 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDH0405MG | 0.11 | 0.55 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDH0405LG | 0.08 | 0.40 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDB0405UG | Ball | 0.22 | 1.10 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | ||
| HDB0405HG | 0.17 | 0.85 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDB0405MG | 0.11 | 0.55 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDB0405LG | 0.08 | 0.40 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDH0412EG | Hydraulic | 12 | 0.15 | 1.80 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | |
| HDH0412UG | 0.12 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDH0412HG | 0.10 | 1.20 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDH0412MG | 0.08 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDH0412LG | 0.07 | 0.84 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDB0412EG | Ball | 0.15 | 1.80 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | ||
| HDB0412UG | 0.12 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDB0412HG | 0.10 | 1.20 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDB0412MG | 0.08 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDB0412LG | 0.07 | 0.84 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDH0424EG | Hydraulic | 24 | 0.07 | 1.68 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | |
| HDH0424UG | 0.06 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDH0424HG | 0.05 | 1.20 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDH0424MG | 0.04 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDH0424LG | 0.03 | 0.72 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
| HDB0424EG | Ball | 0.07 | 1.68 | 8000 | 0.20 | 7.07 | 6.20 | 0.24 | 34.3 | ||
| HDB0424UG | 0.06 | 1.44 | 7000 | 0.18 | 6.19 | 4.52 | 0.18 | 31.7 | |||
| HDB0424HG | 0.05 | 1.20 | 6000 | 0.14 | 4.97 | 3.29 | 0.13 | 27.4 | |||
| HDB0424MG | 0.04 | 0.96 | 5000 | 0.11 | 4.06 | 2.41 | 0.09 | 23.1 | |||
| HDB0424LG | 0.03 | 0.72 | 4000 | 0.10 | 3.49 | 1.63 | 0.06 | 19.8 | |||
50×50×10MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS0505EG | -A | Sleeve | 5 | 0.30 | 1.50 | 7500 | 0.31 | 10.97 | 5.53 | 0.22 | 35.7 |
| HDS0505UG | 0.25 | 1.25 | 6500 | 0.27 | 9.44 | 4.42 | 0.17 | 29.9 | |||
| HDS0505HG | 0.22 | 1.10 | 6000 | 0.25 | 8.74 | 3.79 | 0.15 | 26.8 | |||
| HDS0505MG | 0.20 | 1.00 | 5500 | 0.23 | 8.17 | 3.31 | 0.13 | 25.3 | |||
| HDS0505LG | 0.16 | 0.80 | 4500 | 0.18 | 6.35 | 2.14 | 0.08 | 22.6 | |||
| HDB0505EG | -A | Ball | 0.30 | 1.50 | 7500 | 0.31 | 10.97 | 5.53 | 0.22 | 35.7 | |
| HDB0505UG | 0.25 | 1.25 | 6500 | 0.27 | 9.44 | 4.42 | 0.17 | 29.9 | |||
| HDB0505HG | 0.22 | 1.10 | 6000 | 0.25 | 8.74 | 3.79 | 0.15 | 26.8 | |||
| HDB0505MG | 0.20 | 1.00 | 5500 | 0.23 | 8.17 | 3.31 | 0.13 | 25.3 | |||
| HDB0505LG | 0.16 | 0.80 | 4500 | 0.18 | 6.35 | 2.14 | 0.08 | 22.6 | |||
| HDS0512EG | -A | Sleeve | 12 | 0.24 | 2.88 | 7500 | 0.31 | 10.97 | 5.53 | 0.22 | 35.7 |
| HDS0512UG | 0.20 | 2.40 | 6500 | 0.27 | 9.44 | 4.42 | 0.17 | 29.9 | |||
| HDS0512HG | 0.15 | 1.80 | 6000 | 0.25 | 8.74 | 3.79 | 0.15 | 26.8 | |||
| HDS0512MG | 0.10 | 1.20 | 5500 | 0.23 | 8.17 | 3.31 | 0.13 | 25.3 | |||
| HDS0512LG | 0.08 | 0.96 | 4500 | 0.18 | 6.35 | 2.14 | 0.08 | 22.6 | |||
| HDB0512EG | -A | Ball | 0.24 | 2.88 | 7500 | 0.31 | 10.97 | 5.53 | 0.22 | 35.7 | |
| HDB0512UG | 0.20 | 2.40 | 6500 | 0.27 | 9.44 | 4.42 | 0.17 | 29.9 | |||
| HDB0512HG | 0.15 | 1.80 | 6000 | 0.25 | 8.74 | 3.79 | 0.15 | 26.8 | |||
| HDB0512MG | 0.10 | 1.20 | 5500 | 0.23 | 8.17 | 3.31 | 0.13 | 25.3 | |||
| HDB0512LG | 0.08 | 0.96 | 4500 | 0.18 | 6.35 | 2.14 | 0.08 | 22.6 | |||
| HDS0524EG | -A | Sleeve | 24 | 0.15 | 3.60 | 7500 | 0.31 | 10.97 | 5.53 | 0.22 | 35.7 |
| HDS0524UG | 0.12 | 2.88 | 6500 | 0.27 | 9.44 | 4.42 | 0.17 | 29.9 | |||
| HDS0524HG | 0.10 | 2.40 | 6000 | 0.25 | 8.74 | 3.79 | 0.15 | 26.8 | |||
| HDS0524MG | 0.09 | 2.16 | 5500 | 0.23 | 8.17 | 3.31 | 0.13 | 25.3 | |||
| HDS0524LG | 0.06 | 1.44 | 4500 | 0.18 | 6.35 | 2.14 | 0.08 | 22.6 | |||
| HDB0524EG | -A | Ball | 0.15 | 3.60 | 7500 | 0.31 | 10.97 | 5.53 | 0.22 | 35.7 | |
| HDB0524UG | 0.12 | 2.88 | 6500 | 0.27 | 9.44 | 4.42 | 0.17 | 29.9 | |||
| HDB0524HG | 0.10 | 2.40 | 6000 | 0.25 | 8.74 | 3.79 | 0.15 | 26.8 | |||
| HDB0524MG | 0.09 | 2.16 | 5500 | 0.23 | 8.17 | 3.31 | 0.13 | 25.3 | |||
| HDB0524LG | 0.06 | 1.44 | 4500 | 0.18 | 6.35 | 2.14 | 0.08 | 22.6 | |||
35×35×07MM
| Model | Bearing | Hydraulic | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH3505HQ | Hydraulic | 5 | 0.20 | 1.00 | 7500 | 0.04 | 1.26 | 4.17 | 0.16 | 22.3 | |
| HBH3505MQ | 0.15 | 0.75 | 6500 | 0.03 | 1.12 | 3.28 | 0.13 | 18.7 | |||
| HBH3505LQ | 0.10 | 0.50 | 5500 | 0.02 | 0.87 | 2.60 | 0.10 | 15.6 | |||
| HBH3512HQ | Hydraulic | 12 | 0.13 | 1.56 | 7500 | 0.04 | 1.26 | 4.17 | 0.16 | 22.3 | |
| HBH3512MQ | 0.09 | 1.08 | 6500 | 0.03 | 1.12 | 3.28 | 0.13 | 18.7 | |||
| HBH3512LQ | 0.07 | 0.84 | 5500 | 0.02 | 0.87 | 2.60 | 0.10 | 15.6 | |||
