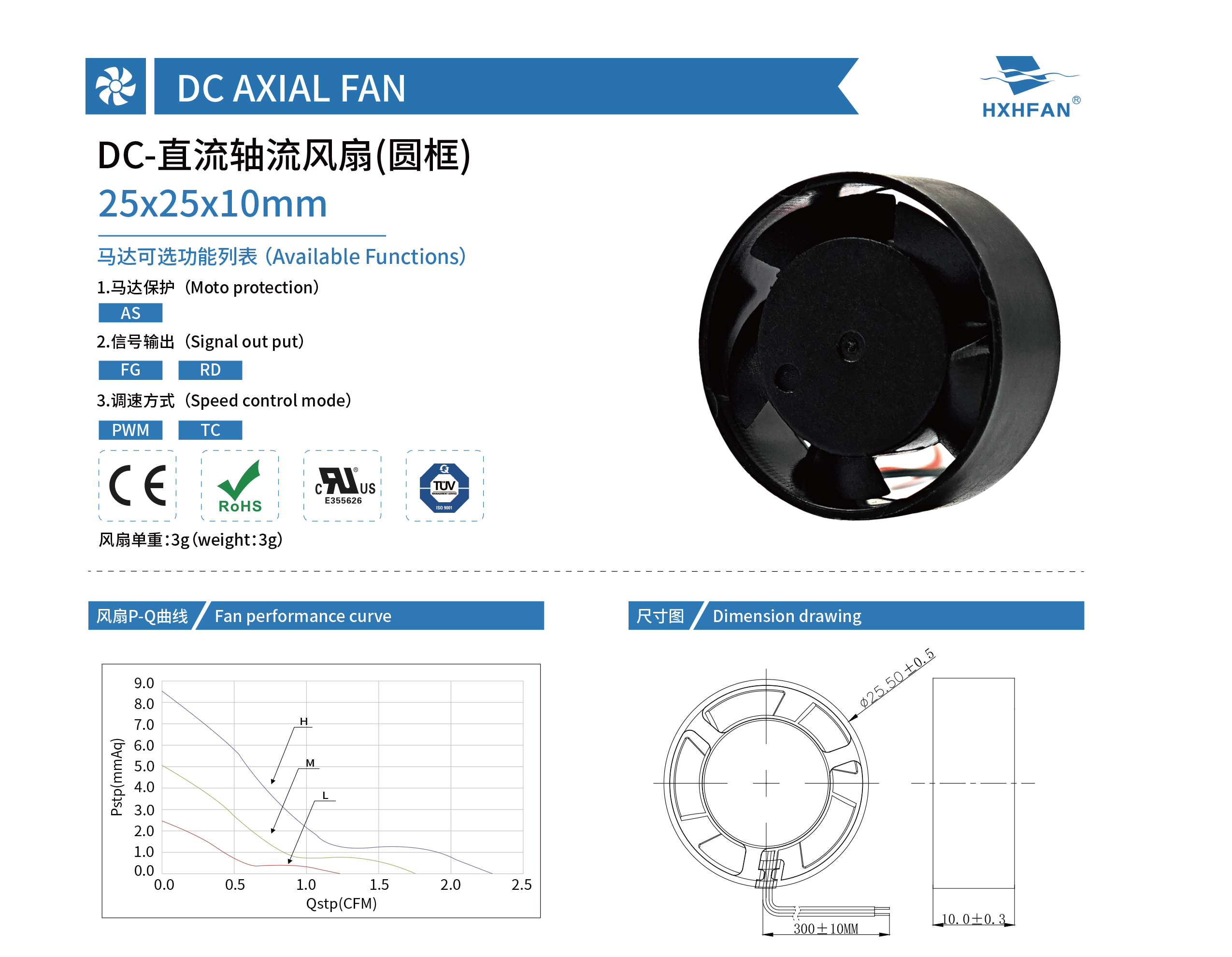

25×25×10MM圆框
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDH2505HG		Hydraulic	5	4.0	0.18	0.90	13000	0.07	2.30	8.48	0.33	27.4
HDH2505MG				4.0	0.12	0.60	10000	0.05	1.77	5.02	0.20	21.7
HDH2505LG				4.0	0.10	0.50	7000	0.04	1.24	2.46	0.10	14.0
HDB2505HG		Ball		4.0	0.18	0.90	13000	0.07	2.30	8.48	0.33	27.4
HDB2505MG				4.0	0.12	0.60	10000	0.05	1.77	5.02	0.20	21.7
HDB2505LG				4.0	0.10	0.50	7000	0.04	1.24	2.46	0.10	14.0
HDH2512HG		Hydraulic	12	7.0	0.14	1.68	13000	0.07	2.30	8.48	0.33	27.4
HDH2512MG				7.0	0.08	0.96	10000	0.05	1.77	5.02	0.20	21.7
HDH2512LG				9.0	0.06	0.72	7000	0.04	1.24	2.46	0.10	14.0
HDB2512HG		Ball		7.0	0.14	1.68	13000	0.07	2.30	8.48	0.33	27.4
HDB2512MG				7.0	0.08	0.96	10000	0.05	1.77	5.02	0.20	21.7
HDB2512LG				9.0	0.06	0.72	7000	0.04	1.24	2.46	0.10	14.0
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

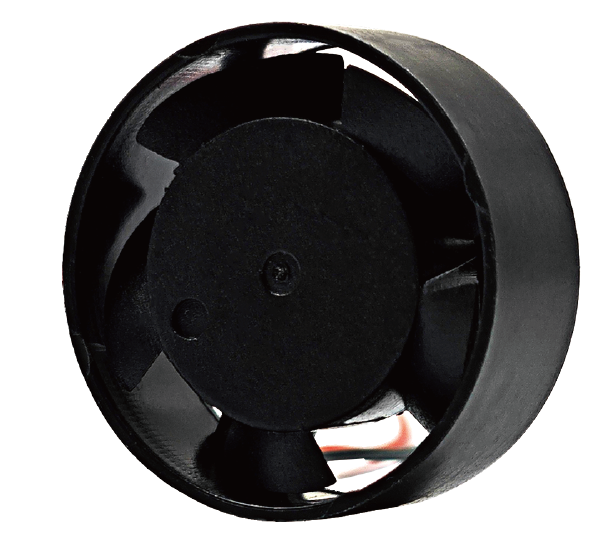

25*25*10mm

DC-轴流风扇
