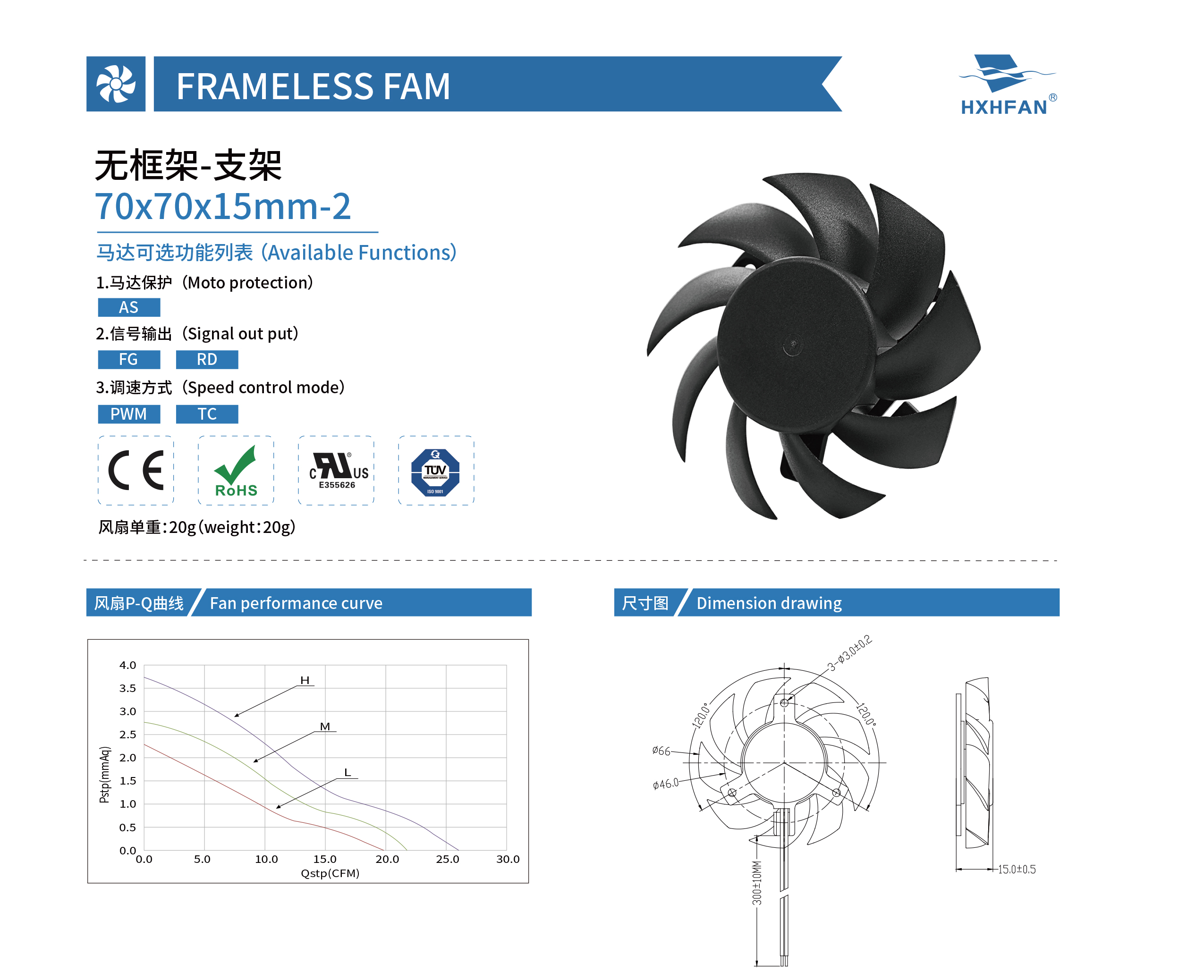

| 70*70*15MM-2(9叶) | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYS0712HD-2 | Sleeve | 12 | 6.0 | 0.22 | 2.64 | 4000 | 0.74 | 26.16 | 3.75 | 0.15 | 33.2 | |
| HYS0712MD-2 | 6.0 | 0.16 | 1.92 | 3500 | 0.62 | 21.89 | 2.78 | 0.11 | 31.3 | |||
| HYS0712LD-2 | 6.0 | 0.11 | 1.32 | 3000 | 0.56 | 19.92 | 2.32 | 0.09 | 29.5 | |||
| HYB0712HD-2 | Ball | 6.0 | 0.22 | 2.64 | 4000 | 0.74 | 26.16 | 3.75 | 0.15 | 33.2 | ||
| HYB0712MD-2 | 6.0 | 0.16 | 1.92 | 3500 | 0.62 | 21.89 | 2.78 | 0.11 | 31.3 | |||
| HYB0712LD-2 | 6.0 | 0.11 | 1.32 | 3000 | 0.56 | 19.92 | 2.32 | 0.09 | 29.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
