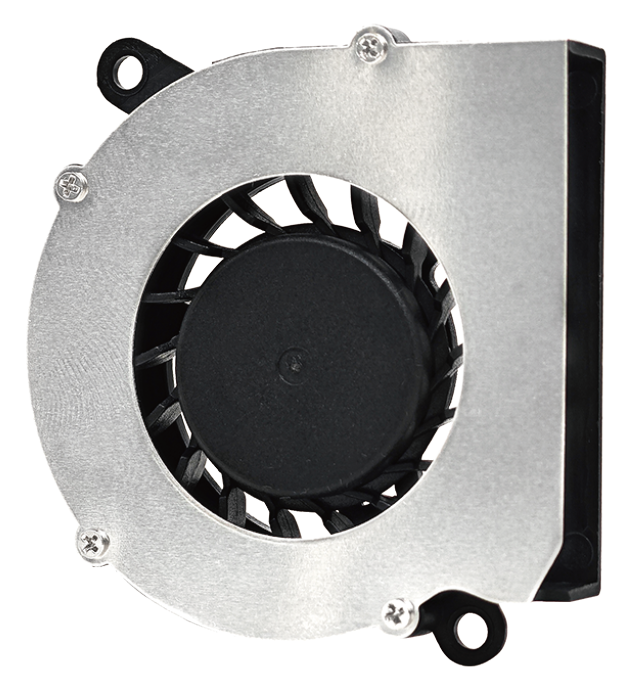

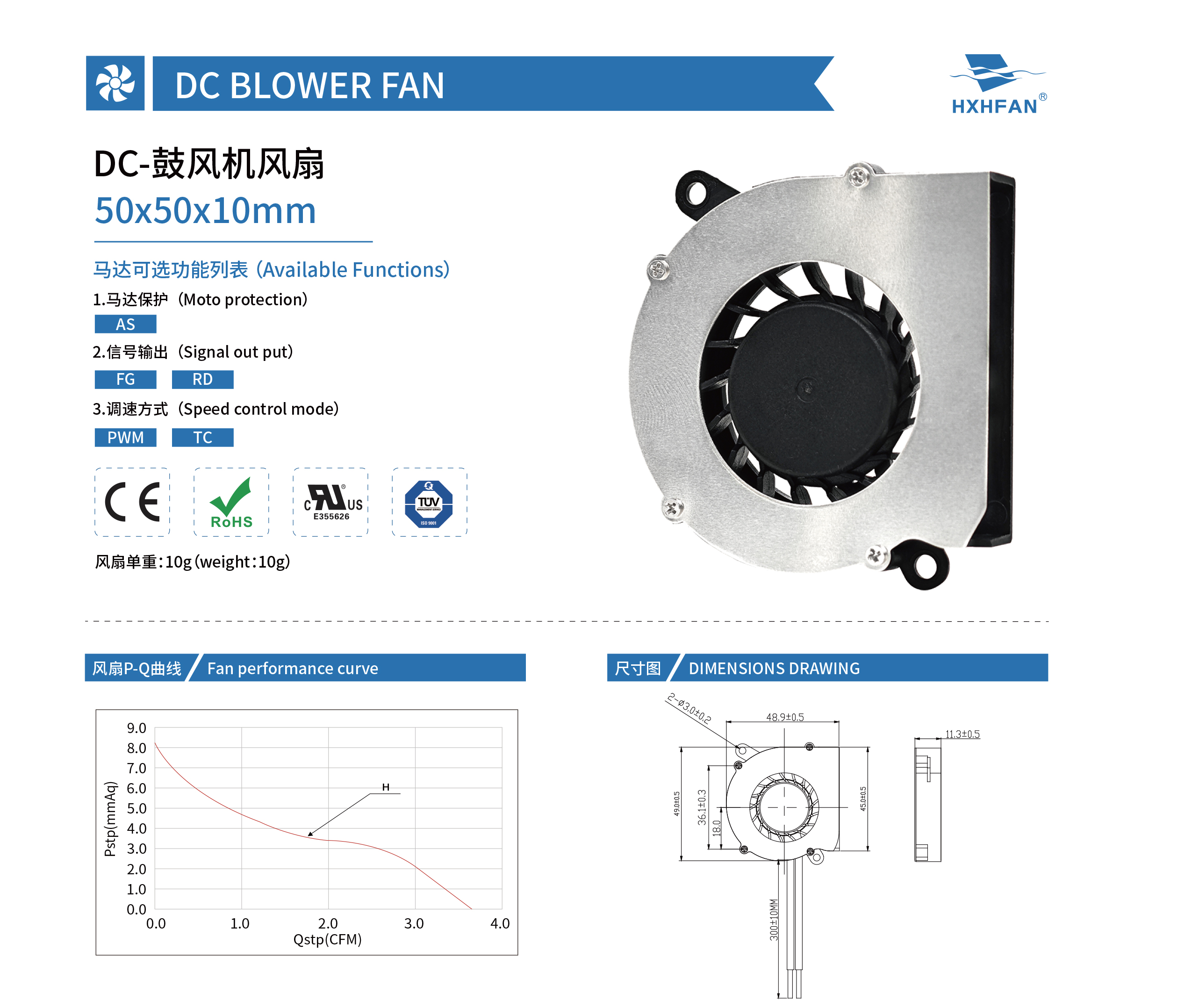

| 50×50×10MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBB0505HG | Ball | 5 | 4.0 | 0.15 | 0.75 | 4800 | 0.10 | 3.65 | 8.23 | 0.32 | 27.3 | |
| HBB0512HG | Ball | 12 | 6.0 | 0.25 | 3.00 | 4800 | 0.10 | 3.65 | 8.23 | 0.32 | 27.3 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
