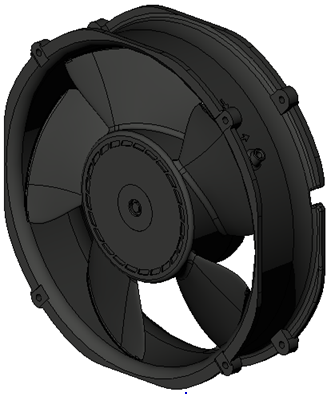

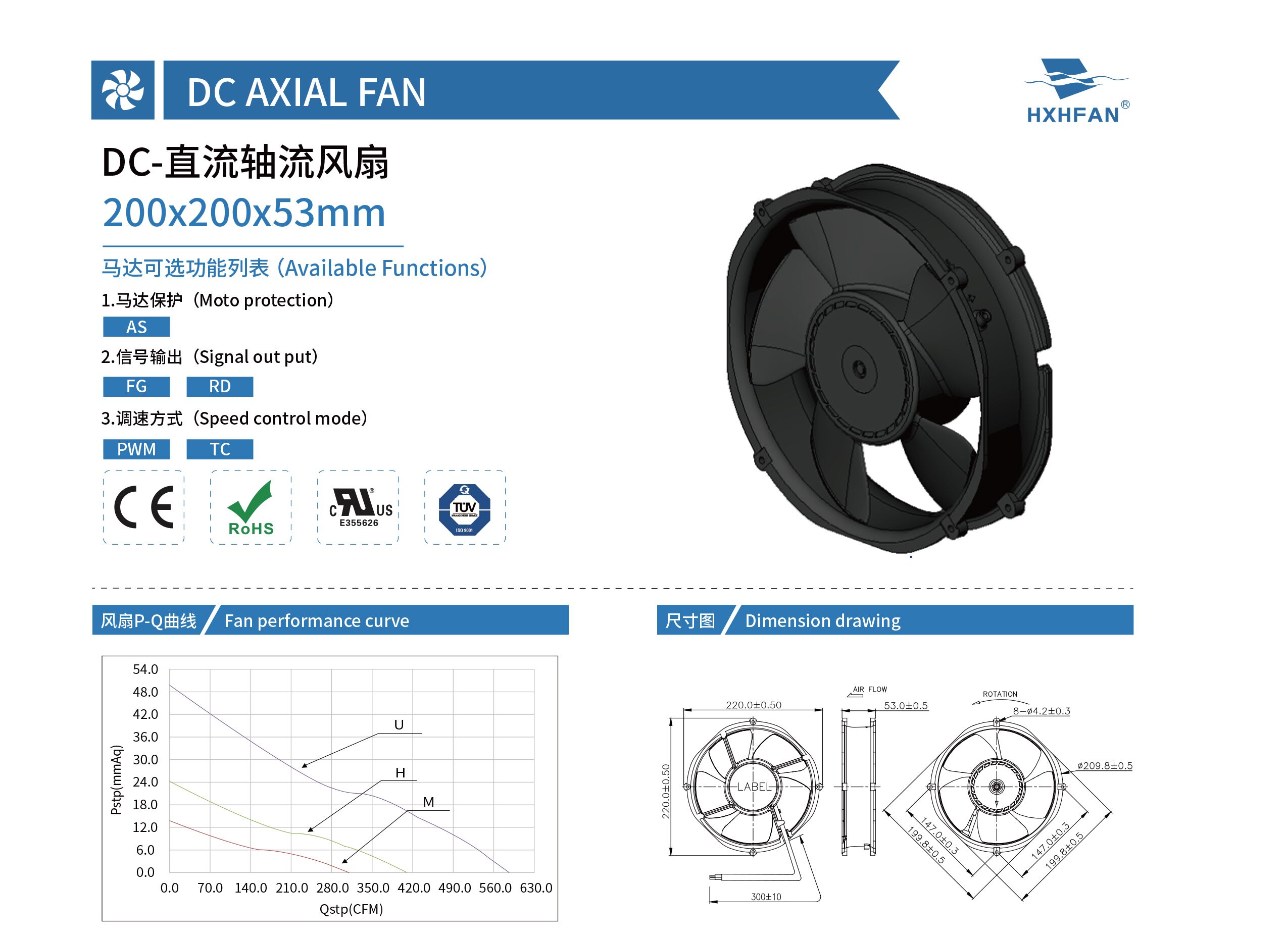

| 200×200×53MM(铝框PBT叶) | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB20024UU | -A | Ball | 24 | 12.0 | 3.03 | 72.72 | 5500 | 16.62 | 587.20 | 49.90 | 1.96 | 63.8 |
| HDB20024HU | -A | Ball | 12.0 | 1.16 | 27.84 | 3900 | 11.60 | 410.00 | 24.30 | 0.96 | 59.9 | |
| HDB20024MU | -A | Ball | 12.0 | 0.88 | 21.12 | 3500 | 8.76 | 309.60 | 13.90 | 0.55 | 58.2 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
