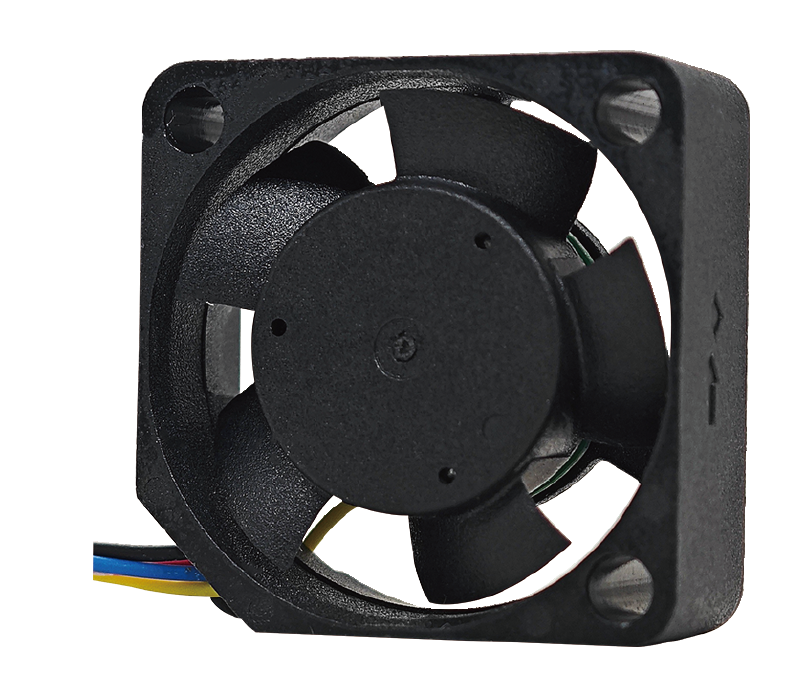

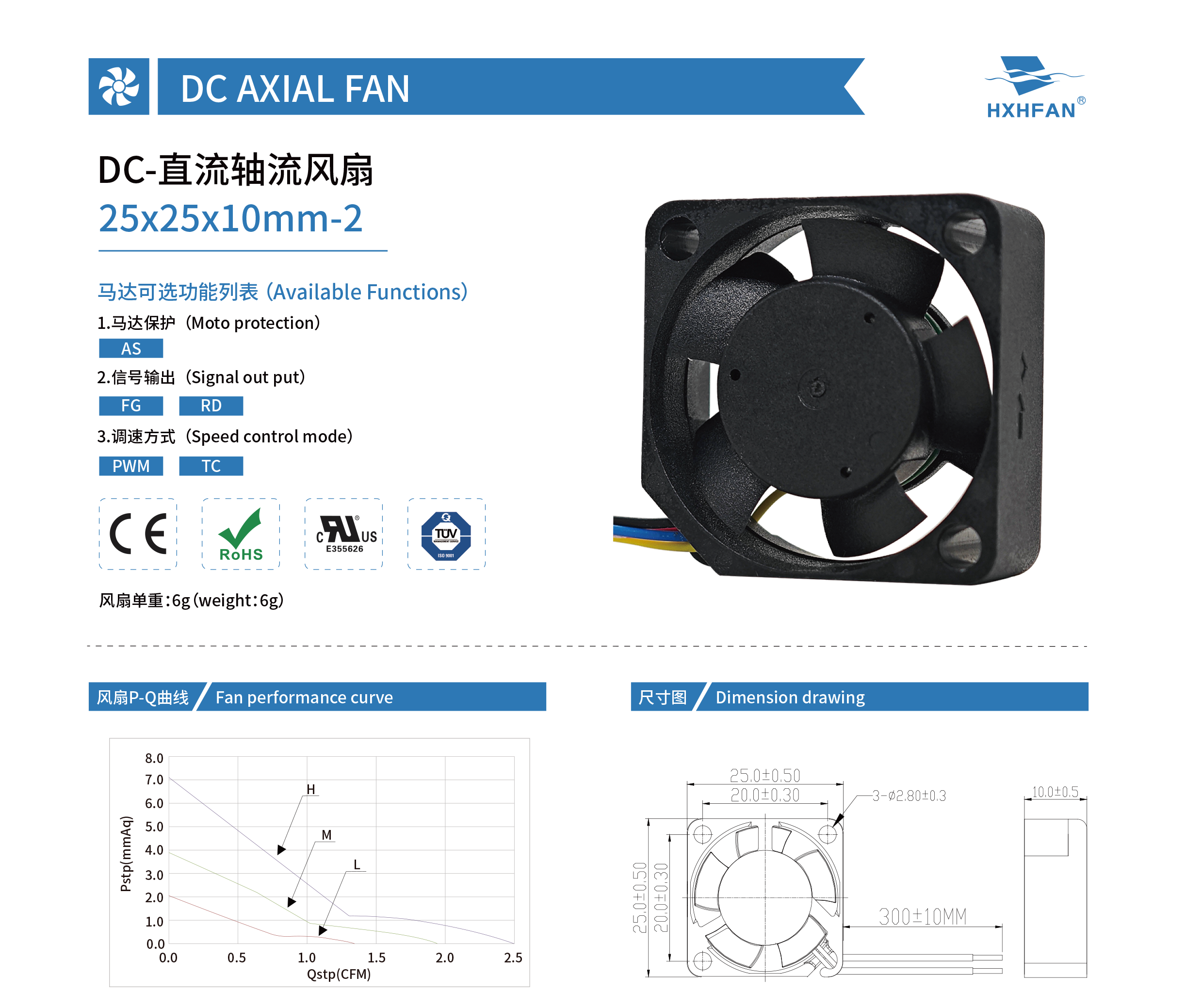

| 25*25*10MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH2505HG-2 | Hydraulic | 5 | 4.0 | 0.18 | 0.90 | 13000 | 0.07 | 2.48 | 6.95 | 0.27 | 23.3 | |
| HDH2505MG-2 | 4.0 | 0.12 | 0.60 | 10000 | 0.05 | 1.93 | 3.86 | 0.15 | 17.8 | |||
| HDH2505LG-2 | 4.0 | 0.10 | 0.50 | 7000 | 0.04 | 1.33 | 1.98 | 0.08 | 12.9 | |||
| HDH2512HG-2 | Hydraulic | 12 | 7.0 | 0.14 | 1.68 | 13000 | 0.07 | 2.48 | 6.95 | 0.27 | 23.3 | |
| HDH2512MG-2 | 7.0 | 0.08 | 0.96 | 10000 | 0.05 | 1.93 | 3.86 | 0.15 | 17.8 | |||
| HDH2512LG-2 | 9.0 | 0.06 | 0.72 | 7000 | 0.04 | 1.33 | 1.98 | 0.08 | 12.9 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
