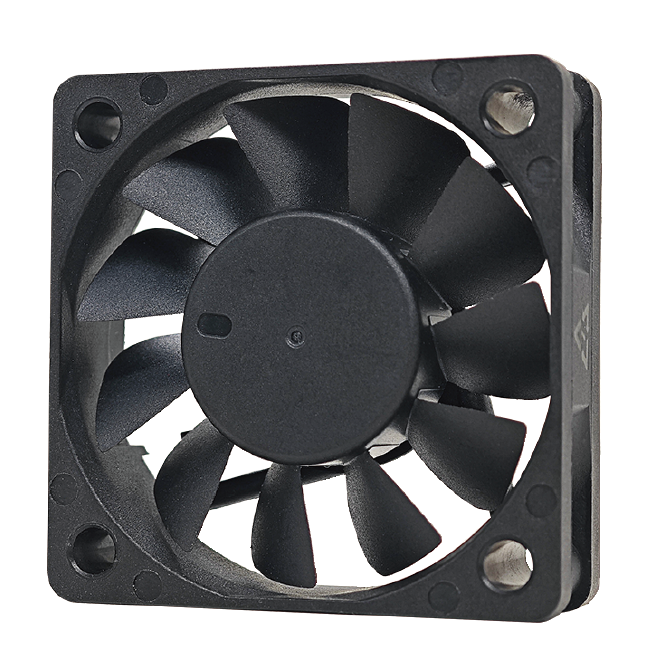

| 50*50*15MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0512VD-2 | -A | Ball | 12 | 6.0 | 0.22 | 2.64 | 7000 | 0.57 | 20.11 | 7.45 | 0.29 | 36.5 |
| HDB0512ED-2 | -A | 6.0 | 0.18 | 2.16 | 6000 | 0.49 | 17.24 | 5.47 | 0.22 | 33.2 | ||
| HDB0512UD-2 | -A | 6.0 | 0.13 | 1.56 | 5000 | 0.41 | 14.36 | 3.80 | 0.15 | 29.2 | ||
| HDB0524VD-2 | -A | Ball | 24 | 12.0 | 0.20 | 4.80 | 7000 | 0.57 | 20.11 | 7.45 | 0.29 | 36.5 |
| HDB0524ED-2 | -A | 12.0 | 0.16 | 3.84 | 6000 | 0.49 | 17.24 | 5.47 | 0.22 | 33.2 | ||
| HDB0524UD-2 | -A | 12.0 | 0.12 | 2.88 | 5000 | 0.41 | 14.36 | 3.80 | 0.15 | 29.2 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
