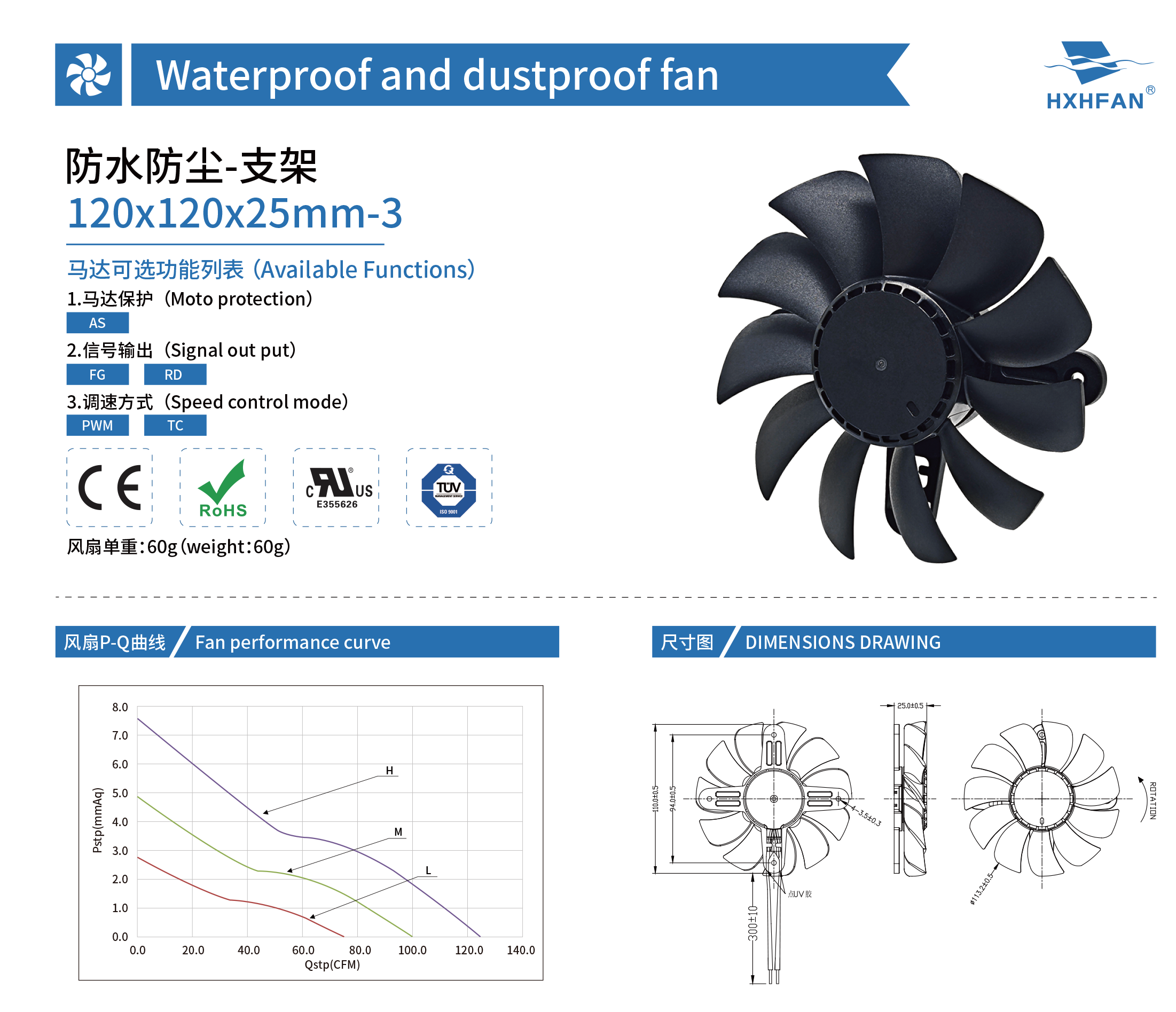

| Waterproof and dustproof fan | ||||||||||||
| 120×120×25MM-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYB1212HA-3 | IP68 | Ball | 12 | 5.0 | 0.55 | 6.60 | 2500 | 3.50 | 123.68 | 7.58 | 0.30 | 40.3 |
| HYB1212MA-3 | IP68 | 5.0 | 0.42 | 5.04 | 2000 | 2.80 | 98.94 | 4.85 | 0.19 | 35.5 | ||
| HYB1212LA-3 | IP68 | 5.0 | 0.32 | 3.84 | 1500 | 2.10 | 74.21 | 2.73 | 0.11 | 29.2 | ||
| HYB1224HA-3 | IP68 | Ball | 24 | 12.0 | 0.34 | 8.16 | 2500 | 3.50 | 123.68 | 7.58 | 0.30 | 40.3 |
| HYB1224MA-3 | IP68 | 12.0 | 0.26 | 6.24 | 2000 | 2.80 | 98.94 | 4.85 | 0.19 | 35.5 | ||
| HYB1224LA-3 | IP68 | 12.0 | 0.20 | 4.80 | 1500 | 2.10 | 74.21 | 2.73 | 0.11 | 29.2 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
