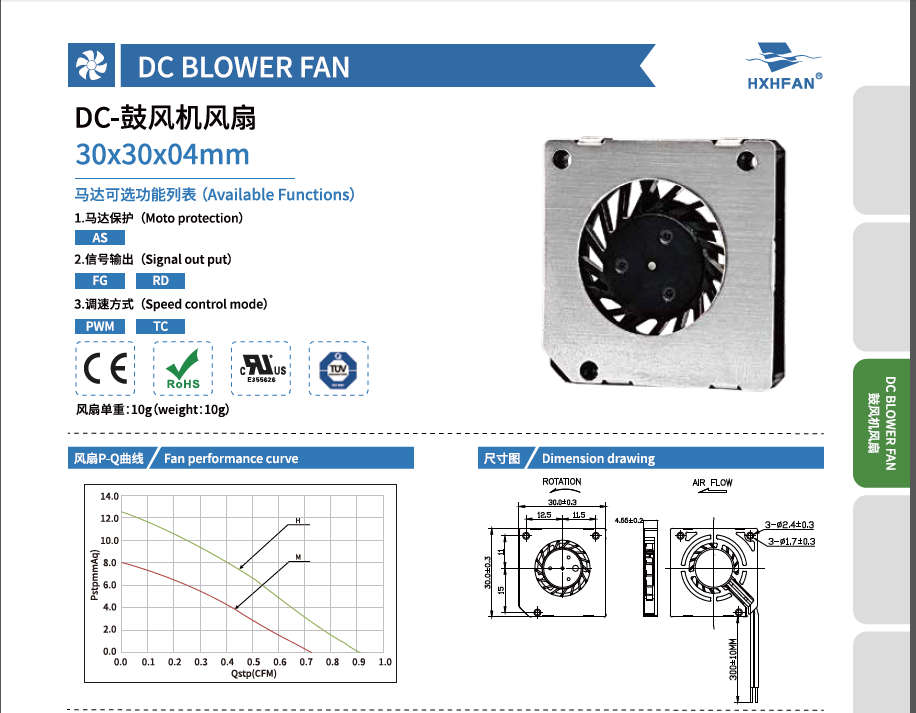

| 30×30×04MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise （0.3M) | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH0305HV | Hydraulic | 5 | 4.0 | 0.15 | 0.75 | 10000 | 0.03 | 0.91 | 12.42 | 0.49 | 42.2 | |
| HBH0305MV | 4.0 | 0.12 | 0.60 | 8000 | 0.02 | 0.73 | 7.95 | 0.31 | 37.3 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
