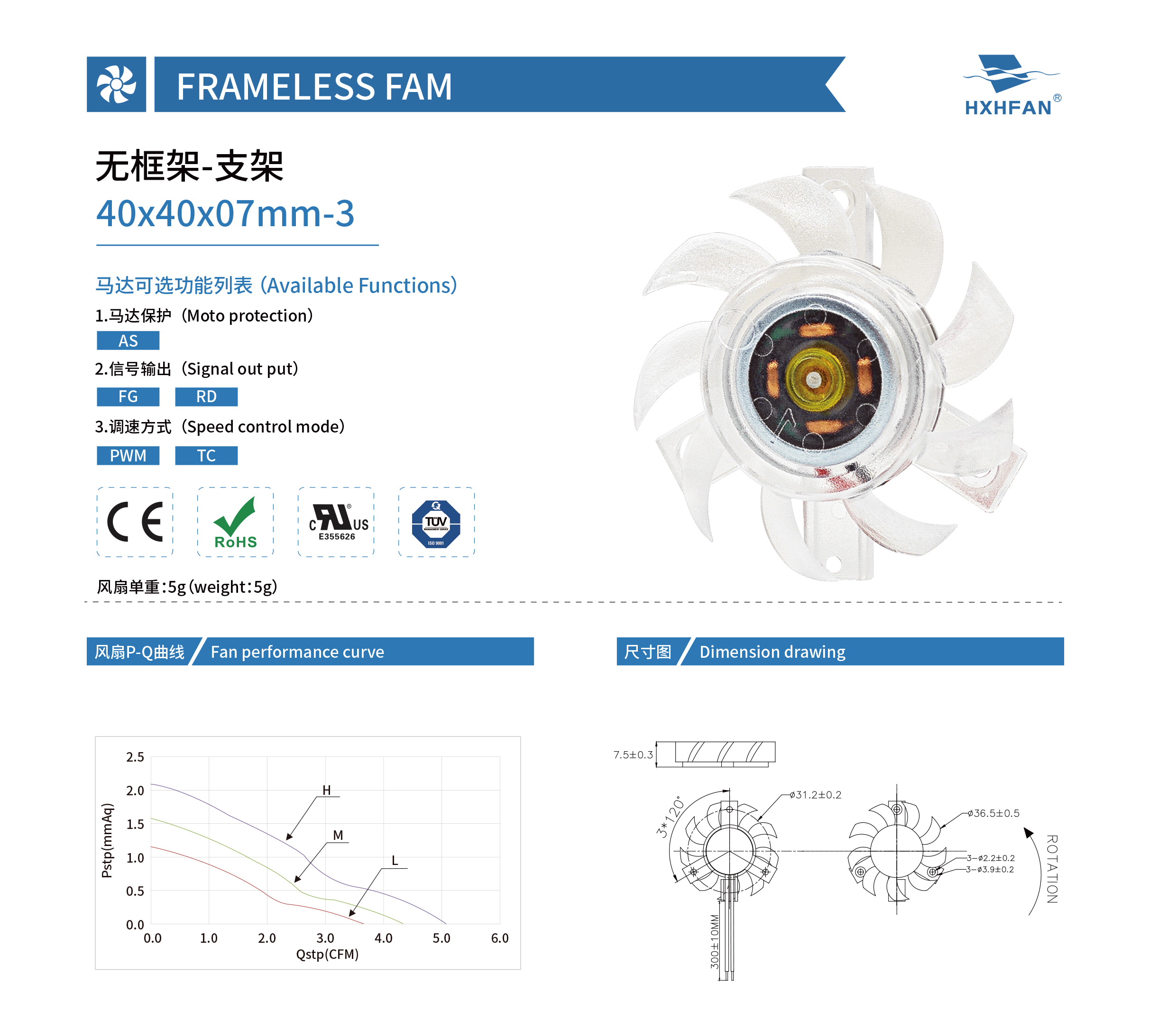

| 40*40*07MM-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH0405HQ-3 | Hydraulic | 5 | 4.0 | 0.15 | 0.75 | 7000 | 0.14 | 5.06 | 2.09 | 0.08 | 30.7 | |
| HYH0405MQ-3 | 4.0 | 0.13 | 0.65 | 6000 | 0.12 | 4.31 | 1.56 | 0.06 | 27.1 | |||
| HYH0405LQ-3 | 4.0 | 0.11 | 0.55 | 5000 | 0.10 | 3.63 | 1.14 | 0.04 | 23.1 | |||
| HYH0412HQ-3 | Hydraulic | 12 | 9.0 | 0.13 | 1.56 | 7000 | 0.14 | 5.06 | 2.09 | 0.08 | 30.7 | |
| HYH0412MQ-3 | 9.0 | 0.09 | 1.08 | 6000 | 0.12 | 4.31 | 1.56 | 0.06 | 27.1 | |||
| HYH0412LQ-3 | 9.0 | 0.07 | 0.84 | 5000 | 0.10 | 3.63 | 1.14 | 0.04 | 23.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
