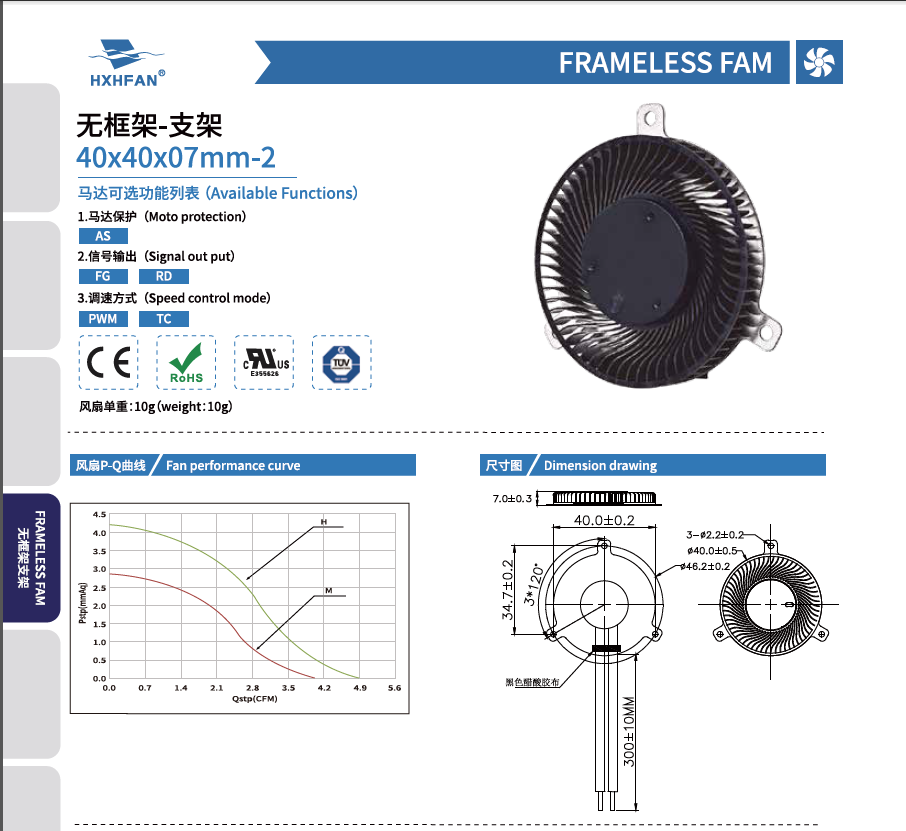

| 40×40×07MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH0405HQ-2 | Hydraulic | 5 | 4.5 | 0.29 | 1.45 | 5100 | 0.14 | 4.90 | 4.20 | 0.17 | 35.5 | |
| HYH0405MQ-2 | Hydraulic | 4.5 | 0.22 | 1.10 | 4200 | 0.11 | 4.00 | 2.86 | 0.11 | 31.3 | ||
| HYH0412HQ-2 | Hydraulic | 12 | 4.5 | 0.23 | 2.76 | 4800 | 0.13 | 4.61 | 3.72 | 0.15 | 34.2 | |
| HYH0412MQ-2 | Hydraulic | 4.5 | 0.18 | 2.16 | 3600 | 0.10 | 3.46 | 2.09 | 0.08 | 27.9 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
