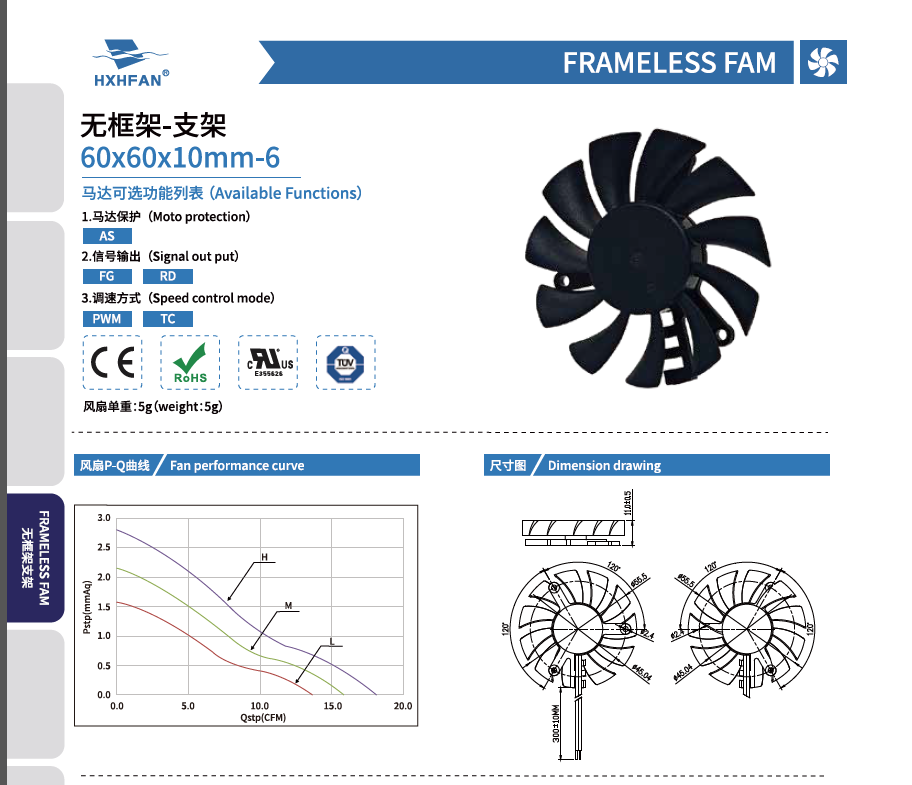

| 60×60×10MM-6 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH0612HG-6 | Hydraulic | 12 | 6.0 | 0.22 | 2.64 | 4000 | 0.51 | 18.01 | 2.81 | 0.11 | 33.3 | |
| HYH0612MG-6 | 6.0 | 0.18 | 2.16 | 3500 | 0.45 | 15.76 | 2.15 | 0.08 | 30.4 | |||
| HYH0612LG-6 | 6.0 | 0.16 | 1.92 | 3000 | 0.38 | 13.51 | 1.58 | 0.06 | 27.1 | |||
| HYB0612HG-6 | Ball | 6.0 | 0.22 | 2.64 | 4000 | 0.51 | 18.01 | 2.81 | 0.11 | 33.3 | ||
| HYB0612MG-6 | 6.0 | 0.18 | 2.16 | 3500 | 0.45 | 15.76 | 2.15 | 0.08 | 30.4 | |||
| HYB0612LG-6 | 6.0 | 0.16 | 1.92 | 3000 | 0.38 | 13.51 | 1.58 | 0.06 | 27.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
