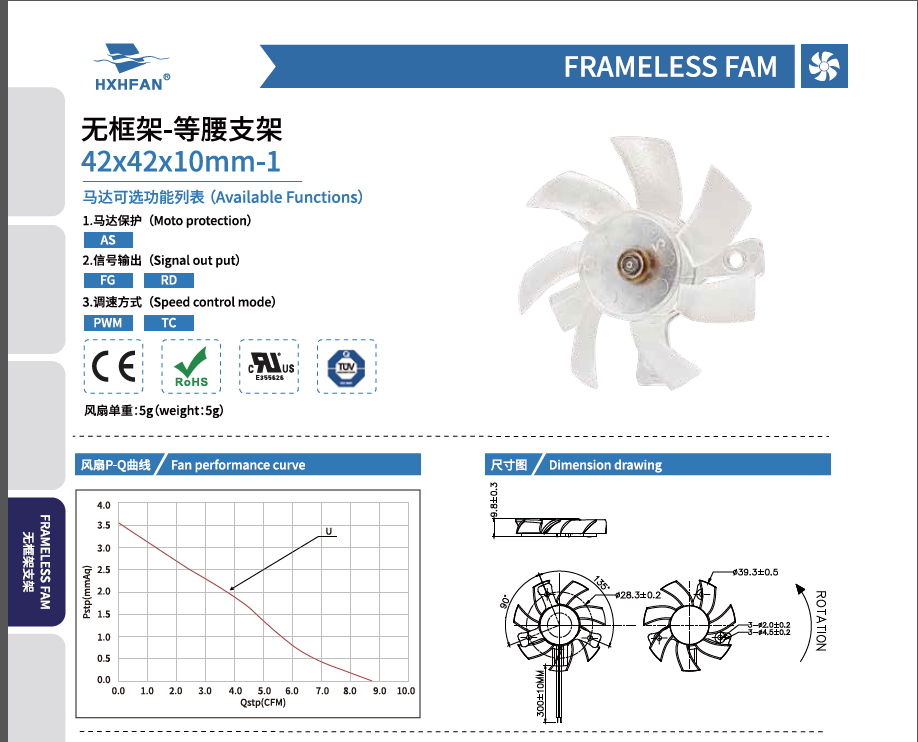

| 42×42×10MM-1等腰支架 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH4205UG-1 | Hydraulic | 5 | 4.0 | 0.33 | 1.65 | 6700 | 0.25 | 8.74 | 3.52 | 0.14 | 37.0 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
