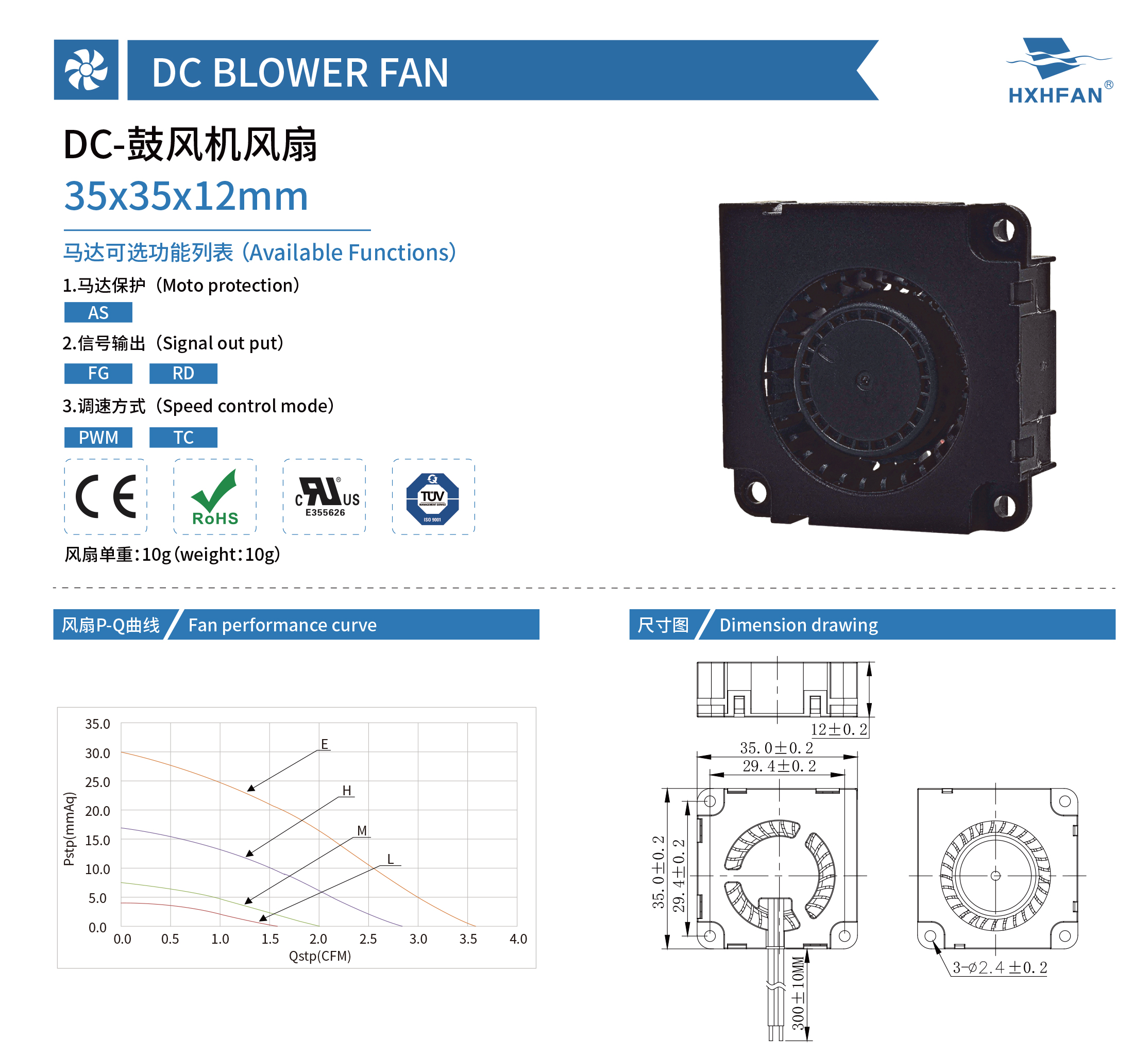

| 35×35×12MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBB3512EE | Ball | 12 | 6.0 | 0.30 | 3.60 | 10000 | 0.10 | 3.57 | 30.00 | 1.18 | 40.3 | |
| HBB3512HE | 6.0 | 0.25 | 3.00 | 8000 | 0.08 | 2.83 | 16.98 | 0.67 | 33.8 | |||
| HBB3512ME | 6.0 | 0.20 | 2.40 | 6000 | 0.06 | 2.01 | 7.61 | 0.30 | 25.2 | |||
| HBB3512LE | 6.0 | 0.15 | 1.80 | 5000 | 0.04 | 1.58 | 4.13 | 0.16 | 21.2 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
