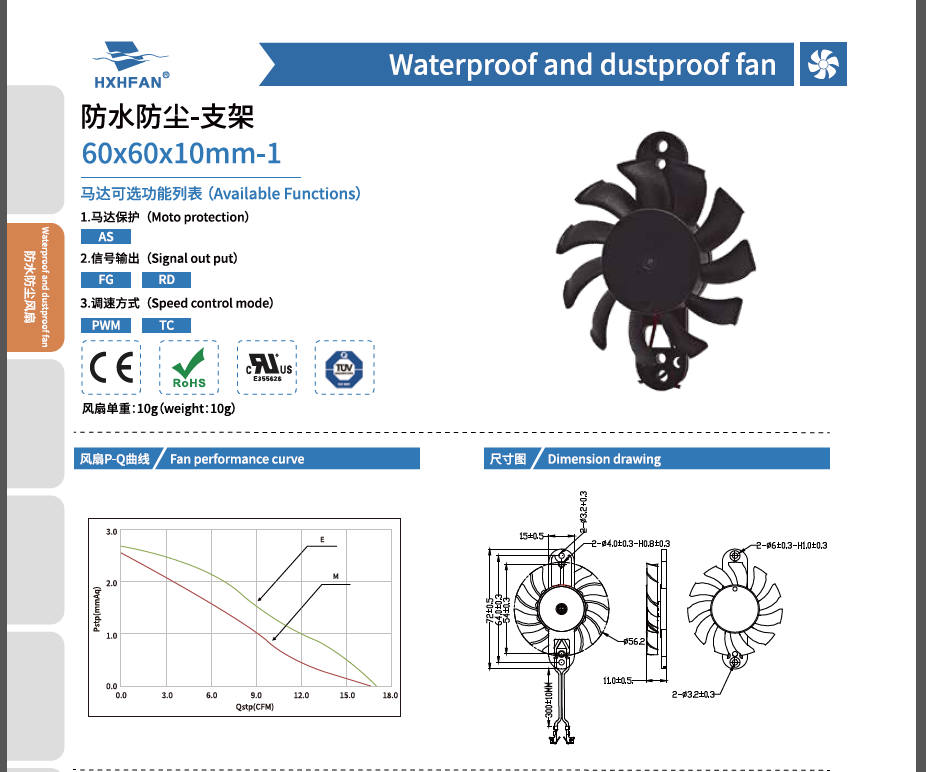

| 60×60×10MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYB0612EG-1 | IP67 | Ball | 12 | 6.0 | 0.20 | 2.40 | 4300 | 0.48 | 17.04 | 2.67 | 0.11 | 27.5 |
| HYB0612MG-1 | IP54 | 6.0 | 0.18 | 2.16 | 4200 | 0.47 | 16.64 | 2.55 | 0.10 | 27.0 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
