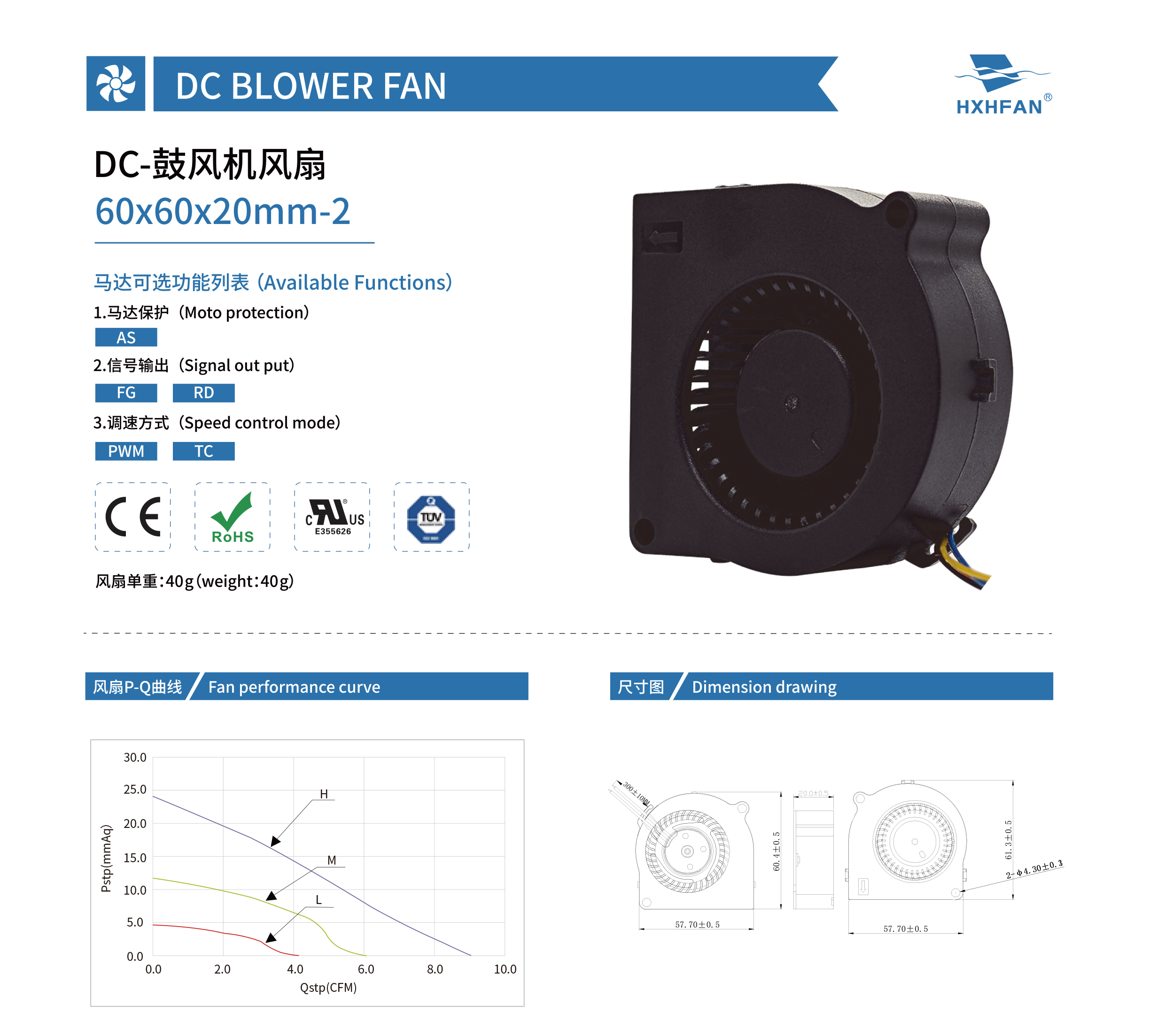

| 60*60*20MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0612HC-2 | Sleeve | 12 | 5.0 | 0.32 | 3.84 | 6000 | 0.25 | 9.01 | 23.94 | 0.94 | 47.8 | |
| HBS0612MC-2 | 5.0 | 0.24 | 2.88 | 4500 | 0.17 | 6.10 | 11.75 | 0.46 | 39.5 | |||
| HBS0612LC-2 | 5.0 | 0.18 | 2.16 | 3200 | 0.12 | 4.12 | 4.67 | 0.18 | 28.1 | |||
| HBB0612HC-2 | Ball | 5.0 | 0.32 | 3.84 | 6000 | 0.25 | 9.01 | 23.94 | 0.94 | 47.8 | ||
| HBB0612MC-2 | 5.0 | 0.24 | 2.88 | 4500 | 0.17 | 6.10 | 11.75 | 0.46 | 39.5 | |||
| HBB0612LC-2 | 5.0 | 0.18 | 2.16 | 3200 | 0.12 | 4.12 | 4.67 | 0.18 | 28.1 | |||
| HBS0624HC-2 | Sleeve | 24 | 12.0 | 0.20 | 4.80 | 6000 | 0.25 | 9.01 | 23.94 | 0.94 | 47.8 | |
| HBS0624MC-2 | 12.0 | 0.15 | 3.60 | 4500 | 0.17 | 6.10 | 11.75 | 0.46 | 39.5 | |||
| HBS0624LC-2 | 12.0 | 0.11 | 2.64 | 3200 | 0.12 | 4.12 | 4.67 | 0.18 | 28.1 | |||
| HBB0624HC-2 | Ball | 12.0 | 0.20 | 4.80 | 6000 | 0.25 | 9.01 | 23.94 | 0.94 | 47.8 | ||
| HBB0624MC-2 | 12.0 | 0.15 | 3.60 | 4500 | 0.17 | 6.10 | 11.75 | 0.46 | 39.5 | |||
| HBB0624LC-2 | 12.0 | 0.11 | 2.64 | 3200 | 0.12 | 4.12 | 4.67 | 0.18 | 28.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
