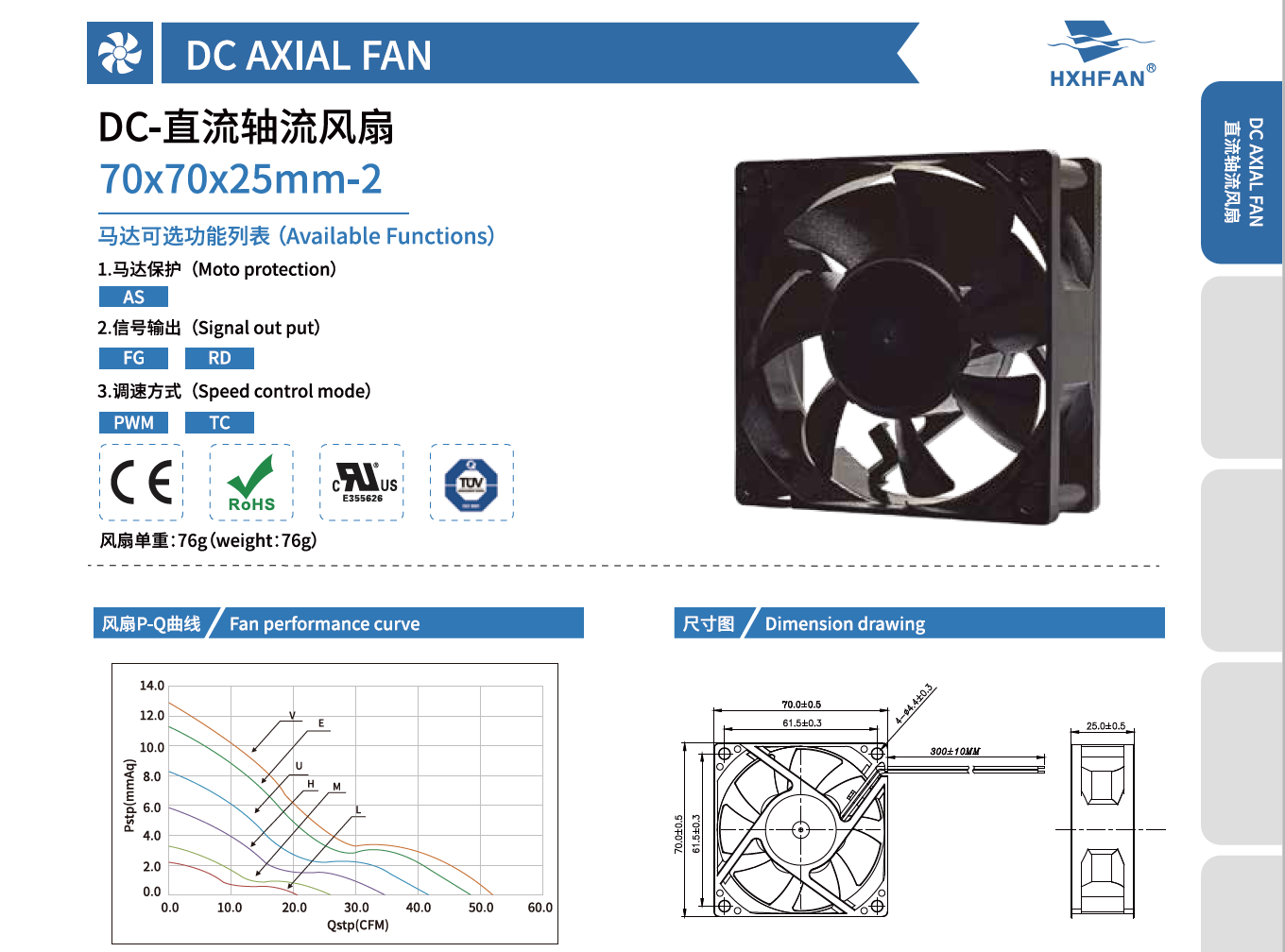

| 70*70*25mm-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0712HA-2 | Hydraulic | 12 | 5.0 | 0.23 | 2.76 | 4000 | 0.98 | 34.57 | 5.74 | 0.23 | 40.1 | |
| HDH0712MA-2 | 5.0 | 0.15 | 1.80 | 3000 | 0.73 | 25.93 | 3.23 | 0.13 | 33.8 | |||
| HDH0712LA-2 | 5.0 | 0.12 | 1.44 | 2400 | 0.59 | 20.74 | 2.07 | 0.08 | 29.0 | |||
| HDB0712VA-2 | -A | Ball | 5.0 | 0.55 | 6.60 | 6000 | 1.47 | 51.86 | 12.91 | 0.51 | 48.9 | |
| HDB0712EA-2 | -A | 5.0 | 0.50 | 6.00 | 5600 | 1.37 | 48.40 | 11.25 | 0.44 | 47.4 | ||
| HDB0712UA-2 | -A | 5.0 | 0.35 | 4.20 | 4800 | 1.17 | 41.49 | 8.26 | 0.33 | 44.1 | ||
| HDB0712HA-2 | 5.0 | 0.23 | 2.76 | 4000 | 0.98 | 34.57 | 5.74 | 0.23 | 40.1 | |||
| HDB0712MA-2 | 5.0 | 0.15 | 1.80 | 3000 | 0.73 | 25.93 | 3.23 | 0.13 | 33.8 | |||
| HDB0712LA-2 | 5.0 | 0.12 | 1.44 | 2400 | 0.59 | 20.74 | 2.07 | 0.08 | 29.0 | |||
| HDH0724HA-2 | Hydraulic | 24 | 12.0 | 0.16 | 3.84 | 4000 | 0.98 | 34.57 | 5.74 | 0.23 | 40.1 | |
| HDH0724MA-2 | 12.0 | 0.11 | 2.64 | 3000 | 0.73 | 25.93 | 3.23 | 0.13 | 33.8 | |||
| HDH0724LA-2 | 12.0 | 0.08 | 1.92 | 2400 | 0.59 | 20.74 | 2.07 | 0.08 | 29.0 | |||
| HDB0724VA-2 | -A | Ball | 12.0 | 0.38 | 9.12 | 6000 | 1.47 | 51.86 | 12.91 | 0.51 | 48.9 | |
| HDB0724EA-2 | -A | 12.0 | 0.33 | 7.92 | 5600 | 1.37 | 48.40 | 11.25 | 0.44 | 47.4 | ||
| HDB0724UA-2 | -A | 12.0 | 0.25 | 6.00 | 4800 | 1.17 | 41.49 | 8.26 | 0.33 | 44.1 | ||
| HDB0724HA-2 | 12.0 | 0.16 | 3.84 | 4000 | 0.98 | 34.57 | 5.74 | 0.23 | 40.1 | |||
| HDB0724MA-2 | 12.0 | 0.11 | 2.64 | 3000 | 0.73 | 25.93 | 3.23 | 0.13 | 33.8 | |||
| HDB0724LA-2 | 12.0 | 0.08 | 1.92 | 2400 | 0.59 | 20.74 | 2.07 | 0.08 | 29.0 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
