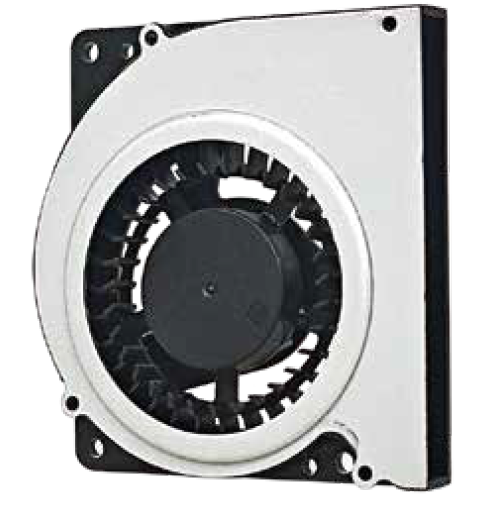

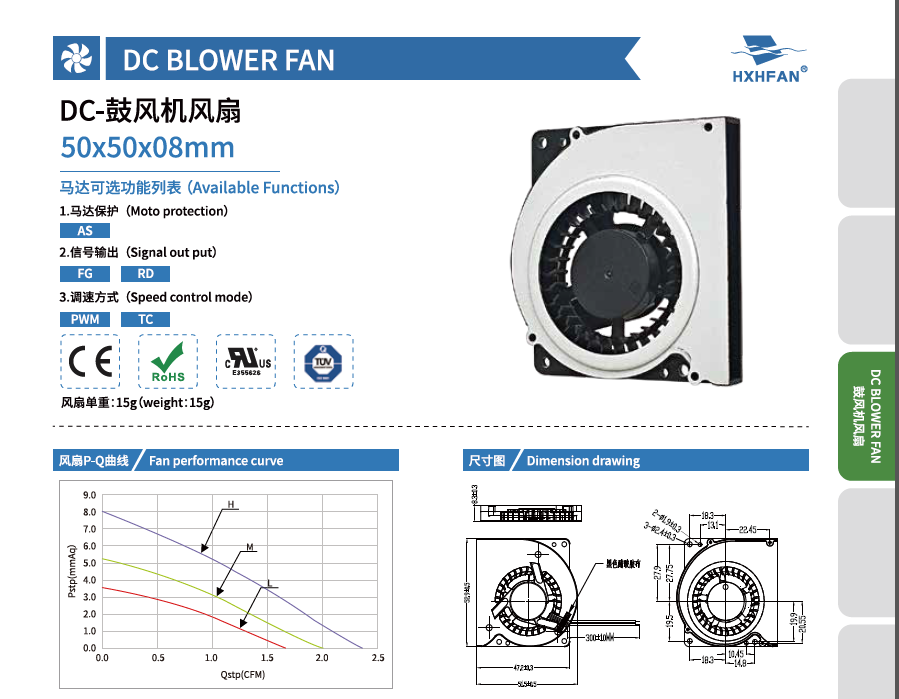

| 50×50×08MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH0505HJ | Hydraulic | 5 | 4.0 | 0.40 | 2.00 | 4000 | 0.07 | 2.35 | 7.99 | 0.31 | 22.5 | |
| HBH0505MJ | 4.0 | 0.30 | 1.50 | 3500 | 0.06 | 1.99 | 5.25 | 0.21 | 19.6 | |||
| HBH0505LJ | 4.0 | 0.20 | 1.00 | 3000 | 0.05 | 1.66 | 3.54 | 0.14 | 18.6 | |||
| HBH0512HJ | 12 | 6.0 | 0.25 | 3.00 | 4000 | 0.07 | 2.35 | 7.99 | 0.31 | 22.5 | ||
| HBH0512MJ | 6.0 | 0.17 | 2.04 | 3500 | 0.06 | 1.99 | 5.25 | 0.21 | 19.6 | |||
| HBH0512LJ | 6.0 | 0.10 | 1.20 | 3000 | 0.05 | 1.66 | 3.54 | 0.14 | 18.6 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
