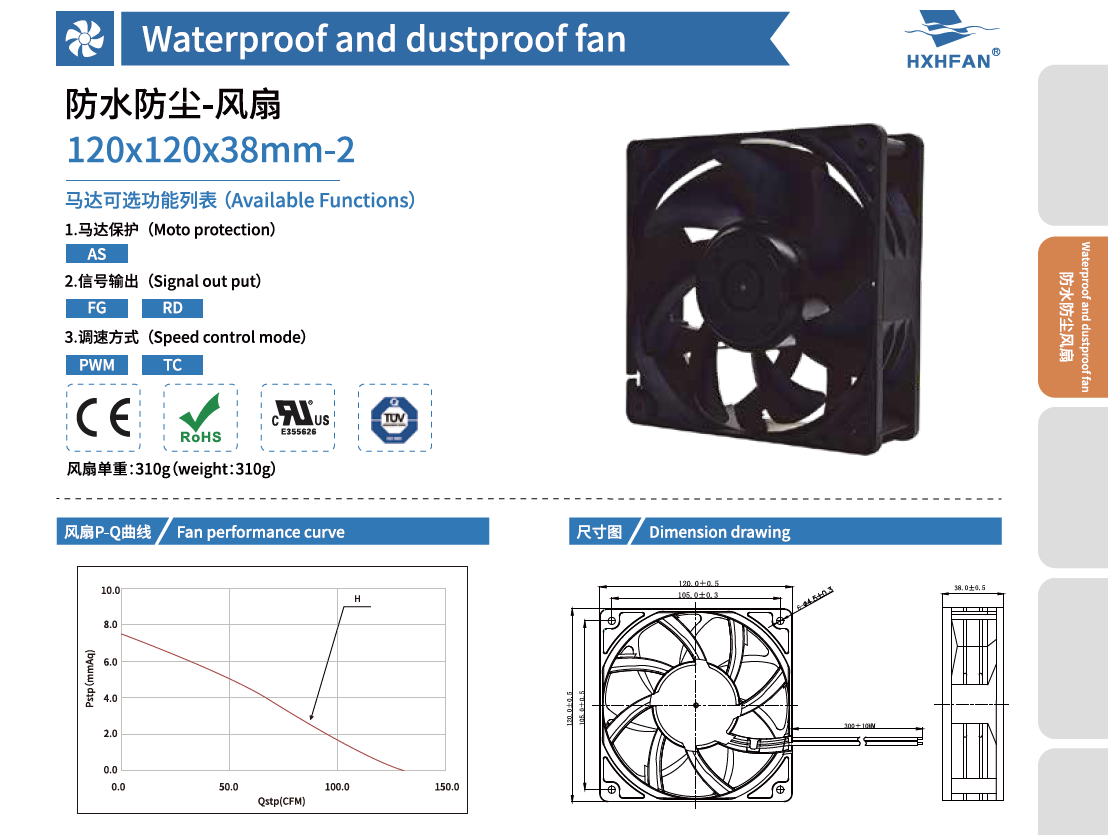

| 120×120×38MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1212HF-2 | IP68 | Ball | 12 | 6.0 | 2.00 | 24.00 | 4000 | 3.71 | 131.22 | 7.62 | 0.30 | 53.5 |
| HDB1224HF-2 | IP68 | Ball | 24 | 12.0 | 0.90 | 21.60 | 4000 | 3.71 | 131.22 | 7.62 | 0.30 | 53.5 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
