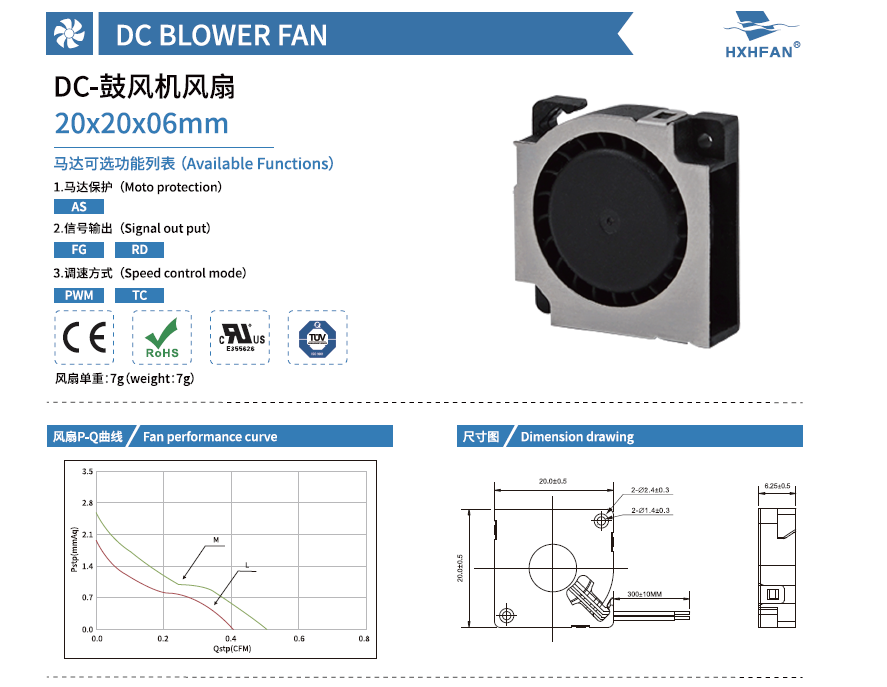

| 20×20×06mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH0205HK | -A | Hydraulic | 5 | 4.0 | 0.16 | 0.80 | 15000 | 0.02 | 0.62 | 3.14 | 0.12 | 34.5 |
| HBH0205MK | -A | 4.0 | 0.12 | 0.60 | 12000 | 0.01 | 0.51 | 2.57 | 0.10 | 27.5 | ||
| HBH0205LK | -A | 4.0 | 0.08 | 0.40 | 9000 | 0.01 | 0.41 | 1.96 | 0.08 | 21.6 | ||
| HBH0212HK | -A | Hydraulic | 12 | 6.0 | 0.11 | 1.32 | 15000 | 0.02 | 0.62 | 3.14 | 0.12 | 34.5 |
| HBH0212MK | -A | 6.0 | 0.08 | 0.96 | 12000 | 0.01 | 0.51 | 2.57 | 0.10 | 27.5 | ||
| HBH0212LK | -A | 6.0 | 0.05 | 0.60 | 9000 | 0.01 | 0.41 | 1.96 | 0.08 | 21.6 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
