92x92x38mm-2
92x92x38mm-2

92x92x38mm-2

产品简介:

尺寸:

92x92x38mm-2

材质: 环保防火PBT UL 94V-0
工作电压:  12V 24V
轴承结构:   双滚珠轴承
产品寿命:   7万小时
输出功能: FG功能  RD功能 PWM功能
运行温度: -10℃ ~70℃
贮存温度: -40℃ ~75℃
点击咨询
点击下载pdf

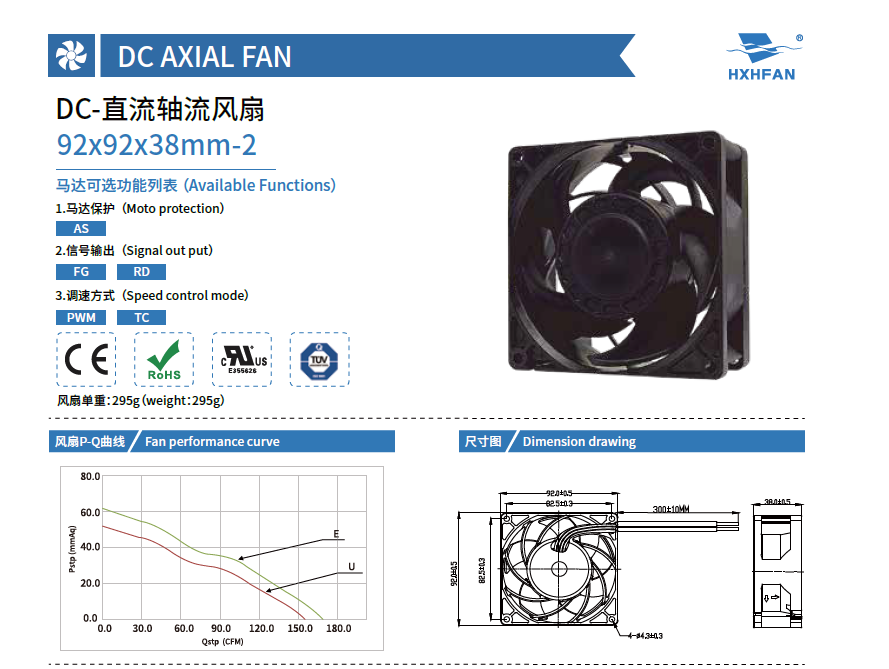

92×92×38mm-2
Model Bearing Rated Voltage Startup Voltage Current Power Speed Air Flow Static Pressure Noise
Part No. Function System VDC VDC A W RPM m3/min CFM mmH2O INH2O dBA
HDB0912VF-2 -A Ball 12 6.0 4.96 59.52 13000 5.20 185.70 73.76 2.90 71.8
HDB0912EF-2 -A 6.0 4.00 48.00 12000 4.76 170.00 61.85 2.44 70.0
HDB0912UF-2 -A 6.0 3.20 38.40 11000 4.37 155.90 51.97 2.05 68.0
HDB0924VF-2 -A Ball 24 12.0 2.48 59.52 13000 5.20 185.70 73.76 2.90 71.8
HDB0924EF-2 -A 12.0 2.00 48.00 12000 4.76 170.00 61.85 2.44 70.0
HDB0924UF-2 -A 12.0 1.60 38.40 11000 4.37 155.90 51.97 2.05 68.0
HDB0948VF-2 -A Ball 48 24.0 1.24 59.52 13000 5.20 185.70 73.76 2.90 71.8
HDB0948EF-2 -A 24.0 1.00 48.00 12000 4.76 170.00 61.85 2.44 70.0
HDB0948UF-2 -A 24.0 0.80 38.40 11000 4.37 155.90 51.97 2.05 68.0
