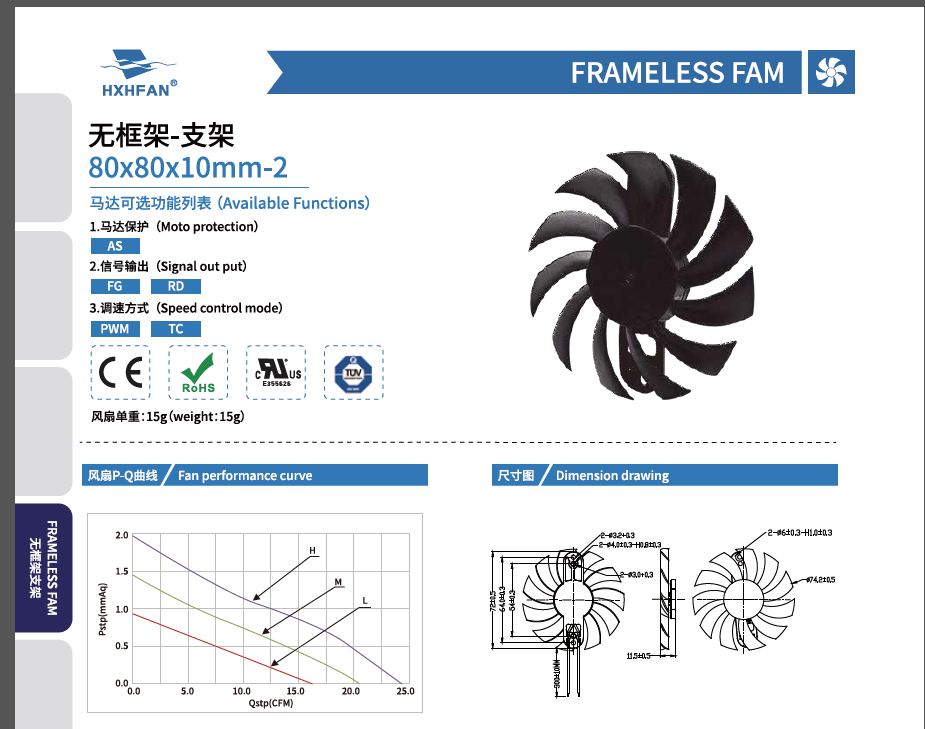

| 80x80x10mm-2 | |||||||||||||
| Frame Size(mm) | Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| 80x80x10mm | HYB0812HG-2 | Ball | 12 | 6.0 | 0.20 | 2.40 | 3000 | 0.69 | 24.28 | 1.97 | 0.08 | 27.4 | |
| HYB0812MG-2 | 6.0 | 0.15 | 1.80 | 2500 | 0.58 | 20.49 | 1.45 | 0.06 | 23.9 | ||||
| HYB0812LG-2 | 6.0 | 0.10 | 1.20 | 2000 | 0.46 | 16.13 | 0.93 | 0.04 | 20.4 | ||||
