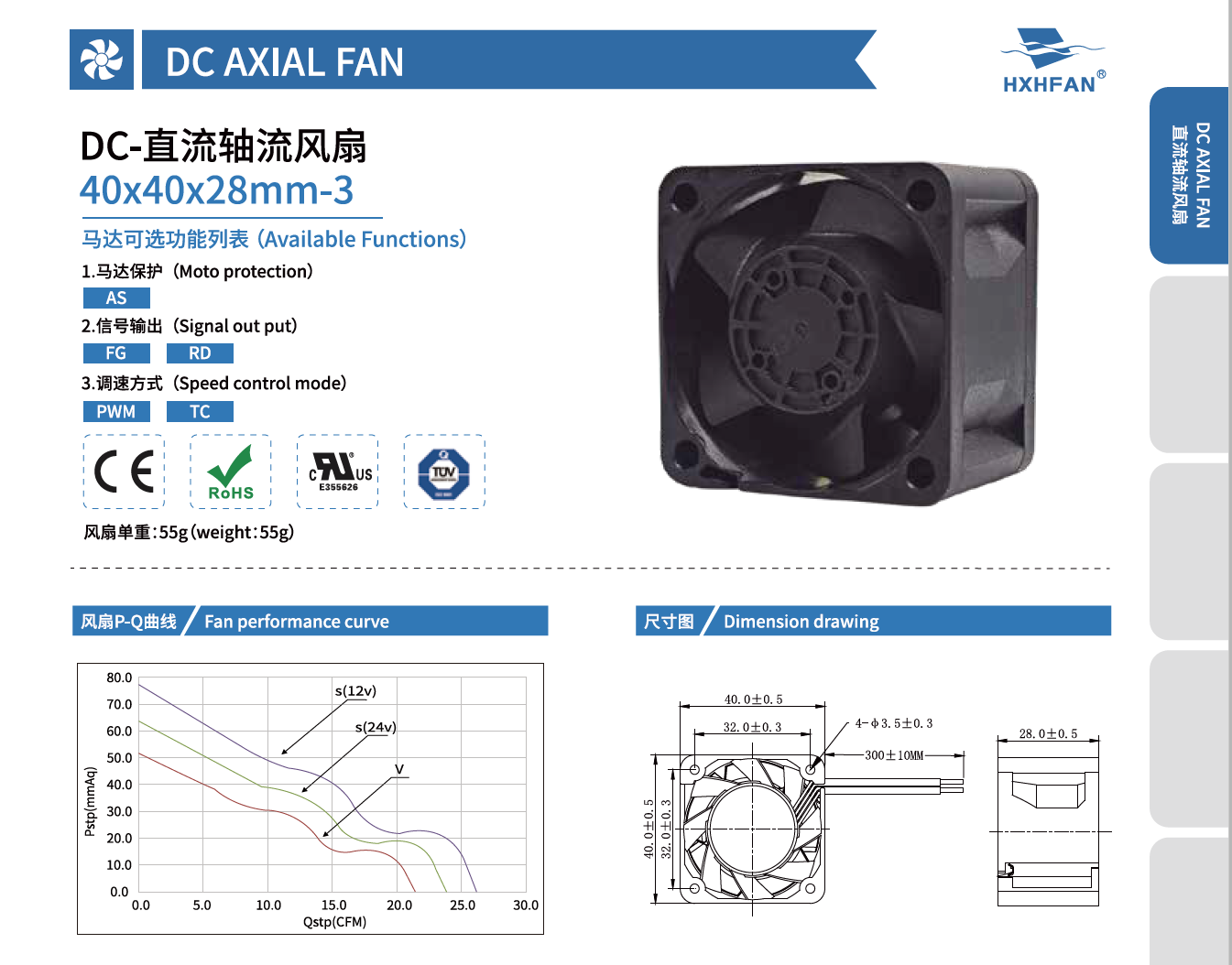

| 40*40*28mm -3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0412VB-3 | -A | Ball | 12 | 6.0 | 0.66 | 7.92 | 18000 | 0.61 | 21.43 | 51.61 | 2.03 | 58.1 |
| HDB0424VB-3 | -A | 24 | 18.0 | 0.45 | 10.80 | 18000 | 0.61 | 21.43 | 51.61 | 2.03 | 58.1 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
