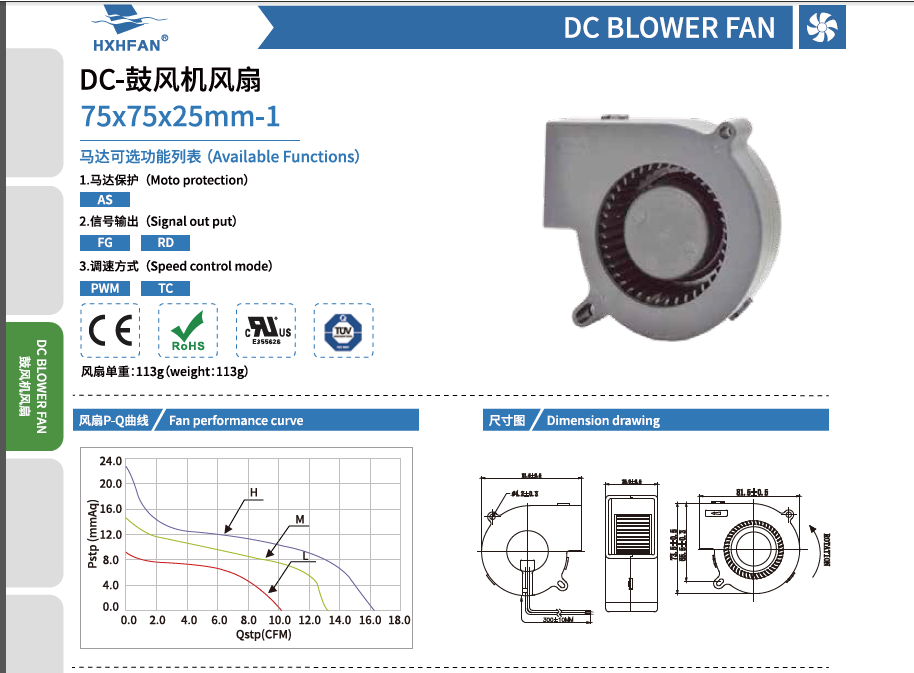

| 75x75*25-1mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS7512HA-1 | -A | Sleeve | 12 | 5.0 | 0.40 | 4.80 | 4500 | 0.46 | 16.20 | 22.81 | 0.90 | 47.1 |
| HBS7512MA-1 | 5.0 | 0.30 | 3.60 | 3500 | 0.37 | 13.20 | 14.50 | 0.57 | 40.7 | |||
| HBS7512LA-1 | 5.0 | 0.20 | 2.40 | 2500 | 0.29 | 10.20 | 8.99 | 0.35 | 31.5 | |||
| HBB7512HA-1 | BALL | 5.0 | 0.40 | 4.80 | 4500 | 0.46 | 16.20 | 22.81 | 0.90 | 47.1 | ||
| HBB7512MA-1 | 5.0 | 0.30 | 3.60 | 3500 | 0.37 | 13.20 | 14.50 | 0.57 | 40.7 | |||
| HBB7512LA-1 | 5.0 | 0.20 | 2.40 | 2500 | 0.29 | 10.20 | 8.99 | 0.35 | 31.5 | |||
| HBS7524HA-1 | -A | Sleeve | 24 | 12.0 | 0.35 | 8.40 | 4500 | 0.46 | 16.20 | 22.81 | 0.90 | 47.1 |
| HBS7524MA-1 | 12.0 | 0.25 | 6.00 | 3500 | 0.37 | 13.20 | 14.50 | 0.57 | 40.7 | |||
| HBS7524LA-1 | 12.0 | 0.15 | 3.60 | 2500 | 0.29 | 10.20 | 8.99 | 0.35 | 31.5 | |||
| HBB7524HA-1 | -A | BALL | 12.0 | 0.35 | 8.40 | 4500 | 0.46 | 16.20 | 22.81 | 0.90 | 47.1 | |
| HBB7524MA-1 | 12.0 | 0.25 | 6.00 | 3500 | 0.37 | 13.20 | 14.50 | 0.57 | 40.7 | |||
| HBB7524LA-1 | 12.0 | 0.15 | 3.60 | 2500 | 0.29 | 10.20 | 8.99 | 0.35 | 31.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
