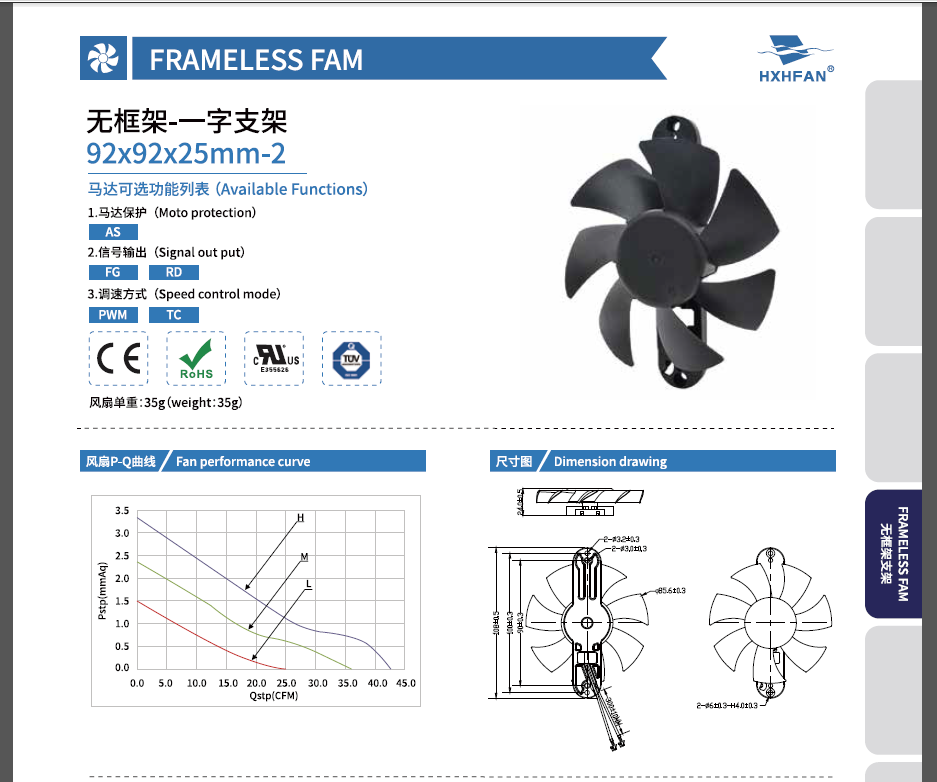

| 92×92×25MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYB0912HA-2 | Ball | 12 | 6.0 | 0.23 | 2.76 | 2800 | 1.21 | 42.74 | 3.27 | 0.13 | 34.6 | |
| HYB0912MA-2 | 6.0 | 0.19 | 2.28 | 2400 | 1.02 | 35.97 | 2.36 | 0.09 | 31.4 | |||
| HYB0912LA-2 | 6.0 | 0.16 | 1.92 | 2000 | 0.70 | 24.88 | 1.48 | 0.06 | 29.6 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
