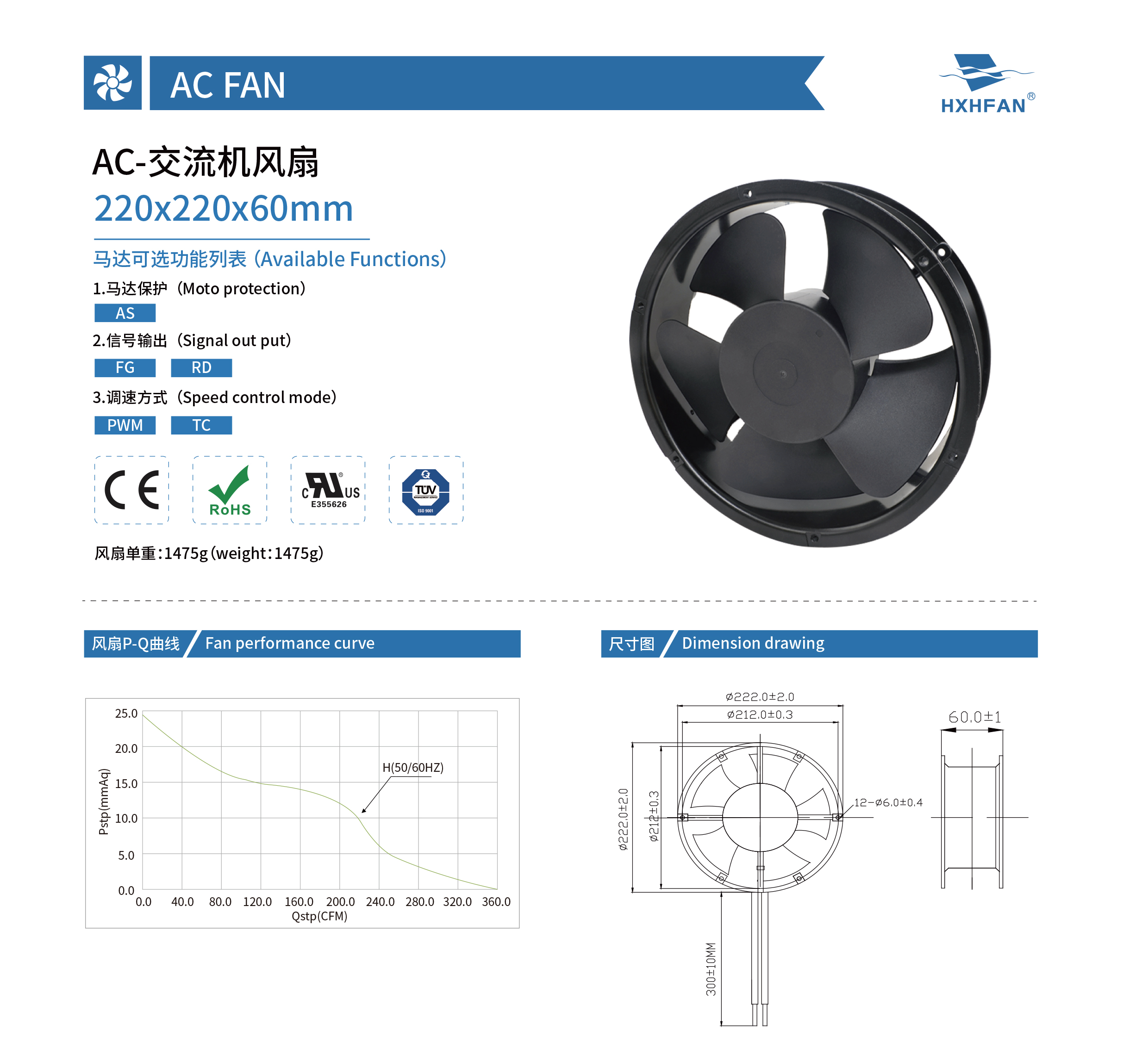

| 220×220×60mm | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | aFreq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB22220HW | W/T | Ball | 220 | 200-240 | 50/60 | 0.35 | 2600 | 10.2 | 360 | 24.5 | 0.96 | 65 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
