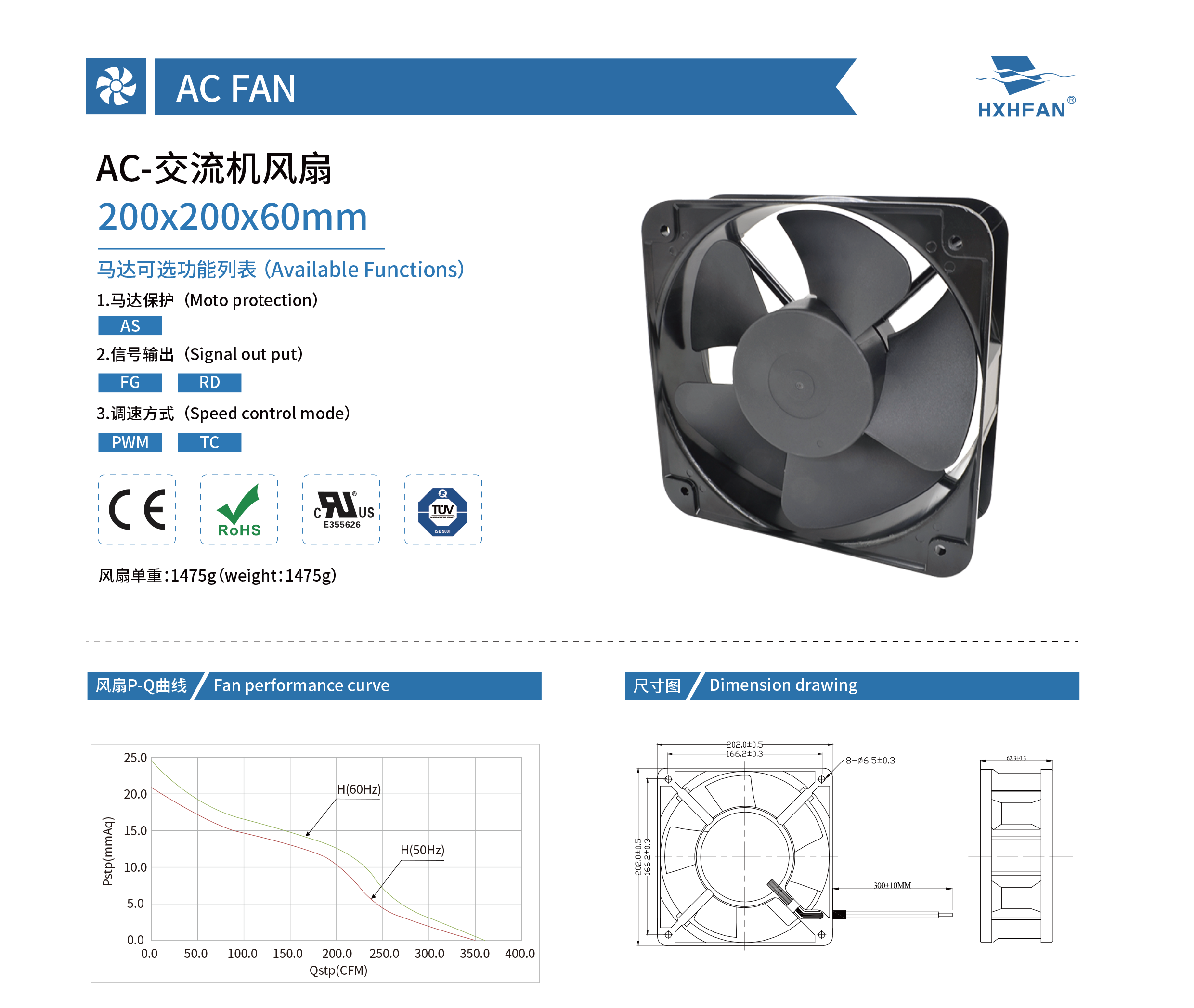

| 200×200×60MM | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB20110HW | W/T | Ball | 110 | 100-125 | 50/60 | 0.40 | 2300/2700 | 9.9/10.2 | 350/360 | 20.8/24.5 | 0.82/0.96 | 54/65 |
| HAB20220HW | W/T | Ball | 220 | 200-240 | 50/60 | 0.35 | 2300/2700 | 9.9/10.2 | 350/360 | 20.8/24.5 | 0.82/0.96 | 54/65 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
