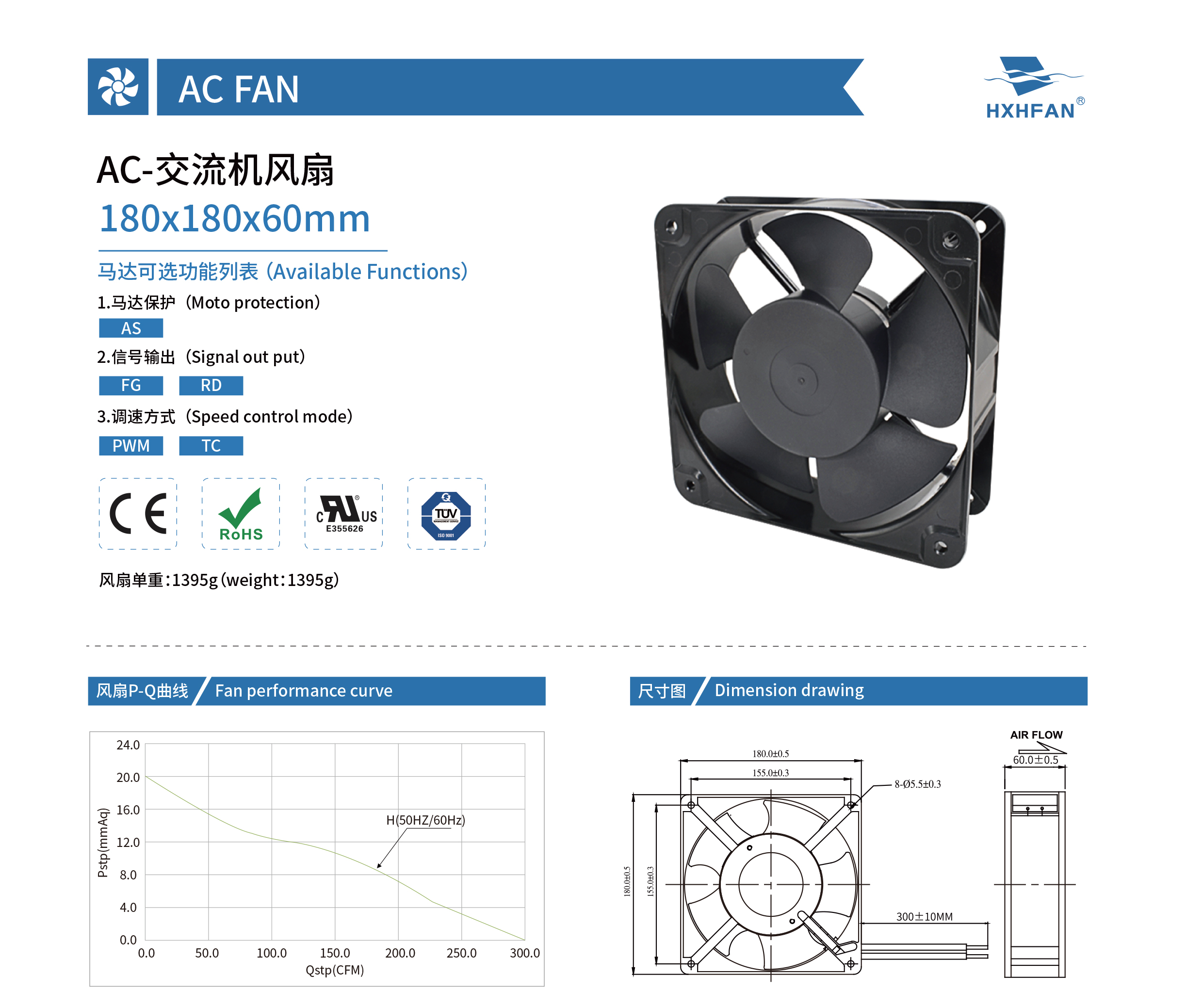

| 180*180*60MM | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB180110H60 | W/T | Ball | 110 | 100-125 | 50/60 | 0.70 | 2600 | 8.49 | 300 | 20 | 0.79 | 65 |
| HAB180220H60 | W/T | Ball | 220 | 200-240 | 50/60 | 0.35 | 2600 | 8.49 | 300 | 20 | 0.79 | 65 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
