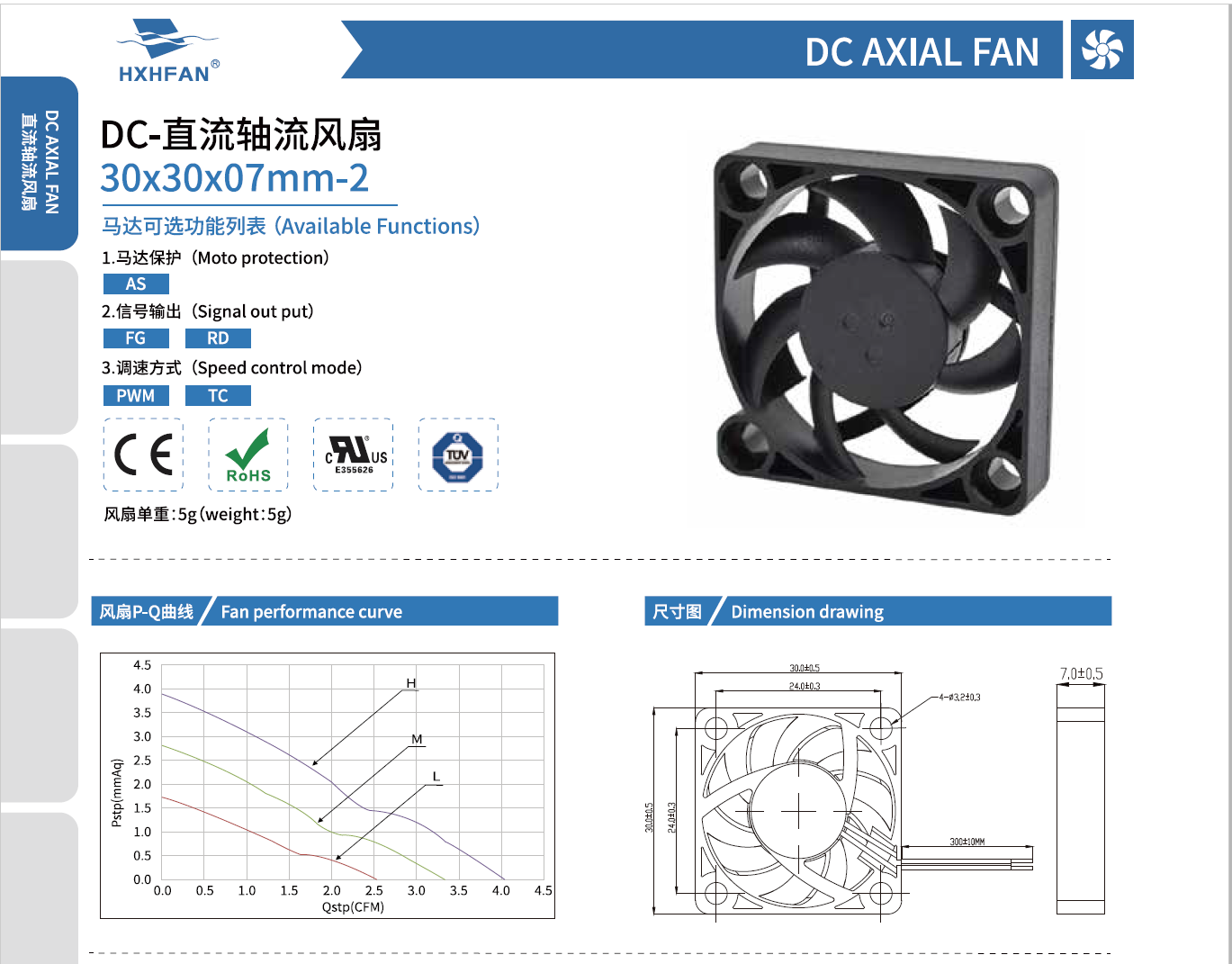

| 30×30×07mm-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0305HQ-2 | Hydraulic | 5 | 4.5 | 0.13 | 0.65 | 9000 | 0.12 | 4.16 | 4.23 | 0.17 | 31.2 | |
| HDH0305HQ-2 | 0.10 | 0.50 | 7500 | 0.09 | 3.29 | 2.64 | 0.10 | 26.5 | ||||
| HDH0305MQ-2 | 0.06 | 0.30 | 6000 | 0.07 | 2.63 | 1.69 | 0.07 | 21.0 | ||||
| HDH0305LQ-2 | 0.04 | 0.20 | 4000 | 0.05 | 1.75 | 0.75 | 0.03 | 10.5 | ||||
| HDH0312UQ-2 | 12 | 9.5 | 0.06 | 0.72 | 9000 | 0.12 | 4.16 | 4.23 | 0.17 | 31.2 | ||
| HDH0312HQ-2 | 0.04 | 0.48 | 7500 | 0.09 | 3.29 | 2.64 | 0.10 | 26.5 | ||||
| HDH0312MQ-2 | 0.03 | 0.36 | 6000 | 0.07 | 2.63 | 1.69 | 0.07 | 21.0 | ||||
| HDH0312LQ-2 | 0.03 | 0.36 | 4000 | 0.05 | 1.75 | 0.75 | 0.03 | 10.5 | ||||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
