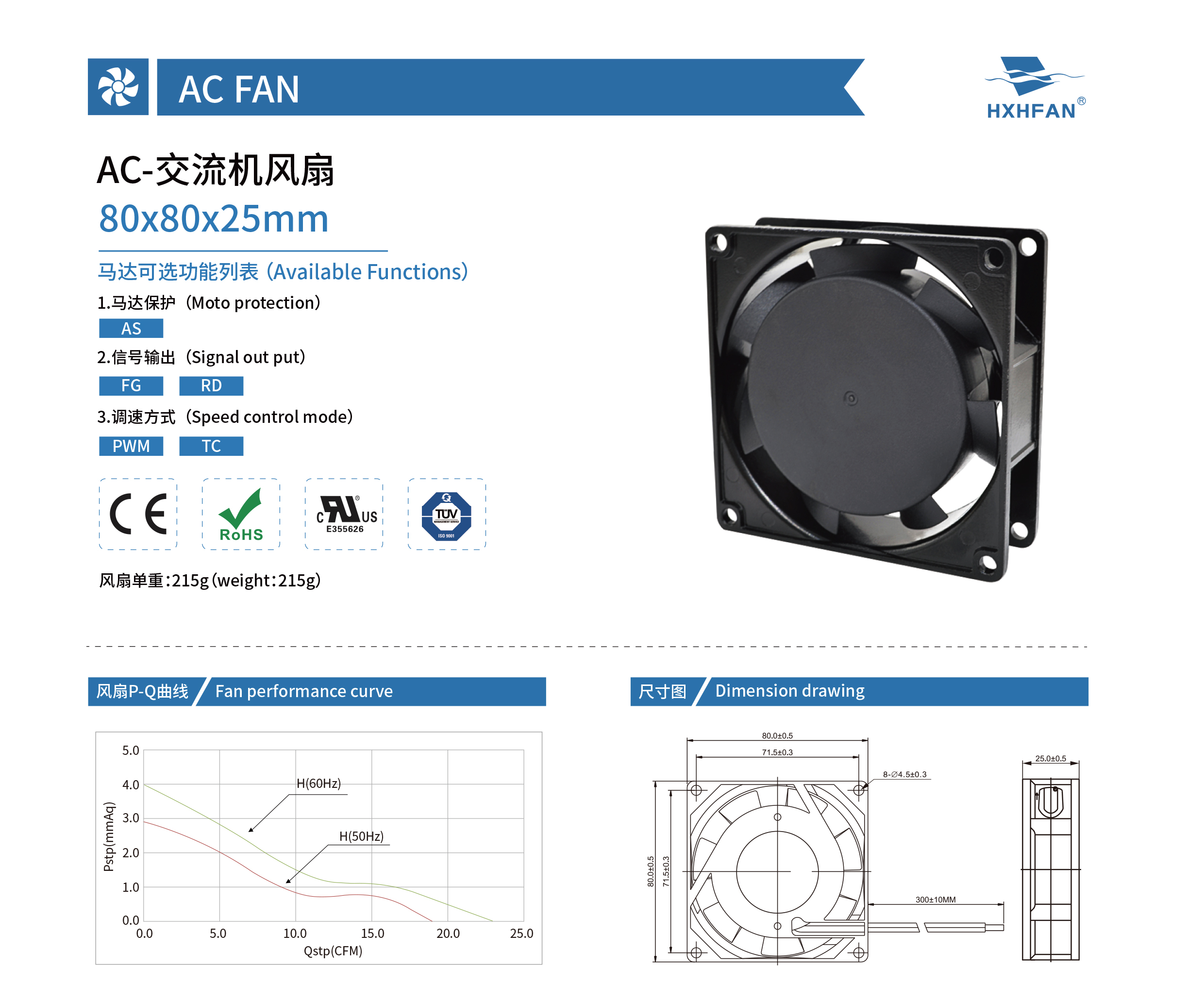

| 80×80×25mm | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAS08110HA | W/T | Sleeve | 110 | 100-125 | 50/60 | 0.11/0.10 | 2300/2700 | 0.54/0.65 | 19/23 | 2.9/4.0 | 0.11/0.16 | 36/38 |
| HAS08110MA | W/T | 100-125 | 50/60 | 0.13/0.12 | 1700/2200 | 0.40/0.51 | 14/18 | 1.8/2.9 | 0.07/0.11 | 30/35 | ||
| HAB08110HA | W/T | Ball | 100-125 | 50/60 | 0.11/0.10 | 2300/2700 | 0.54/0.65 | 19/23 | 2.9/4.0 | 0.11/0.16 | 36/38 | |
| HAB08110MA | W/T | 100-125 | 50/60 | 0.13/0.12 | 1700/2200 | 0.40/0.51 | 14/18 | 1.8/2.9 | 0.07/0.11 | 30/35 | ||

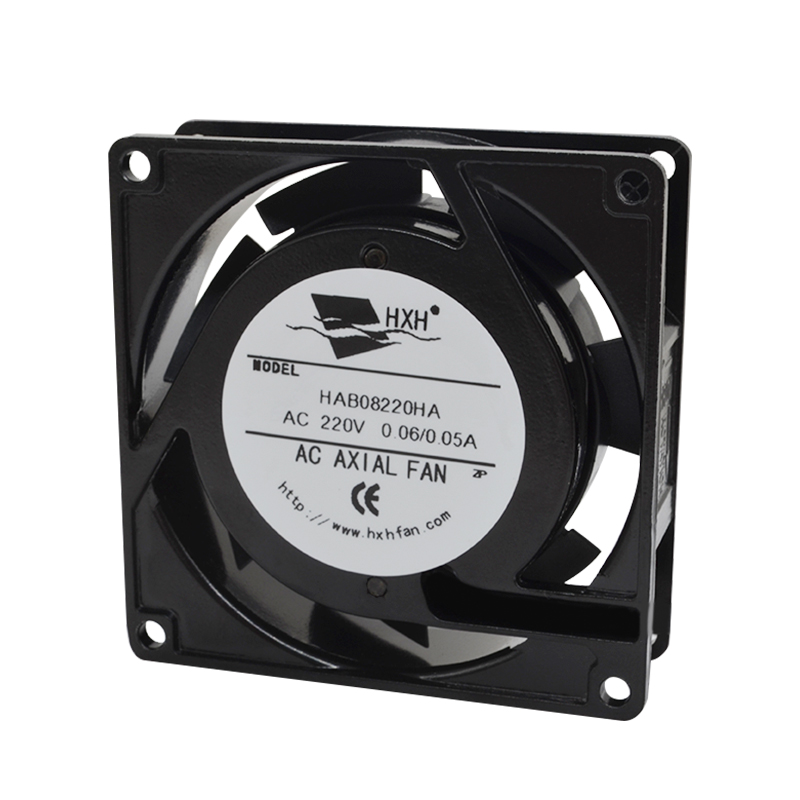

| HAS08220HA | W/T | Sleeve | 220 | 200-240 | 50/60 | 0.06/0.05 | 2300/2700 | 0.54/0.65 | 19/23 | 2.9/4.0 | 0.11/0.16 | 36/38 |
| HAS08220MA | W/T | 200-240 | 50/60 | 0.07/0.06 | 1700/2200 | 0.40/0.51 | 14/18 | 1.8/2.9 | 0.07/0.11 | 30/35 | ||
| HAB08220HA | W/T | Ball | 200-240 | 50/60 | 0.06/0.05 | 2300/2700 | 0.54/0.65 | 19/23 | 2.9/4.0 | 0.11/0.16 | 36/38 | |
| HAB08220MA | W/T | 200-240 | 50/60 | 0.07/0.06 | 1700/2200 | 0.40/0.51 | 14/18 | 1.8/2.9 | 0.07/0.11 | 30/35 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
