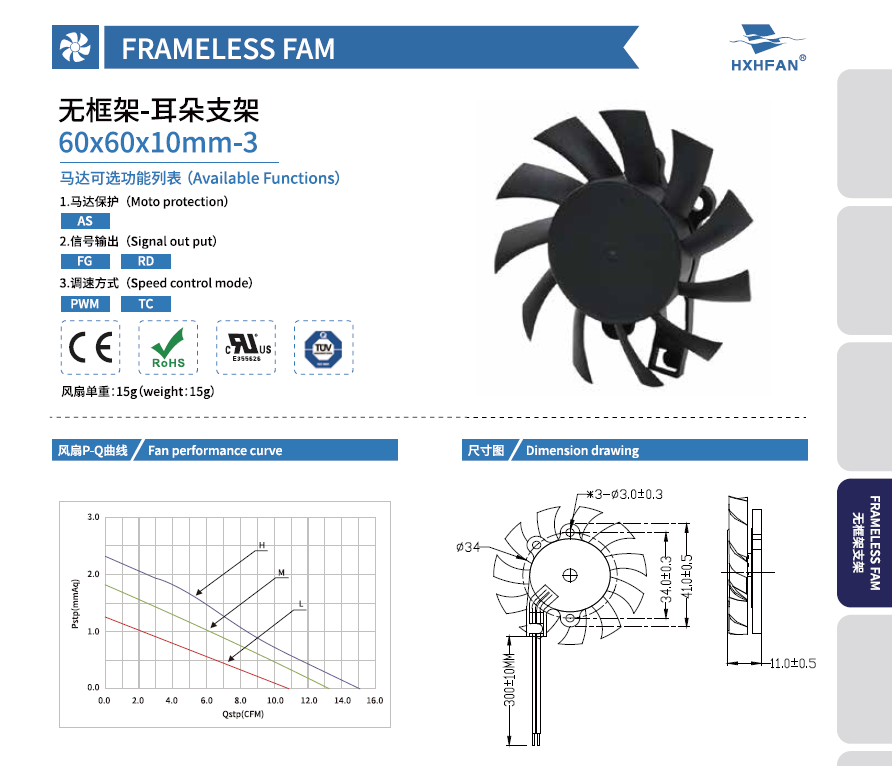

| 60x60x10mm-2 | |||||||||||||
| Frame Size(mm) | Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| 60x60x10mm-3 | HYB0612HG-3 | Sleeve /Bal | 12 | 6.0 | 0.22 | 2.64 | 4000 | 0.43 | 15.09 | 2.31 | 0.09 | 29.2 | |
| HYB0612MG-3 | 6.0 | 0.18 | 2.16 | 3500 | 0.38 | 13.29 | 1.81 | 0.07 | 26.8 | ||||
| HYB0612LG-3 | 6.0 | 0.16 | 1.92 | 3000 | 0.31 | 10.84 | 1.26 | 0.05 | 23.0 | ||||
