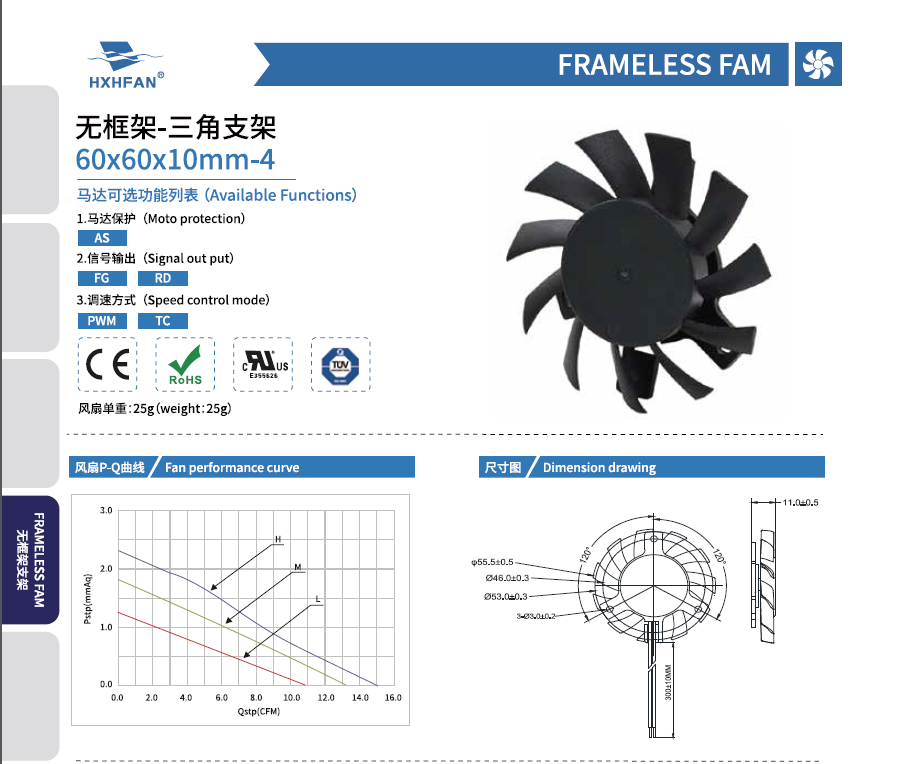

| 60×60×10MM-4 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH0612HG-4 | Hydraulic | 12 | 6.0 | 0.22 | 2.64 | 4000 | 0.43 | 15.09 | 2.31 | 0.09 | 29.2 | |
| HYH0612MG-4 | 6.0 | 0.18 | 2.16 | 3500 | 0.38 | 13.29 | 1.81 | 0.07 | 26.8 | |||
| HYH0612LG-4 | 6.0 | 0.16 | 1.92 | 3000 | 0.31 | 10.84 | 1.26 | 0.05 | 23.0 | |||
| HYB0612HG-4 | Ball | 6.0 | 0.22 | 2.64 | 4000 | 0.43 | 15.09 | 2.31 | 0.09 | 29.2 | ||
| HYB0612MG-4 | 6.0 | 0.18 | 2.16 | 3500 | 0.38 | 13.29 | 1.81 | 0.07 | 26.8 | |||
| HYB0612LG-4 | 6.0 | 0.16 | 1.92 | 3000 | 0.31 | 10.84 | 1.26 | 0.05 | 23.0 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
