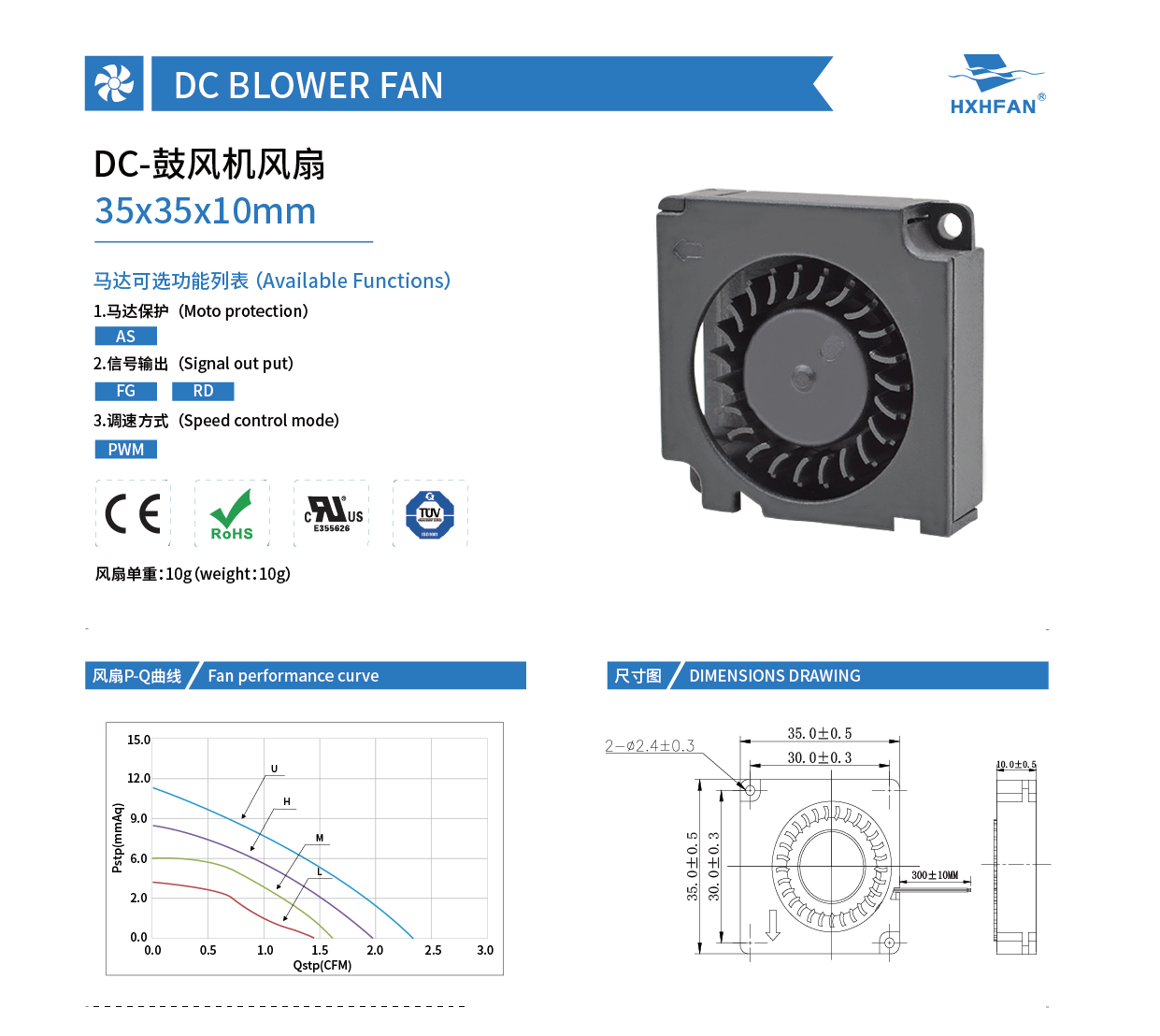

| 35*35*10MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH3505UG-1 | Hydraulic | 5 | 4.0 | 0.15 | 0.75 | 8500 | 0.07 | 2.35 | 11.32 | 0.45 | 30.9 | |
| HBH3505HG-1 | 4.0 | 0.11 | 0.55 | 7500 | 0.06 | 1.98 | 8.52 | 0.34 | 28.1 | |||
| HBH3505MG-1 | 4.0 | 0.08 | 0.40 | 6500 | 0.05 | 1.62 | 6.02 | 0.24 | 25.7 | |||
| HBH3505LG-1 | 4.0 | 0.05 | 0.25 | 5500 | 0.04 | 1.46 | 4.21 | 0.17 | 23.0 | |||
| HBB3505UG-1 | Ball | 4.0 | 0.15 | 0.75 | 8500 | 0.07 | 2.35 | 11.32 | 0.45 | 30.9 | ||
| HBB3505HG-1 | 4.0 | 0.11 | 0.55 | 7500 | 0.06 | 1.98 | 8.52 | 0.34 | 28.1 | |||
| HBB3505MG-1 | 4.0 | 0.08 | 0.40 | 6500 | 0.05 | 1.62 | 6.02 | 0.24 | 25.7 | |||
| HBB3505LG-1 | 4.0 | 0.05 | 0.25 | 5500 | 0.04 | 1.46 | 4.21 | 0.17 | 23.0 | |||
| HBH3512UG-1 | Hydraulic | 12 | 6.0 | 0.08 | 0.96 | 8500 | 0.07 | 2.35 | 11.32 | 0.45 | 30.9 | |
| HBH3512HG-1 | 6.0 | 0.72 | 0.72 | 7500 | 0.06 | 1.98 | 8.52 | 0.34 | 28.1 | |||
| HBH3512MG-1 | 6.0 | 0.60 | 0.60 | 6500 | 0.05 | 1.62 | 6.02 | 0.24 | 25.7 | |||
| HBH3512LG-1 | 6.0 | 0.48 | 0.48 | 5500 | 0.04 | 1.46 | 4.21 | 0.17 | 23.0 | |||
| HBB3512UG-1 | Ball | 6.0 | 0.08 | 0.96 | 8500 | 0.07 | 2.35 | 11.32 | 0.45 | 30.9 | ||
| HBB3512HG-1 | 6.0 | 0.72 | 0.72 | 7500 | 0.06 | 1.98 | 8.52 | 0.34 | 28.1 | |||
| HBB3512MG-1 | 6.0 | 0.60 | 0.60 | 6500 | 0.05 | 1.62 | 6.02 | 0.24 | 25.7 | |||
| HBB3512LG-1 | 6.0 | 0.48 | 0.48 | 5500 | 0.04 | 1.46 | 4.21 | 0.17 | 23.0 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
