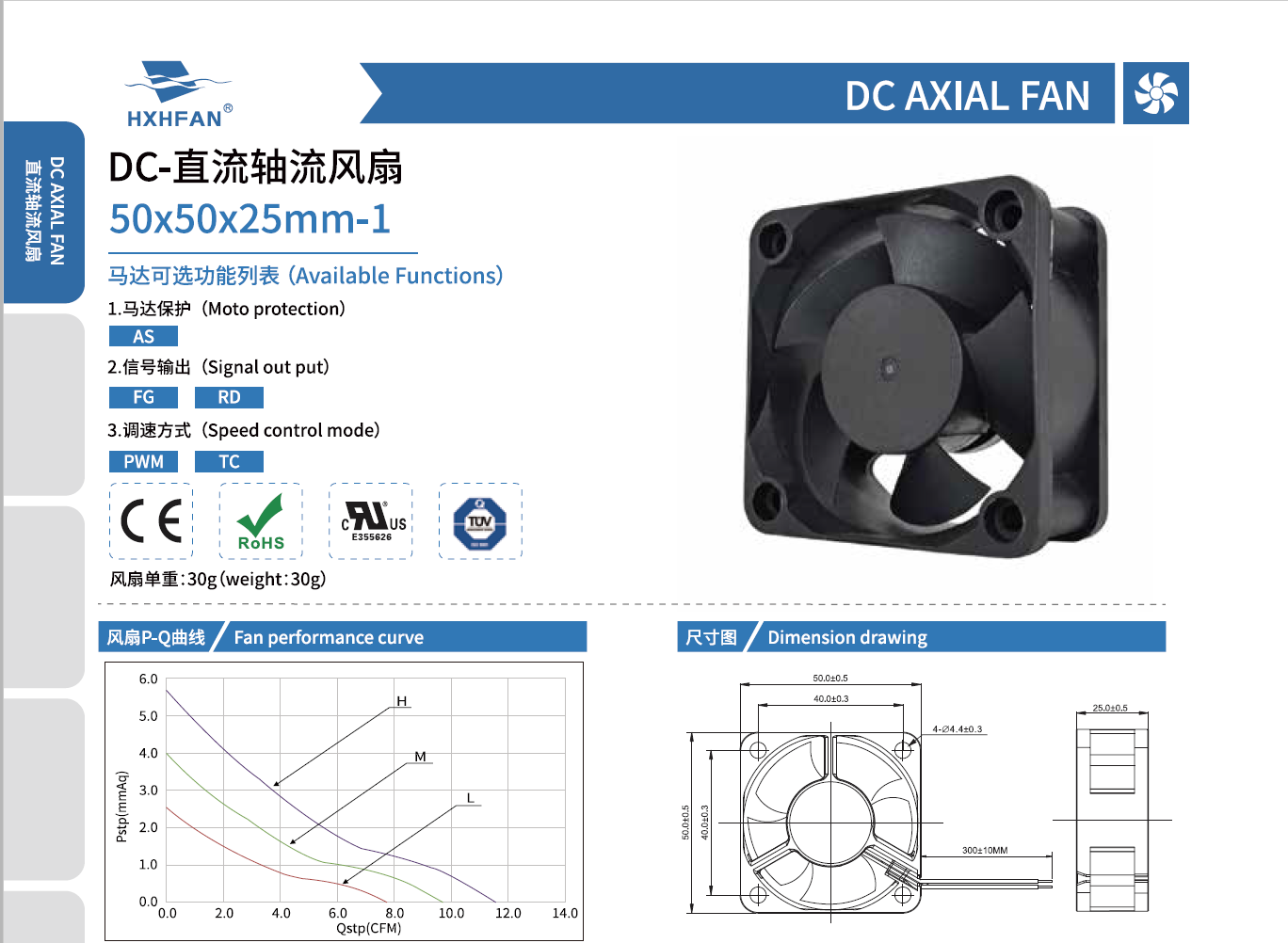

| 50×50×25mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS0512HA | Sleeve | 12 | 7.0 | 0.22 | 2.64 | 6000 | 0.51 | 18.12 | 5.85 | 0.23 | 36.0 | |
| HDS0512MA | 7.0 | 0.16 | 1.92 | 5000 | 0.43 | 15.22 | 4.90 | 0.19 | 29.8 | |||
| HDS0512LA | 7.0 | 0.12 | 1.44 | 4000 | 0.34 | 12.13 | 3.91 | 0.15 | 24.1 | |||
| HDB0512HA | Ball | 7.0 | 0.22 | 2.64 | 6000 | 0.51 | 18.12 | 5.85 | 0.23 | 36.0 | ||
| HDB0512MA | 7.0 | 0.16 | 1.92 | 5000 | 0.43 | 15.22 | 4.90 | 0.19 | 29.8 | |||
| HDB0512LA | 7.0 | 0.12 | 1.44 | 4000 | 0.34 | 12.13 | 3.91 | 0.15 | 24.1 | |||
| HDS0512HA | Sleeve | 24 | 12.0 | 0.17 | 4.08 | 6000 | 0.51 | 18.12 | 5.85 | 0.23 | 36.0 | |
| HDS0512MA | 12.0 | 0.11 | 2.64 | 5000 | 0.43 | 15.22 | 4.90 | 0.19 | 29.8 | |||
| HDS0512LA | 12.0 | 0.09 | 2.16 | 4000 | 0.34 | 12.13 | 3.91 | 0.15 | 24.1 | |||
| HDB0512HA | Ball | 12.0 | 0.17 | 4.08 | 6000 | 0.51 | 18.12 | 5.85 | 0.23 | 36.0 | ||
| HDB0512MA | 12.0 | 0.11 | 2.64 | 5000 | 0.43 | 15.22 | 4.90 | 0.19 | 29.8 | |||
| HDB0512LA | 12.0 | 0.09 | 2.16 | 4000 | 0.34 | 12.13 | 3.91 | 0.15 | 24.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
