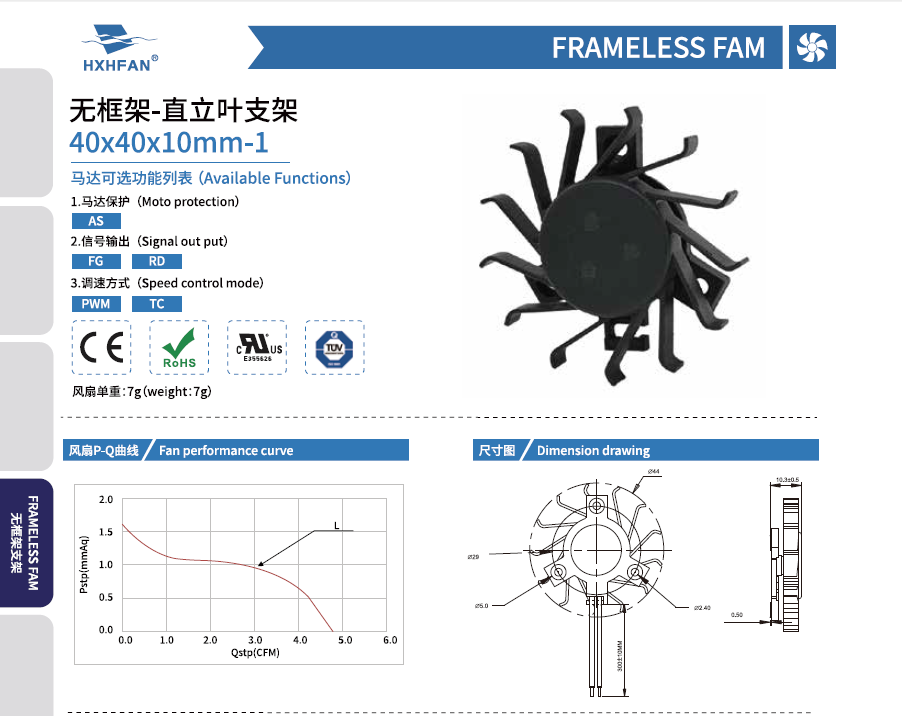

| 40×40×10MM-1(直立叶） | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYS0412LG-1 | Sleeve | 12 | 9.0 | 0.07 | 0.84 | 4000 | 0.14 | 4.81 | 1.62 | 0.06 | 16.8 | |
| HYB0412LG-1 | Ball | 9.0 | 0.07 | 0.84 | 4000 | 0.14 | 4.81 | 1.62 | 0.06 | 16.8 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
